MP571 MP572 Tissue Faced Stone Mineral Wool Slab

Verified by manufacturer 8 days ago

Mayplas
Jump to:
+44 (0)161 447 8320 Website

Application

Designed to prevent fibre migration in locations where stone mineral wool is applied as insulation.

Description

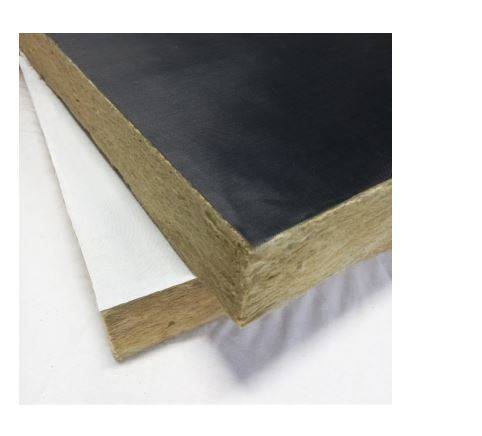

MP571 (white) and MP572 (black) consist of a tissue faced stone mineral wool slab manufactured in a variety of densities and thickness to customer order. The tissue facing assists in preventing fibre migration applied to one face or both faces. When used above perforated ceiling panels it can also help eliminate shadow gap.

CFC and HCFC free. Zero ODP and GWP.

General information

Color

Black

White

Finish

Glass tissue

Material

Mineral wool

Shape

Rectangle

Length

1200 mm

Width

600 mm

Uniclass

Pr_25_57_06_56 Mineral wool slab insulationPrimary

CAWS

K45/425 Insulation

P10/240 Insulation fitted between floor joists

K40/55 Insulation

Specification data - Mineral wool slab insulation

Thickness

-

Manufacturer guidance

Bespoke, available from 10–200 mm. Insert requirements.

Edges

Square.

Density

45 kg/m³.
60 kg/m³.
80 kg/m³.
140 kg/m³.
100 kg/m³.

Thermal conductivity (maximum)

0.035 W/mK.
0.037 W/mK.
0.034 W/mK.

Fire performance

Class A1.

Water permeability

MU1.

Size:

600 x 1200 mm.

Sustainability data

Material

Mineral wool

Literature

Mayplas MP571 MP572 Tissue Faced Stone Mineral Wool Slab - Technical Data Sheet

Mayplas MP571 MP572 Tissue Faced Stone Mineral Wool Slab - Technical Data Sheet
