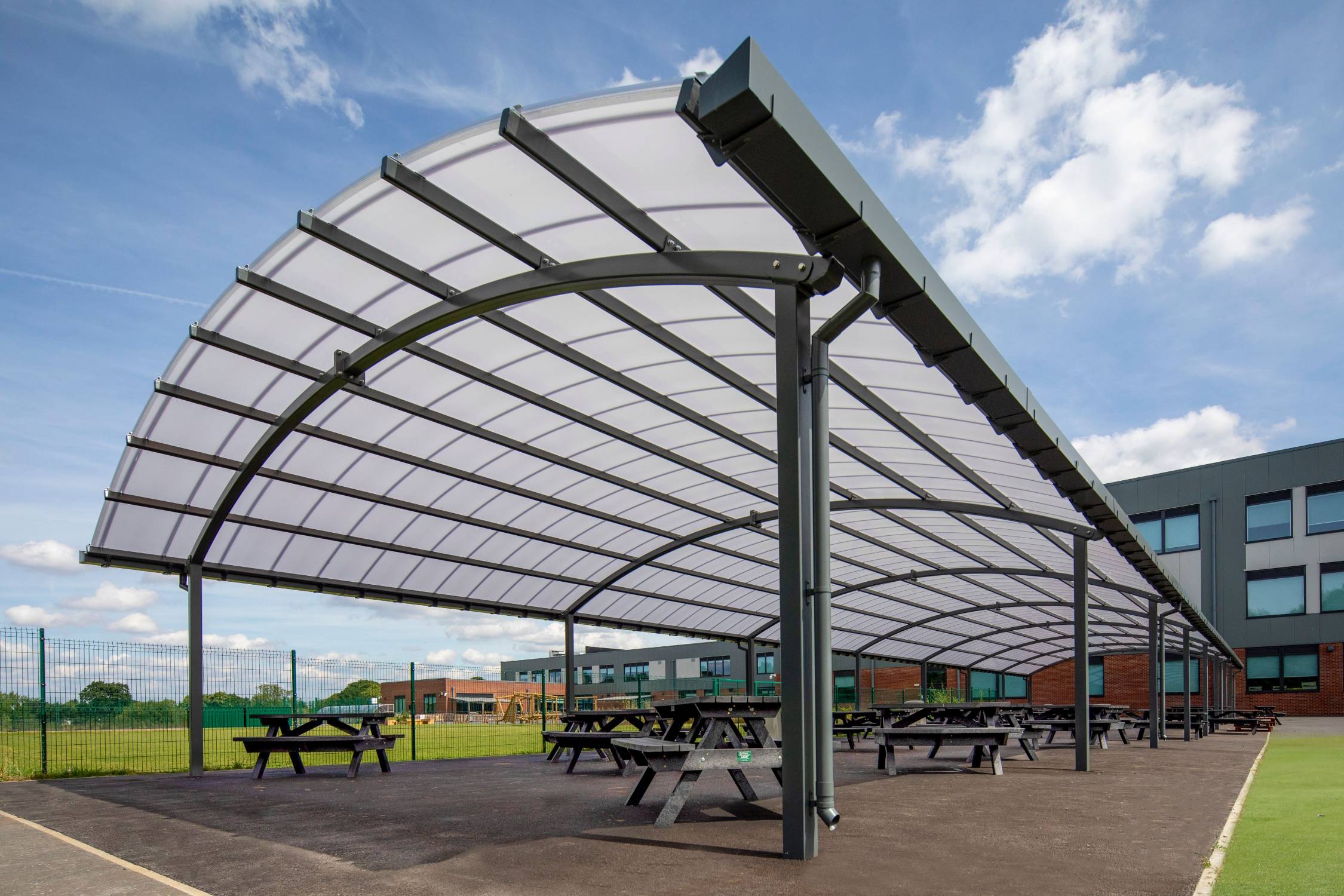

The Motiva Duo™ is a popular curved roof polycarbonate canopy, ideal for creating outdoor seating and dining areas for schools. Free drawing service available - contact us for more details.
Application
A&S Landscape are the UK's leading canopy manufacturer, offering a wide range of shelters, canopies and shade sails.
Typical applications of the Motiva Duo™ canopy include:
- Outdoor dining and recreational areas
- Plazas
- Schools
- Colleges
- Universities
- Outdoor play
- Outdoor learning
- Hospitals & healthcare settings
Description
The Motiva Duo™ is a striking symmetrical curved roof canopy. Expertly designed and easy on the eye, it boasts a barrel vault roof manufactured using quality polycarbonate. The Motiva Duo™ canopy offers protection from the elements and is suitable for alfresco dining, covered walkways and outdoor learning and play.
Features and benefits:
- Solid steel framework with aluminium guttters as standard.
- Galvanised and powder-coated steelwork to any RAL colour.
- Symmetrical barrel vault polycarbonate roof using a unique clean roof system.
- Wide range of sizes and bespoke widths available.
- Longest guarantees on the market.
- Bespoke designs available to add side panels, windows and doors to create an enclosed space.
- All year-round product.
General information
Color | White Yellow Brown Red Grey |
Finish | Galvanized Powder-coated Other Guidance for specification option: Dura-coat™. |
Material | Steel Polycarbonate |
Shape | Other Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year |
Uniclass | |
CAWS | B91/420 Waiting shelter B91/335 Covered walkway B91/330 Canopy B91/385 Shelter |
Product range |
Specification data - Open-sided shelters
Description | Polycarbonate canopy. |
Manufacturer | A&S Landscape. |
Shelter description | Symmetrical curved roof canopy. |
Dimensions | |
Plan size | Length x 5000 mm.Guidance for specification option: Consult manufacturer and insert requirements.
|
Height | Manufacturer guidanceConsult manufacturer and insert requirements. Almost any height is achievable, call 01743 444100 with any queries. |
Frame | |
Material | Structural steel. |
Finish | Galvanized.Dura-coat™.Powder coated. |
Colour | Other.Guidance for specification option: Any RAL colour available. Consult manufacturer and insert requirements. Galvanized steel.Guidance for specification option: Galvanized finish. White (9010) (RAL 9010).Guidance for specification option: Dura-coat™ finish. Signal Yellow (RAL 1003).Guidance for specification option: Dura-coat™ finish. Brown Red (RAL 3011).Guidance for specification option: Dura-coat™ finish. Traffic Red (RAL 3020).Guidance for specification option: Dura-coat™ finish. Squirrel Grey (RAL 7000).Guidance for specification option: Dura-coat™ finish. Ultramarine Blue (RAL 5002).Guidance for specification option: Dura-coat™ finish. Gentian Blue (RAL 5010).Guidance for specification option: Dura-coat™ finish. Sapphire Blue (RAL 5003).Guidance for specification option: Dura-coat™ finish. Slate Grey (RAL 7015).Guidance for specification option: Dura-coat™ finish. Moss Green (RAL 6005).Guidance for specification option: Dura-coat™ finish. Signal Green (RAL 6032).Guidance for specification option: Dura-coat™ finish. Jet Black (RAL 9005).Guidance for specification option: Dura-coat™ finish. |
Roof covering | Polycarbonate roofing. |
Openings | |
Doors | Not required.Required.Guidance for specification option: Various door options available consult manufacturer and insert requirements. |
Rainwater drainage | Not required.Aluminium guttering and downpipes. |
Accessories | Not required.Wall brackets.Wide span beams.CHS uprights.Post pads. |
Roof covering colour options | Transparent. Opal. Manufacturer guidancePolycarbonate colours. |
Side panel | Not required. Required. Guidance for specification option: Consult manufacturer and insert requirements.
|
Installation | Manufacturer's standard. Buried post. Guidance for specification option: Insert requirements for indicative foundation size. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Polycarbonate |
Recyclability | 100% |
Expected Life | 40 year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 2 |
 DWG | - | 1 |
Third party certifications
Constructionline Gold
Constructionline Gold
CHAS
CHAS

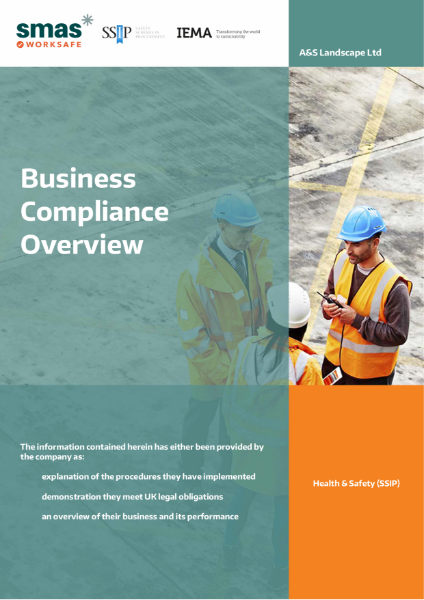

smas WORKSAFE
SMAS
Alcumus SafeContractor
SafeContractor

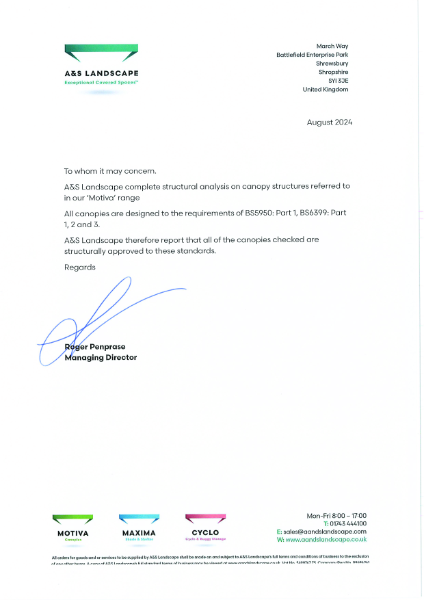

BS EN 1090-1
Confirmation of British Standards
Literature

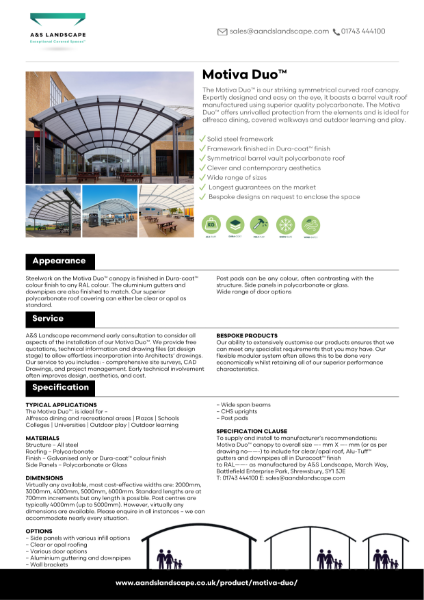

Motiva Duo Data Sheet
Case studies
Co-op Academy Failsworth in Manchester Adds Dining Canopies

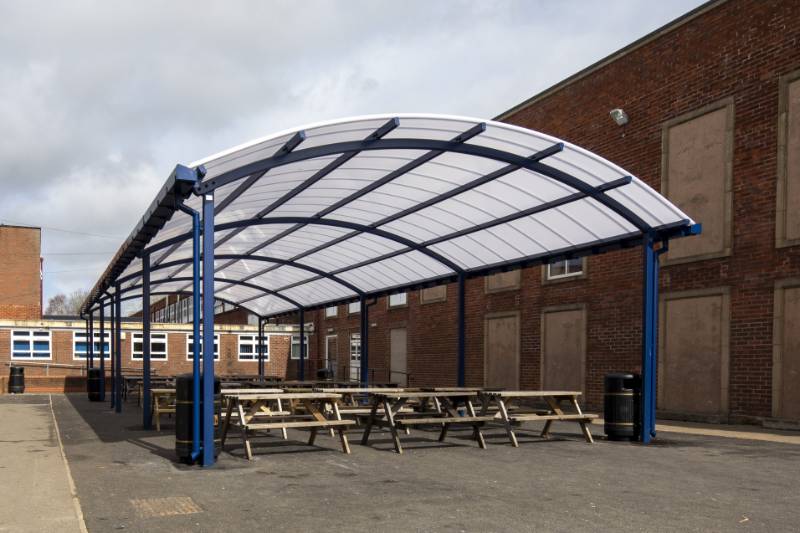

Elfed High School in Flintshire Adds Dining Shelter

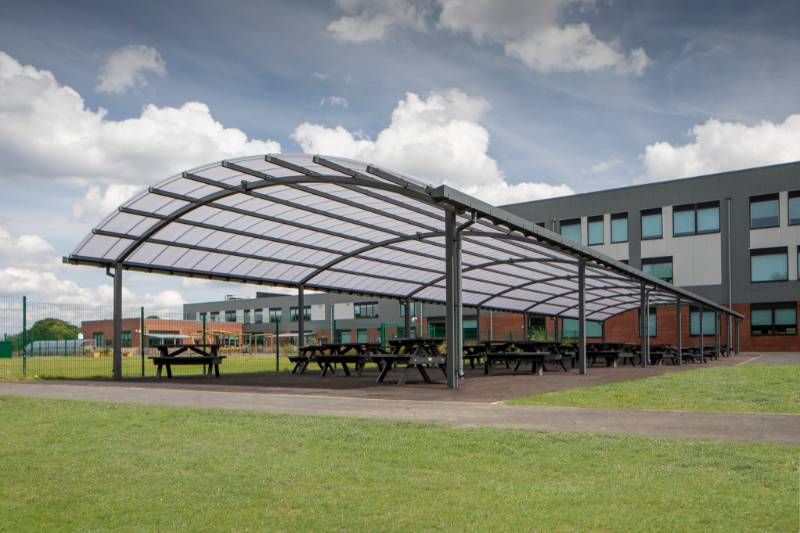

Laurus Cheadle Hulme in Greater Manchester Adds Dining Canopy

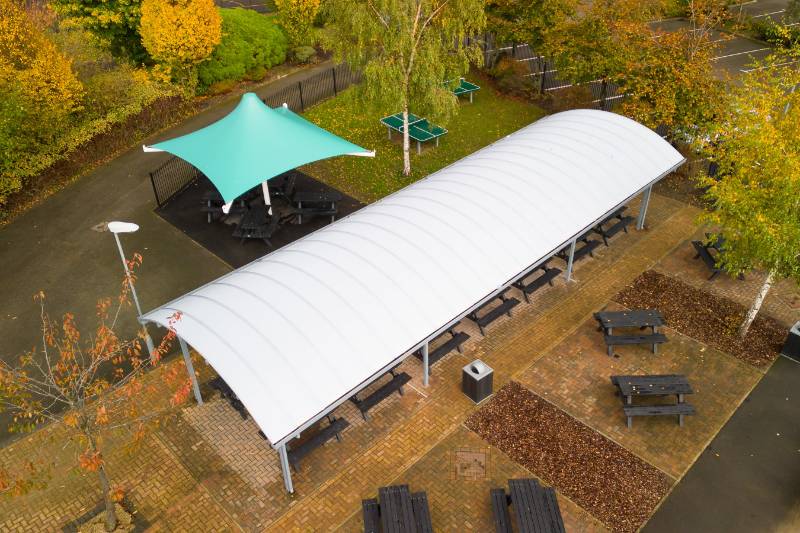

Leeds West Academy in West Yorkshire Adds Three Canopies

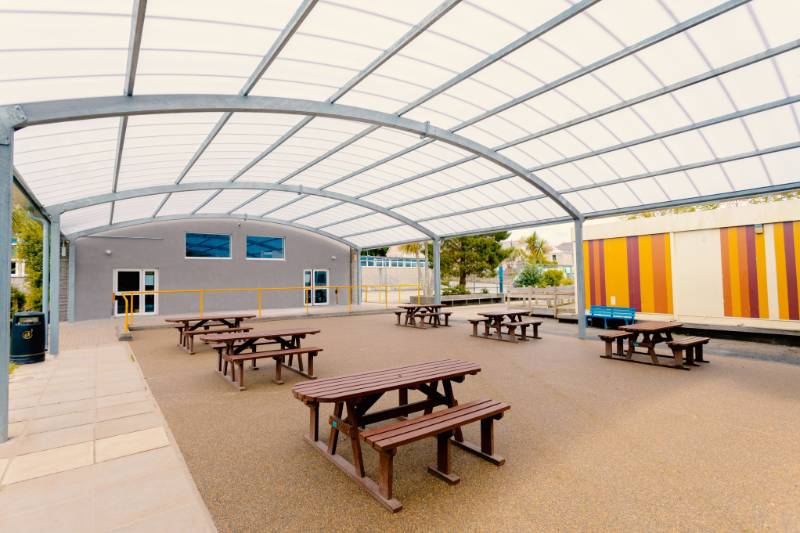

Mounts Bay Academy in Cornwall Installs Dining Shelter

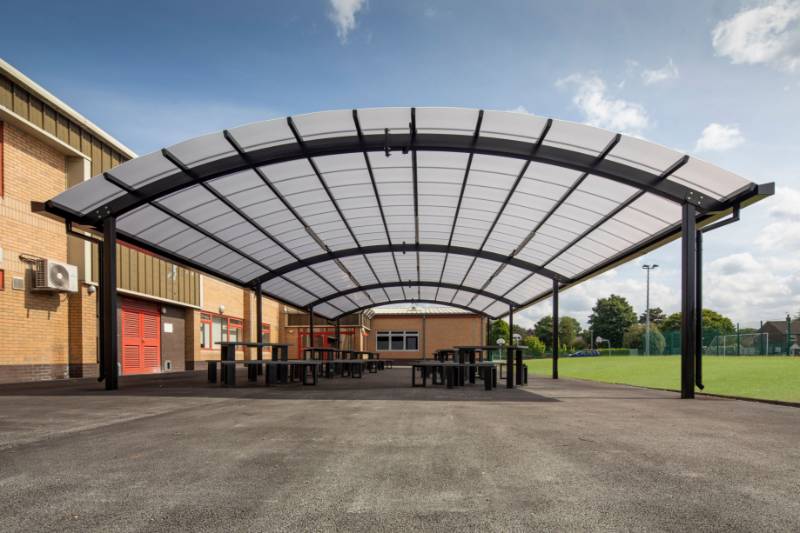

Salford City Academy in Greater Manchester Adds Dining Canopy

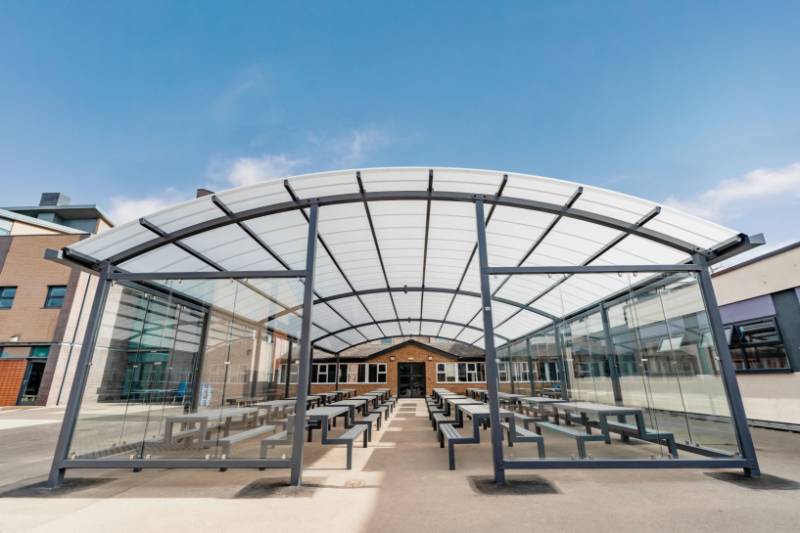

Carmel College in Durham Adds Outdoor Canopies and Benches

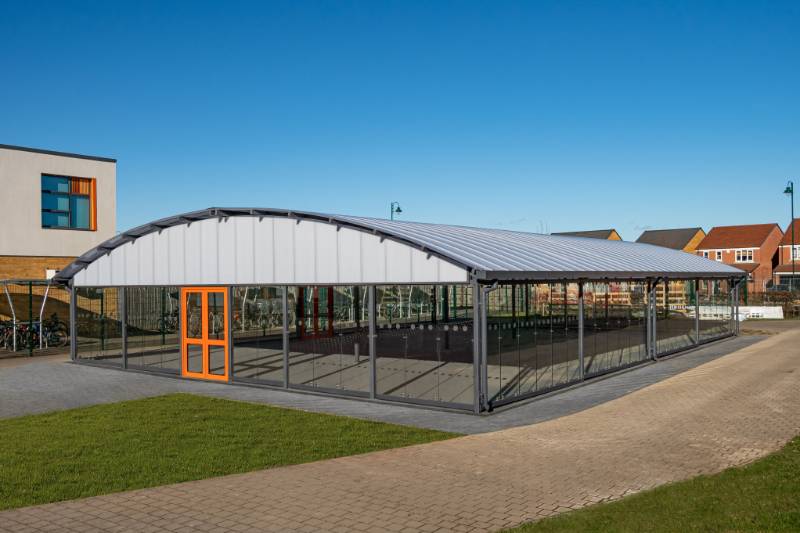

Hampton Gardens School in Cambridgeshire Adds Enclosed Dining Canopy

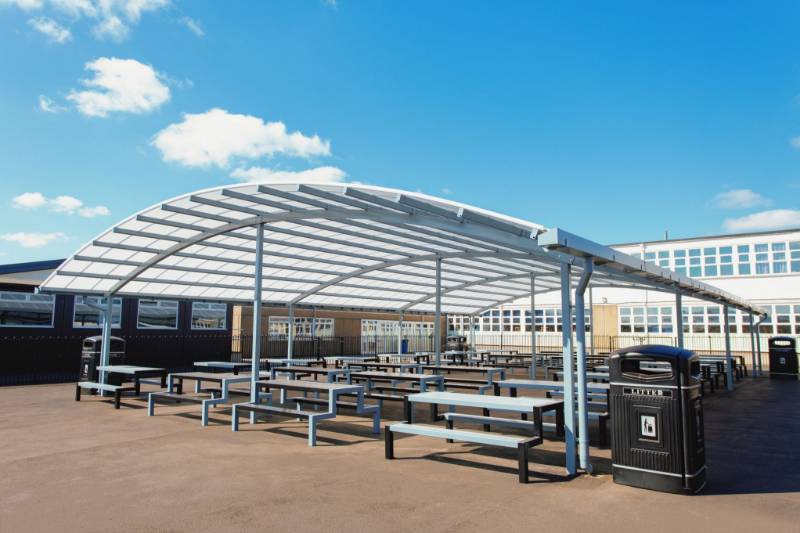

John Taylor High School in Staffordshire Add External Dining Area Canopy

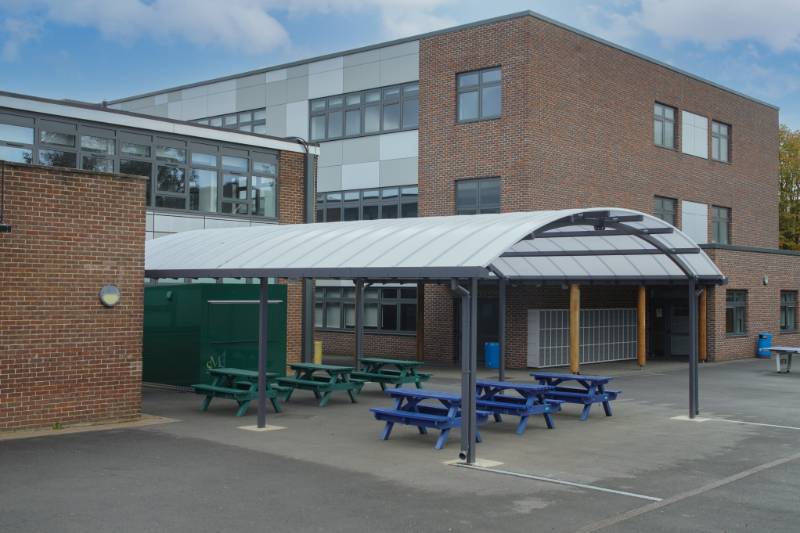

St Mary’s and St John’s CE School in Greater London Finds Dining Canopy

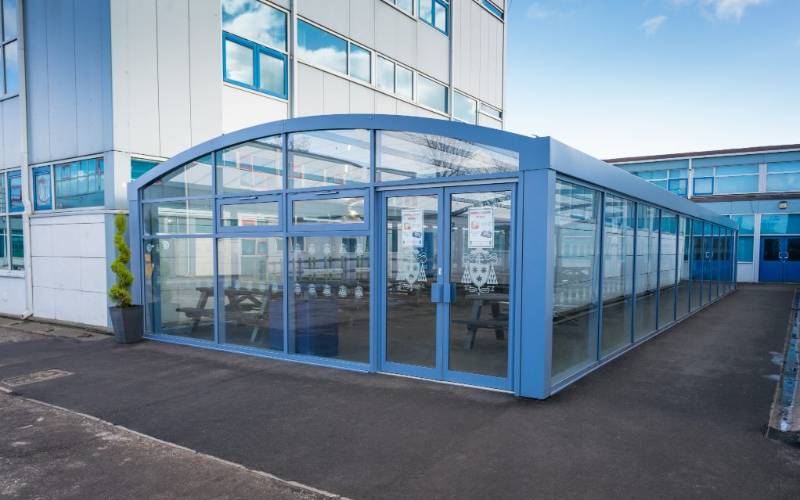

St Wilfrid’s Catholic High School, Pontefract add Enclosed Outdoor Dining Area with Heat and Light
