Cyclo City™ - Cycle Shelter
Verified by manufacturer 3 days ago
Standard Module: 4160 mm (10 Cycles)
Standard Module: 4160 mm (10 Cycles)
Constructionline Gold
Certificate type
CHAS
Certificate type
smas WORKSAFE
Certificate type
Alcumus SafeContractor
Certificate type
BS EN 1090-1
Certificate type

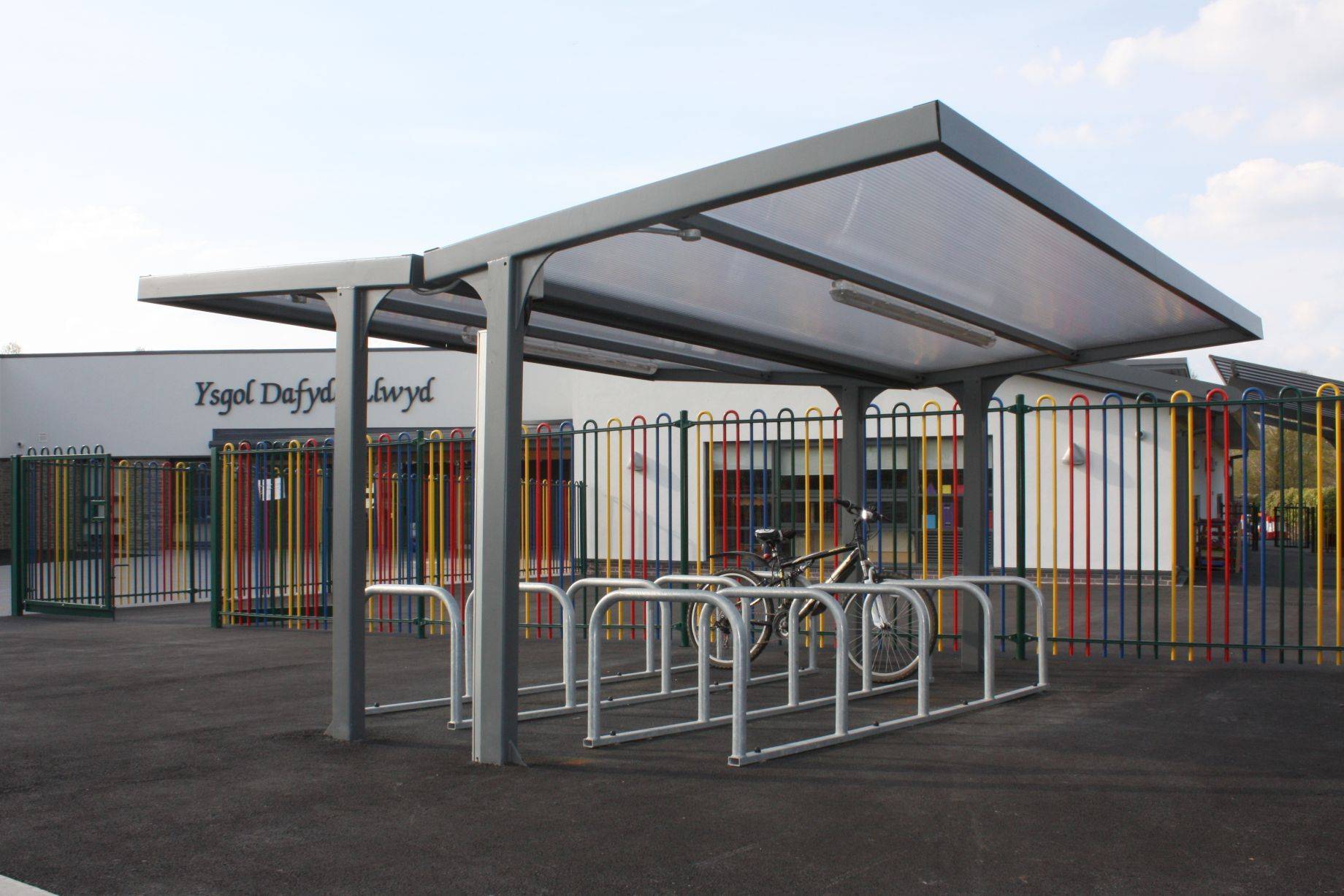

The Cyclo City™ is our robust and hardwearing cycle shelter canopy, designed for schools and colleges in mind. Free drawing service available - contact us for more details.
Application
A&S Landscape are the UK's leading canopy manufacturer, offering a wide range of shelters, canopies and shade sails.
Typical applications of the Cyclo City™ cycle shelter include:
- Schools
- Colleges
- Universities
- Parks and public spaces
- Hospitals
Description
The Cyclo City™ is a robust and hardwearing cycle shelter canopy. With a strong and sturdy steel frame and 35 mm thick roof, this structure is built to last. Its modular nature means it is available in multiple configurations.
Features and benefits:
- Solid steel framework.
- Galvanised and powder-coated steelwork to any RAL colour.
- Contemporary and sleek straight roof design.
- Unbreakable polycarbonate roofing featuring unique 'click-lock' clean roof system.
- Multiple configurations available, including lockable doors and side panel designs.
General information
Color | White Yellow Brown Red Grey |
Finish | Galvanized Other Guidance for specification option: Duracoat™ colour finish to any RAL colour. Powder-coated |
Material | Steel Polycarbonate |
Shape | Other |
Length | Bespoke 4160 mm 8240 mm |
Width | Bespoke 2000 mm |
Height | Bespoke |
Warranty description | 25 year |
Uniclass | |
CAWS | B91/385 Shelter B91/340 Cycle shelter |
Product range |
Specification data - Open-sided shelters
Shelter description | Polycarbonate roof cycle shelter. |
Dimensions | |
Plan size | 4160 x 2000 mm.Guidance for specification option: Standard length (10 cycles) x standard width. |
Height | Guidance for specification option: Consult manufacturer and insert requirements. |
Frame | |
Material | Structural steel. |
Finish | Galvanized.Dura-coat™.Powder-coated. |
Colour | Other.Guidance for specification option: Any RAL colour available. Consult manufacturer and insert requirements. Galvanized steel.Guidance for specification option: Galvanized finish. White (RAL 9010).Guidance for specification option: Dura-coat™ finish. Signal Yellow (RAL 1003).Guidance for specification option: Dura-coat™ finish. Brown Red (RAL 3011).Guidance for specification option: Dura-coat™ finish. Traffic Red (RAL 3020).Guidance for specification option: Dura-coat™ finish. Squirrel Grey (RAL 7000).Guidance for specification option: Dura-coat™ finish. Ultramarine Blue (RAL 5002).Guidance for specification option: Dura-coat™ finish. Gentian Blue (RAL 5010).Guidance for specification option: Dura-coat™ finish. Sapphire Blue (RAL 5003).Guidance for specification option: Dura-coat™ finish. Slate Grey (RAL 7015).Guidance for specification option: Dura-coat™ finish. Moss Green (RAL 6005).Guidance for specification option: Dura-coat™ finish. Signal Green (RAL 6032).Guidance for specification option: Dura-coat™ finish. Jet Black (RAL 9005).Guidance for specification option: Dura-coat™ finish. |
Roof covering | Polycarbonate roofing. |
Accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Roof covering colour options | Transparent. Opal. Manufacturer guidancePolycarbonate colours. |
Edge trim | Aluminium. |
Installation | Bolt down. Root fixed. Buried post. Guidance for specification option: Insert requirements for indicative foundation size. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Polycarbonate |
Recyclability | 100% |
Expected Life | 40 year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 2 |
 DWG | - | 1 |
Third party certifications
Constructionline Gold
Constructionline Gold
CHAS
CHAS
smas WORKSAFE
SMAS
Alcumus SafeContractor
SafeContractor
BS EN 1090-1
Confirmation of British Standards
Literature
Cyclo City Data Sheet
