Morvan Waterstruck Brick Slip
Verified by manufacturer 4 months ago

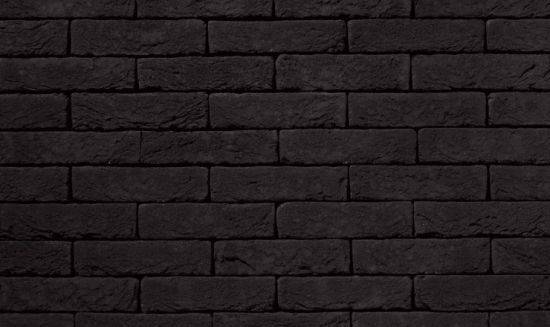

A unicoloured anthracite black clay brick slip, textured without sand coated surface (Water-struck)
Application
For exterior or interior walls.
Description
Base material Westerwald clay, a natural white baking clay of the Westerwald region in the western part of Germany. Due to the use of the water-struck technique the facing bricks will appear textured without a sand coated surface.
Features and benefits:
- Low water absorption.
- Hand formed.
- Aesthetically pleasing.
- Waste-free production process.
- 70% less raw materials.
For more information about Vandersanden and to discover our complete range of specifier solutions, please visit www.vandersanden.com.
Be informed and inspired by the potential of brick to transform your projects. Register for our specifier Inspiration Guide here
Over 1.1 million possibilities!
Create, download and visualise beautiful brick facades with our New Texture Generator here
Stay up to date and discover new trends, techniques, and innovations with our RIBA CPDs here
General information
Color | Black |
Material | Clay |
Shape | Rectangle |
Length | 212 mm |
Width | 20 mm |
Height | 53 mm |
Uniclass | |
CAWS | F10/110 Clay facing brickwork F10/5 Facing brickwork |
Product range |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick |
Appearance | Textured without sand coated face. |
Work size (length x width x height) | 212 x 20 x 53 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Durability designation | F2. |
Density | |
Gross dry | 1880 kg/m³. |
Net dry | 2100 kg/m³. |
Tolerance | D1. |
Water absorption | ≤8% m/md. |
Configuration | Brick slip. |
Thermal conductivity | ≤0.62 W/m·K. |
Water vapour permeability | 50/100 µ. |
Reaction to fire | Class A1. |
ECO corner strip | Required. Not required. |
Jointing | Grey. Joint free. Light grey. Tone-on-tone. White. |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | Belgium |
Recyclability | Recyclable |
