Morvan - Clay Facing Brick
Verified by manufacturer 4 months ago
WF
WF
ISO 14001 Environmental Management Systems
Certificate type

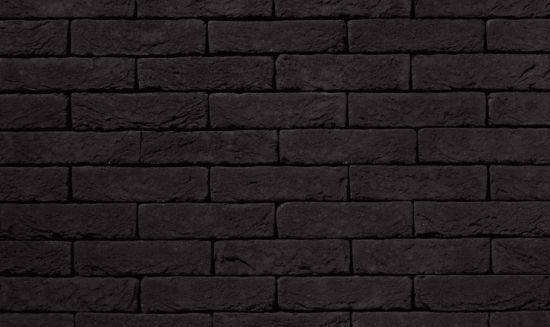

A unicoloured anthracite black clay brick.
Description
A mix of different kinds of clay forms the basis for this facing brick. This special mix of clays is suited for the manufacturing of hand form bricks. By using specific sand types for surface covering, the desired colour is achieved.
Features and benefits:
- Hand formed.
- Single-coloured.
- Five joint styles available.
For more information about Vandersanden and to discover our complete range of specifier solutions, please visit www.vandersanden.com.
Be informed and inspired by the potential of brick to transform your projects. Register for our specifier Inspiration Guide here
Over 1.1 million possibilities!
Create, download and visualise beautiful brick facades with our New Texture Generator here
Stay up to date and discover new trends, techniques, and innovations with our RIBA CPDs here
General information
Color | Black |
Finish | Sanded Coated |
Material | Clay |
Shape | Rectangle |
Length | 214 mm |
Width | 101 mm |
Height | 65 mm |
Uniclass | |
CAWS | F10/110 Clay facing brickwork F10/5 Facing brickwork |
Product range |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Appearance | Anthracite black, with a sanded-coated and grained structure. |
Work size (length x width x height) | 207 x 99 x 50 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | ≥15 N/mm².Guidance for specification option: Normalised Compressive Strength. |
Category | Manufacturer guidanceManufacturer's standard. |
Durability designation | F2. |
Density | |
Gross dry | 1880 kg/m³. |
Net dry | 2050 kg/m³. |
Tolerance | D1. |
Water absorption | ≤10% m/md. |
Configuration | Frogged. |
Recycled content | Manufacturer guidanceManufacturer's standard. |
Thermal conductivity | ≤0.60 W/m.K. |
Thermal resistance | Manufacturer guidanceManufacturer's standard. |
Water vapour permeability | 50/100 µ. |
Bond strength | General, 0.15 N/mm²; Thin layer, 0.30 N/mm². |
Reaction to fire | Class A1. |
Active soluble salts | S2. |
Jointing | Grey. Joint free. Light grey. Tone-on-tone. White. |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | Belgium |
Material | Clay |
Recyclability | Recyclable |
