Morvan - Clay Facing Brick
Description

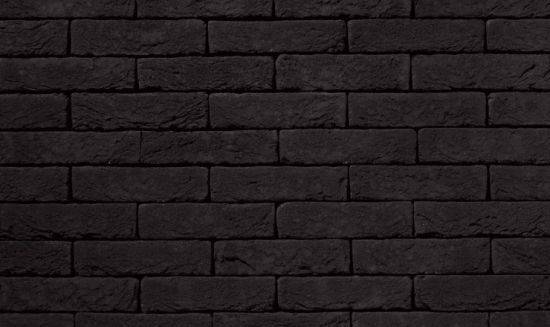

A unicoloured anthracite black clay brick.

A mix of different kinds of clay forms the basis for this facing brick. This special mix of clays is suited for the manufacturing of hand form bricks. By using specific sand types for surface covering, the desired colour is achieved.

General information

Uniclass 2015

Pr_20_93_52_15 Clay bricksPrimary

CAWS

F10/110 Clay facing brickwork

F10/5 Facing brickwork

Specification data - Clay bricks

Product Reference

Morvan

Standard

To BS EN 771-1

Brick description

Facing brick

Appearance

Manufacturers standard

Work size (length x width x height)

215 x 102.5 x 50 mm

WF.

215 x 102.5 x 65 mm

DF.

240 x 90 x 40 mm

LF-4.

Tolerances

-

Mean value

T2

Range

R1

CompressiveStrength

-

Mean compressive strength (minimum)

≥20 N/mm²

Tested to the bed face.

Category

Manufacturer's standard

Durability designation

F2

Density

-

Gross dry

1880 kg/m³

Net dry

2050 kg/m³

Tolerance

D1

Water absorption

≤10% m/md

Configuration

Consult manufacturer

Recycled content

Manufacturer's standard

ThermalConductivity

≤0.60 W/m·K – Lambda 50/50

Thermal resistance

Manufacturer's standard

Water vapour permeability

50/100

Bond strength

Manufacturer's standard

Reaction to fire

Class A1

Active soluble salts

S2

Jointing

Grey

Jointless

Light grey

Tone-on-tone

White

Standard product features

Moulding method:

Hand formed.

Environmental information

Recycled content

Manufacturer's standard

Literature
Third party certifications
  • CE marked
