Moralt FERRO FireSafe Passiv 98 mm - Door Blank

Verified by manufacturer 6 months ago

James Latham

Fire resistant door blanks.

Jump to:
+44 (0) 207 288 6417 Website

Application

Suitable for external doors.

Description

98 mm thick, FERRO FireSafe Passiv house door blanks for fire resistant external doors.


Features and benefits:

  • Reaches the required values for low-energy and Passive houses with the Passive house-certificate.
  • CE marked.
  • Five-ply faces.
  • Lock-side patented flat steel stabilizer – thermally separated and sound insulated – to absorb tractive and shearing forces. Stabilizers are glued and friction-locked with the framework.
  • Laminated core.
  • FD30 or FD60 fire rating in accordance with BS 476-22.

General information

Color

Brown

Finish

Sanded

Material

Pine

Medium density fibreboard (MDF)

Timber

Shape

Rectangle

Width

1230 mm

Height

2110 mm

2240 mm

2370 mm

2470 mm

Uniclass

Pr_30_59_23_97 Wood flush door leavesPrimary

CAWS

L20/230 Wood flush doors

L20/20 Wood flush doors

Specification data - Wood flush door leaves

Standard

To EN 14351-1.

Format

Single-leaf, single-action.

Thickness

98 mm.

Door leaf size

2110 x 1230 mm.

2240 x 1230 mm.

2370 x 1230 mm.

2470 x 1230 mm.

Performance

-

Fire resistance

-

Insulation

To BS 476-22, 30 minutes.

To BS 476-22, 60 minutes.

Guidance for specification option:

Only available with Oak frames.

Thermal

To EN ISO 10077-2:2012-06, 0.76 W/m²K.

Door structure

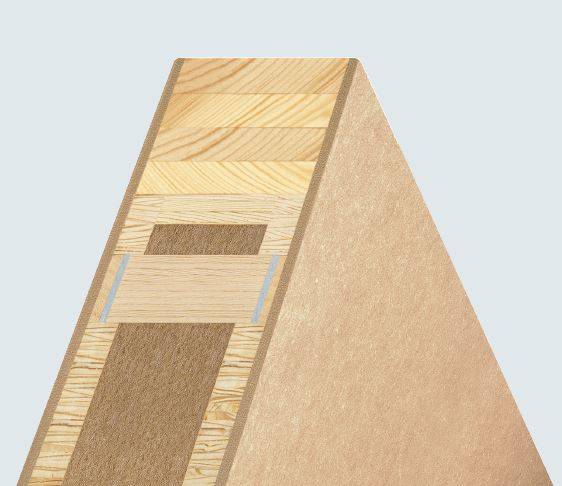

Sandwich construction of laminated core with ecological solid timber insulation.

Facings

Mahogany.

Okoumé/ Gabun.

Meranti.

Oak.

Knotty oak.

Cross-grain knotty oak 3.5 mm.

Rustic knotty oak.

Pine.

Spurce.

Larch.

Knotty larch.

White fir.

Paint-grade.

MDF exterior.

CPL.

Hardware

Flat steel stabilizer.

Guidance for specification option:

Thermally separated and sound insulated – to absorb tractive and shearing forces. Stabilizers are glued and friction-locked with the framework.

Finish

Sanded.

Colour

-

External

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Internal

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Accessories

Not required.

Glass apertures.

Guidance for specification option:

Minimum distance for glass apertures on all four sides: 180 mm. Contact manufacturer for details.

Weight

80 kg.

Framing

Finger-jointed and laminated pine framing.

Bonding

AW bonding according to DIN 68705 -2.

Guidance for specification option:

Five layers (noble veneer, longitudinal).

Manufacturer guidance

Full surface bonding with the overall construction, free of formaldehyde.

Frame width

70 mm.

Guidance for specification option:

The frame width corresponds to the shortening dimension. When trimmed by a maximum at the bottom (10 mm), a single rebate (max. 18 mm) or fitting of drop down seal is possible. Contact manufacturer for details.

Manufacturer guidance

Top/side/bottom.

Burglar resistance

To DIN EN 1627, RC2.

To DIN EN 1627, RC3.

ConstructionToleranceClass

To DIN EN 12219, class 3.
