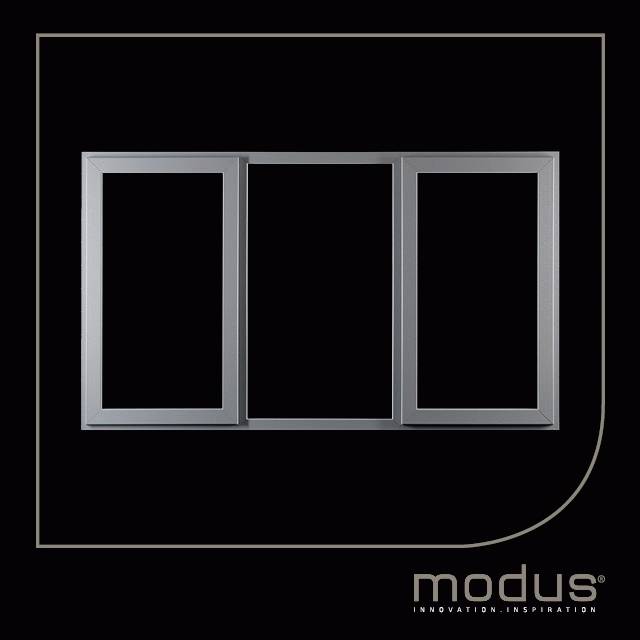

Modus Standard Casement Windows
Verified by manufacturer 1 month ago
Side hung
Side hung
BBA Agrément Certificate
Certificate type
75 mm profile slim rebate sash casement windows.
Application
Suitable for any building project.
Description
Modus is a fully integrated PVC-U window and door system, capable of producing eight different product types from a single system.
Features and benefits:
- It is an innovative 75 mm front-to-back dimension six-chamber design, utilizing dual material extrusion technology (DMET).
- DMET precisely directs 50% virgin and 50% post-consumer recycled PVC-U into the profile simultaneously, with post-consumer material used only in the core of the profile, so finish quality and colour fastness is uncompromised.
- The slim rebate sash option creates a more contemporary aesthetic than traditional PVC-U windows.
- At 7 mm thick, the rebate offers sleek sight lines down the building facade, to complement current architecture. Internally, the sash is fully flush, for clean lines and a premium feel.
General information
Color | Grey White Black Cream Brown |
Finish | Foil Matt Painted Smooth Wood grain |
Material | PVC-U Guidance for specification option: Unplasticized polyvinyl chloride. |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 12 year |
Uniclass | |
CAWS | L10/30 PVC-U windows L10/350 PVC-U windows |
Product range |
Specification data - Unplasticized polyvinyl chloride (PVC-U) window units
Third-party certification | To PAS 24, KM 52187; KM 32821. |
Product performance | |
Safety | |
User design standards | In accordance with BS EN ISO 9001 and BS EN ISO 14001. |
Security level | To PAS 24. |
Thermal | |
British Fenestration Rating Council Window Energy Rating | Manufacturer's standard.Guidance for specification option: Energy efficient windows, achieving BFRC Window Energy Rating (WER) of grades A++, A+, A, B and C. |
Frame | |
Profile | To BS EN 12608.Guidance for specification option: High quality impact resistant white PVC-U extrusion utilizing 50% post-consumer recycled PVC-U, producing a rigid six-chamber profile to BS EN 12608 and manufactured in accordance with BS EN ISO 9001 and BS EN ISO 14001. |
Reinforcement | Steel reinforcement.Manufacturer guidanceReinforcements are not included up to a 1600 Pa weather classification, between 1600–2000 Pa, steel reinforcement is fitted in mullions. |
Colour and texture | Anteak/ White.Guidance for specification option: Standard. Anthracite Grey/ White.Guidance for specification option: Standard. Black Ash/ White.Guidance for specification option: Standard. Cream White/ White.Guidance for specification option: Standard. Irish Oak/ White.Guidance for specification option: Standard. Moondust Grey/ White.Guidance for specification option: Standard. Rosewood/ White.Guidance for specification option: Standard. Slate Grey/ White.Guidance for specification option: Standard. White Ash/ White Ash.Guidance for specification option: Standard. White/ White.Guidance for specification option: Standard. Agate Grey.Guidance for specification option: Architectural. Asphalt (Metallic).Guidance for specification option: Architectural. Crown Platinum (Metallic).Guidance for specification option: Architectural. Quartz Platinum (Metallic).Guidance for specification option: Architectural. Manufacturer guidanceExternal/ internal colours. |
Ventilator | Controllable ventilators.Night ventilators.Permanent ventilators.Overhead ventilators.Manufacturer guidanceControllable or permanent ventilators fitted within the head profile or dedicated overhead ventilators are available as an optional extra. Night vents are also available. |
Glazing or infill | |
Requirements | Guidance for specification option: Refer to whole-window U-value. |
Hardware | Standard hinges and Friction hinges.Guidance for specification option: Maco hardware accredited by ACPO Secured by Design. Other hardware specifications can be provided. Windows fitted with high security hardware meet the requirements of PAS24: 2012. Vents and casements are hinged using friction hinges. All hardware meets the requirements of BS 7412. |
Operation | |
Type | Manual. |
Sill | 85 mm. 125 mm. 150 mm. 180 mm. 225 mm. |
Ironmongery | Espagnolettes. Shootbolts. Manufacturer guidanceLocking and non-locking handles are available in a variety of finishes to complement exterior colours. Windows are fitted with mushroom headed espagnolettes or shootbolts for added security. Both options are available with a night vent facility. |
Accessories | None. Cavalok cavity closer, 100–300 mm. Cavalok head vent. |
Handles | Non-locking handles. Locking handles. |
Width | 400–750 mm. |
Height | 320–1500 mm. |
Type | Double. Guidance for specification option: 28 mm double-glazed insulating unit, glazed internally. U-value: 1.1 W/m²K. Triple. Guidance for specification option: 44 mm triple-glazed insulating unit, glazed internally. U-value: 0.7 W/m²K (With Krypton) U-value: 0.8 W/m2K (With Argon). |
Sustainability data
Country of product manufacture | United Kingdom |
Recyclability | Eurocell Closed-Loop Recycling |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Third party certifications
BBA Agrément Certificate
Charisma BBA Certificate 14/5154
Literature
Modus Colours and Finishes Technical Specification

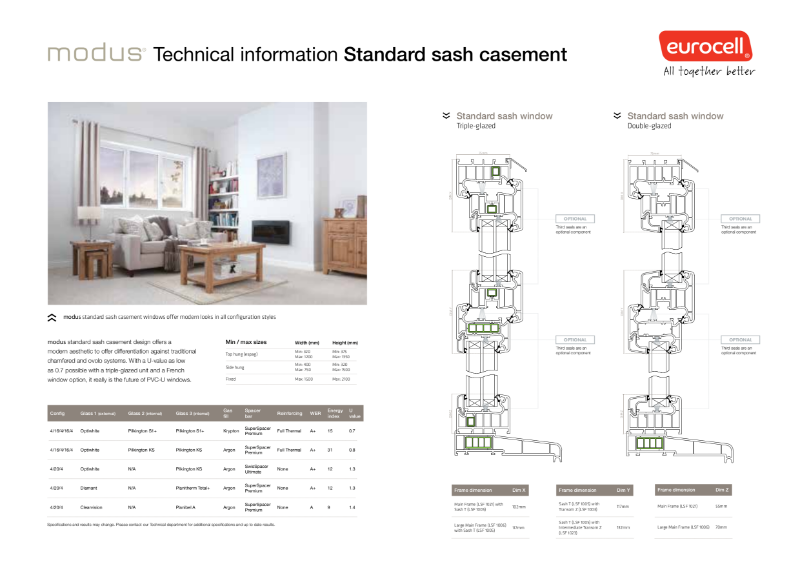

Modus Standard Sash Casement Technical Information
