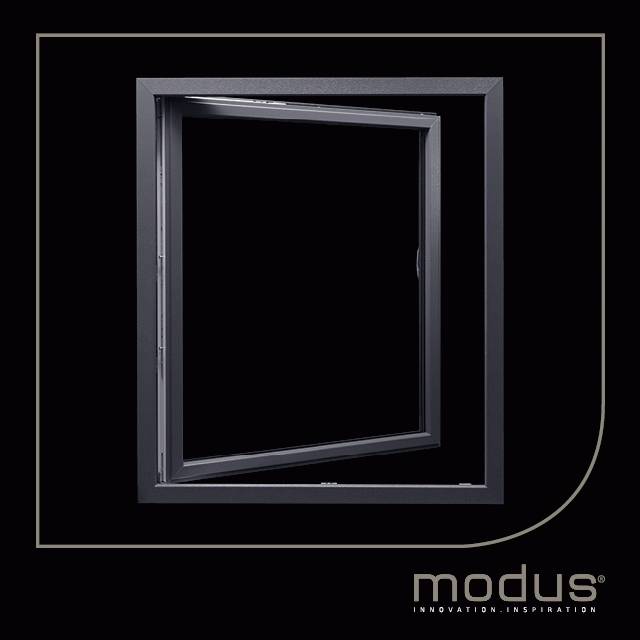

Modus Tilt and Turn Windows

Name: Modus Tilt and Turn Windows
Brand: Eurocell plc
SKU: bnVPow11kPQkJuuWTgBBCn

Verified by manufacturer 1 month ago

Double-glazed insulating unit

Eurocell plc

Third party certifications:

BBA Agrément Certificate
Certificate type

75 mm profile tilt and turn windows.

Jump to:

+44 (0)1773 842100 Website

Application

Residential windows.

Description

Modus is a fully integrated PVC-U window and door system, capable of producing eight different product types from a single system.

Features and benefits:

Modus tilt and turn windows offer a new stepped sash design, which goes one step further than Modus casement windows by creating a 75 mm front-to-back dimension, seven-chamber profile for maximum thermal performance, utilizing dual material extrusion technology (DMET).
DMET precisely directs 50% virgin and 50% post-consumer recycled PVC-U into the profile simultaneously, with post-consumer material used only in the core of the profile, so finish quality and colour fastness is uncompromised.
No steel or aluminum reinforcements are required and an optional third brush pile seal completes the high specification.

General information

Color	Black Cream Grey White Other
Finish	Foil
Material	PVC-U Guidance for specification option: Unplasticized polyvinyl chloride.
Shape	Square
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	12 year

Uniclass	Pr_30_59_98_92 Unplasticized polyvinyl chloride (PVC-U) window unitsPrimary
CAWS	L10/30 PVC-U windows L10/350 PVC-U windows

Product range	Windows

Specification data - Unplasticized polyvinyl chloride (PVC-U) window units

Third-party certification	To PAS 24, KM 52187; KM 32821.
Product performance	-
Safety	-
User design standards	In accordance with BS EN ISO 9001 and BS EN ISO 14001.
Security level	To PAS 24.
Thermal	-
Whole window U-value	1.1 W/m²K.
British Fenestration Rating Council Window Energy Rating	A++, A+, A, B and C. Guidance for specification option: Energy efficient windows, achieving BFRC Window Energy Rating (WER) of grades.
Frame	-
Profile	To BS EN 12608. Manufacturer guidance High quality impact resistant white PVC-U extrusion utilizing 50% post-consumer recycled PVC-U, producing a rigid six-chamber profile to BS EN 12608 and manufactured in accordance with BS EN ISO 9001 and BS EN ISO 14001.
Reinforcement	Steel reinforcement. Guidance for specification option: Reinforcements are not included up to a 1600 Pa weather classification, between 1600–2000 Pa, steel reinforcement is fitted in mullions.

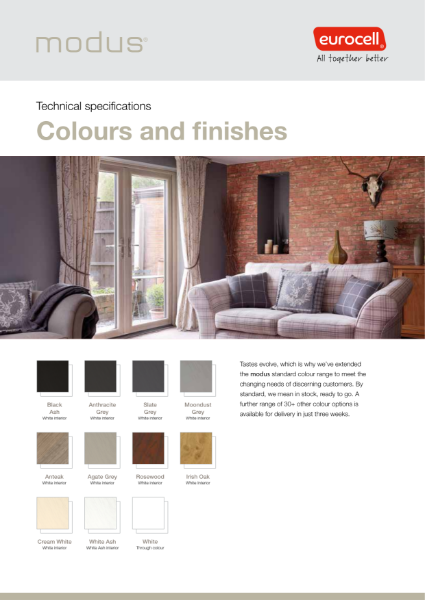

Colour and texture	Anteak/ White. Guidance for specification option: Standard. Anthracite Grey/ White. Guidance for specification option: Standard. Black Ash/ White. Guidance for specification option: Standard. Cream White/ White. Guidance for specification option: Standard. Irish Oak/ White. Guidance for specification option: Standard. Moondust Grey/ White. Guidance for specification option: Standard. Rosewood/ White. Guidance for specification option: Standard. Slate Grey/ White. Guidance for specification option: Standard. White Ash/ White Ash. Guidance for specification option: Standard. White/ White. Guidance for specification option: Standard. Agate Grey. Guidance for specification option: Architectural. Asphalt (Metallic). Guidance for specification option: Architectural. Crown Platinum (Metallic). Guidance for specification option: Architectural. Quartz Platinum (Metallic). Guidance for specification option: Architectural. Manufacturer guidance Internal and External colours.
Ventilator	Permanent ventilators. Controllable ventilators. Night ventilators. Overhead ventilators. Manufacturer guidance Controllable or permanent ventilators fitted within the head profile or dedicated overhead ventilators are available as an optional extra. Night vents are also available.
Hardware	Standard hinges and Friction hinges. Manufacturer guidance Maco hardware accredited by ACPO Secured by Design. Other hardware specifications can be provided. Windows fitted with high-security hardware meet the requirements of PAS 24:2012. Vents and casements are hinged using stainless steel friction hinges. All hardware meets the requirements of BS 7412.
Operation	-
Type	Manual.

Accessories	None. Cavalok cavity closer, 100–300 mm. Cavalok head vent.
Ironmongery	Espagnolettes. Shootbolts. Manufacturer guidance Locking and non-locking handles are available in a variety of finishes to complement exterior colours. Windows are fitted with mushroom headed espagnolettes or shootbolts for added security. Both options are available with a night vent facility.
Sill	85 mm. 125 mm. 150 mm. 180 mm. 225 mm.
Options	Not required. Georgian bars. Leaded glass. Patterned glass.
Handles	Locking handles. Non-locking handles. Manufacturer guidance Locking and non-locking handles are available in a variety of finishes to complement exterior colours.
Type	Double-glazed. Guidance for specification option: Glazed internally.
Thickness	28 mm.

Sustainability data

Country of product manufacture	United Kingdom
Recyclability	Yes - recommend via Eurocell Closed-Loop Recycling
Recycled content As defined in clause 7.8 of BS EN ISO 14021	50 %
