Logik PVC-U Tilt And Turn Windows

Verified by manufacturer 10 days ago

Eurocell plc Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Tilt and Turn windows.

Jump to:
+44 (0)1773 842100 Website

Application

PVC-U Tilt and Turn Windows suitable for any building project.

Description

The advanced tilt-and-turn PVC-U window from Eurocell enables you to provide a stylish, easy-clean window for any building development, giving occupants exceptional ventilation and ease of maintenance, while maximizing natural daylight within the building.


Features and benefits:

  • Exceptional build quality for durable, reliable, long-life performance.
  • Highly engineered mechanism enabling the window to be opened inwards from the top for secure, effective ventilation, or from the side for ease of cleaning from within.
  • The exclusive inward-opening sash enables easy, safe cleaning from within the building, as well as providing high levels of ventilation.
  • Large areas of unobstructed glass to maximize sight lines and flood interiors with natural light.
  • Compartmented profile for effective drainage and enhanced thermal efficiency – to meet latest regulatory requirements and create comfortable interiors.
  • Ten-year guarantee against warping, dis-colouring and cracking.
  • Accreditation by the British Board of Agrément (BBA), British Standards Institute (BSI) and approval by the Association of Chief Police Officers' Secured by Design initiative.

General information

Color

Finish

Foil

Glazed

Matt

Smooth

Textured

Show more

Material

PVC-U

Guidance for specification option:

Unplasticised Polyvinyl Chloride

Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_98_92 Unplasticized polyvinyl chloride (PVC-U) window unitsPrimary

CAWS

L10/30 PVC-U windows

L10/350 PVC-U windows

Product range

Windows

Specification data - Unplasticized polyvinyl chloride (PVC-U) window units

Third-party certification

To PAS 24, KM 32821; KM 52187.

Product performance

-

Durability

-

Operation and strength characteristics

Highly engineered mechanism.

Guidance for specification option:

Enabling the window to be opened inwards from the top for secure, effective ventilation, or from the side for ease of cleaning from within.

Safety

-

Security level

To PAS 24.

Thermal

-

Whole window U-value

Manufacturer's standard.

Guidance for specification option:

Dependent on glazing specified.

Frame

-

Profile

Chamfered.

Sculpted ovolo.

Colour and texture

White.

Guidance for specification option:

Extruded.

Cream.

Guidance for specification option:

Extruded.

Rosewood.

Guidance for specification option:

Foiled.

White ash.

Guidance for specification option:

Foiled.

Irish oak.

Guidance for specification option:

Foiled.

Golden oak.

Guidance for specification option:

Foiled.

Anthracite grey.

Guidance for specification option:

Foiled.

Slate grey.

Guidance for specification option:

Foiled.

Black ash.

Guidance for specification option:

Foiled.

Chartwell green.

Guidance for specification option:

Foiled.

Glazing or infill

-

Requirements

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Operation

-

Type

Manual.

Guidance for specification option:

Inward-opening sash.

Width

550–1500 mm.

Guidance for specification option:

(minimum to maximum); consult manufacturer and insert requirements.

Height

550–1500 mm.

Guidance for specification option:

(minimum to maximum); consult manufacturer and insert requirements.

Ironmongery

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Colour

Chartwell green.

Guidance for specification option:

Foiled.

Cream.

Guidance for specification option:

Extruded.

Golden oak.

Guidance for specification option:

Foiled.

Irish oak.

Guidance for specification option:

Foiled.

Rosewood.

Guidance for specification option:

Foiled.

Show more

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

Eurocell Closed-Loop Recycling

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

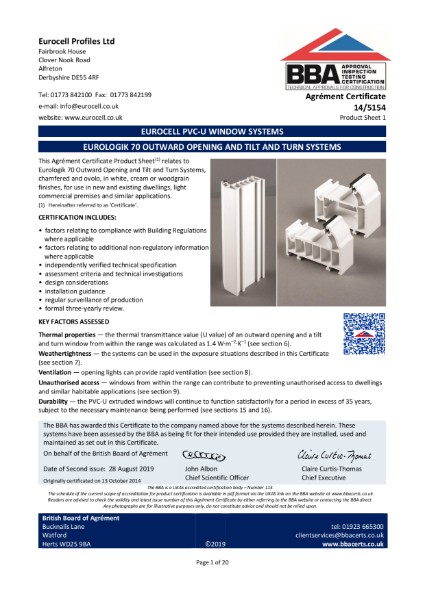

Logik Tilt & Turn BBA Certificate 14/5154

Literature

Logik 10 Year Product Guarantee

Logik 10 Year Product Guarantee

Logik System guide

Logik System guide

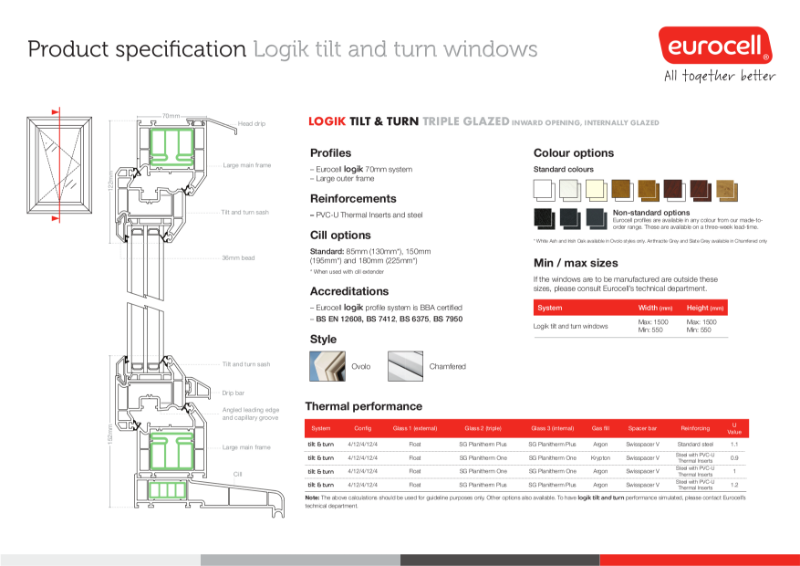

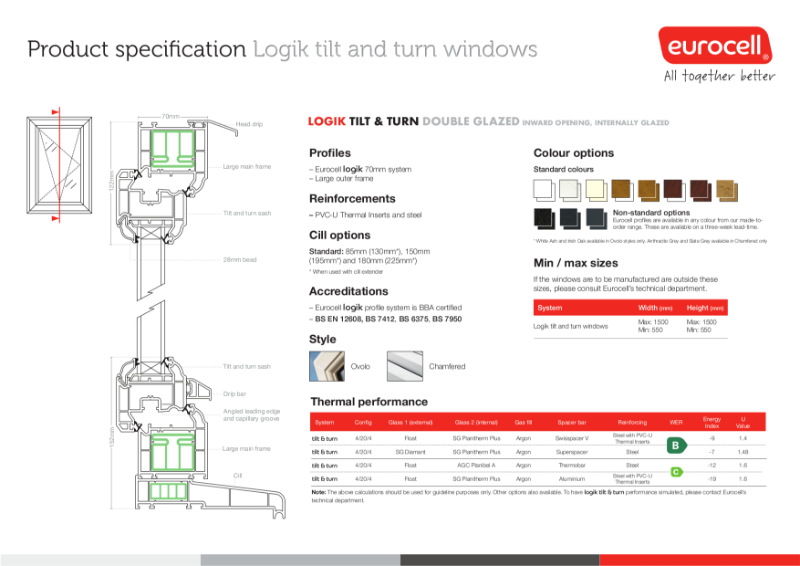

Logik Tilt and Turn DG Product Specification

Logik Tilt and Turn DG Product Specification

Logik Tilt & Turn TG

Logik Tilt & Turn TG

Logik Windows and Doors Consumer Brochure

Logik Windows and Doors Consumer Brochure

Case studies

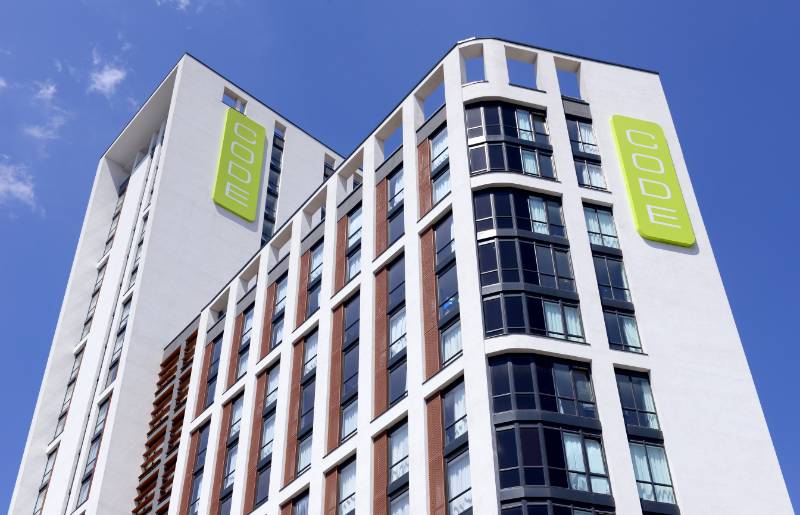

Eurocell passes the test at flagship student residence
