Mirox MNGE

Verified by manufacturer 1 year ago

AGC Glass UK Ltd

High quality standard mirrors using low-lead paints.

Jump to:
Website

Application

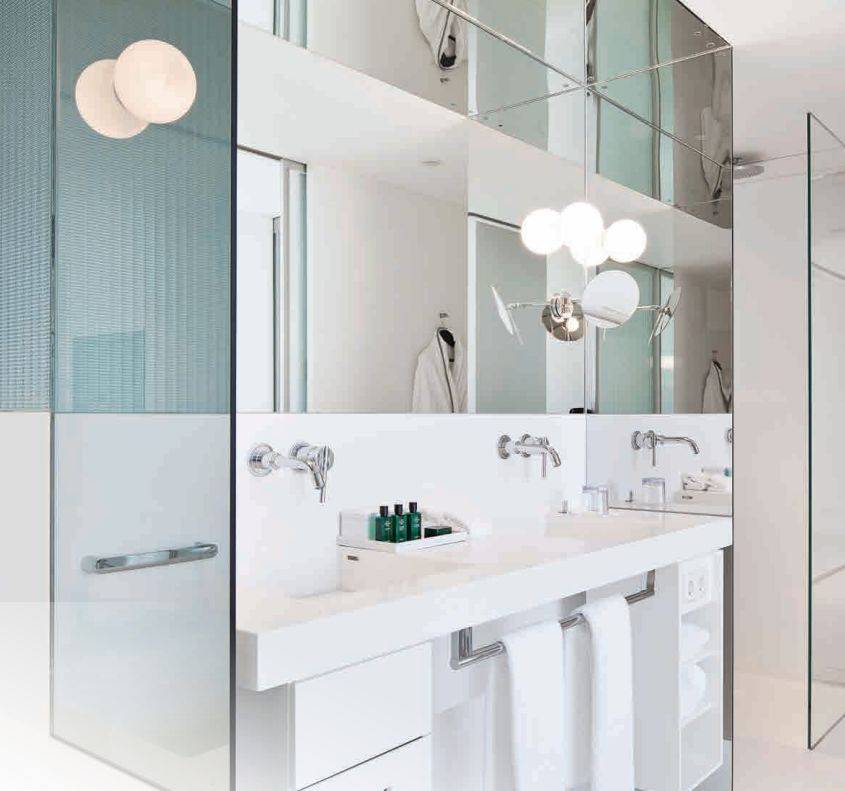

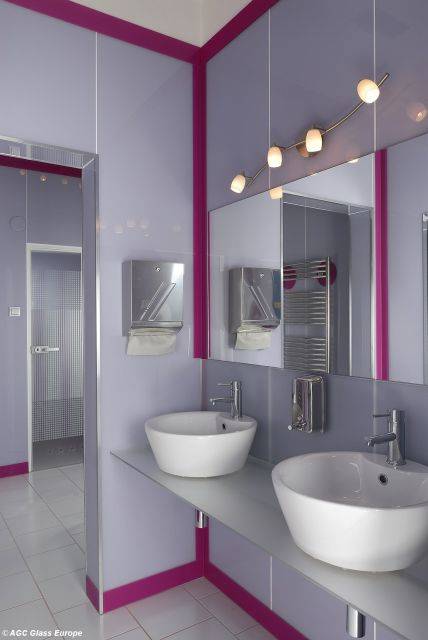

Indoors only for use as a mirror, including:

  • Furniture: partitions, tables, shelves, fixed and sliding doors for cupboards and wardrobes, display cases and glass boxes, etc.
  • Wall cladding: Bathrooms, shopping malls, restaurants, schools, hotels, elevators areas, etc.
  • Doors: sliding doors for furniture.

Description

High quality standard mirrors using low-lead paints.


Features and benefits:

  • The patented manufacturing process ensures that MNGE is a high quality, highly resistant mirror that easily exceeds the most stringent quality and resistance standards.
  • Available in a MIROX SAFE+ safety version.
  • Close to zero indoor emissions of volatile organic compounds (A+*, per French Decree No. 2011-321), including very low levels of formaldehyde.
  • Good quality of air inside the building maintained.
  • Special double-layer paint provides excellent anti-corrosion protection for the silver layer outperforming EN 1036.
  • Compatible with AGC's FIX-IN bonding solutions.
  • Easy to process.


For premium, lead-free-paint requirements, see Mirox 4Green, or for an antique appearance, see Mirold Morena (both specified separately).

General information

Color

Black

Bronze

Clear

Grey

Material

Glass

Uniclass

Pr_40_30_53_30 Glass mirrorsPrimary

CAWS

N10/270 Mirrors

L40/550 Glass mirrors

Specification data - Glass mirrors

Classification data

Standards

To BS EN 1036-2.

Materials and standards

-

Safety requirements

Manufacturer's standard.
SAFE+.

Guidance for specification option:

For extra safety a film can be applied to the painted side of the Mirox mirror. The film has two purposes:

  1. If the glass breaks, the shards will stick to the film, preventing injury and any further damage;
  2. It protects the painted surface of the glass from scratches.

Materials

Float glass.

Dimensions

-

Manufacturer guidance

Insert requirements: from 2000 x 3210 mm to 6000 x 3210 mm.

Thickness

4 mm.
6 mm.
2 mm.

Guidance for specification option:

Consult manufacturer for colour options.

3 mm.

Guidance for specification option:

Consult manufacturer for colour options.

5 mm.

Guidance for specification option:

Consult manufacturer for colour options.

Finish

Manufacturer's standard.

Backing

Double layer anticorrosive paint.

Edges

-

Treatment

Manufacturer's standard.
Ground.

Profile

Manufacturer's standard.
Other.

Guidance for specification option:

Insert requirements.

Provision for fixing

Manufacturer's standard.

Accessories

-

Manufacturer guidance

Consult manufacturer for further details and insert requirements.

Product Reference

Mirox MNGE Clear

Guidance for specification option:

Normal float base.

Mirox MNGE Clearvision

Guidance for specification option:

Highly neutral float base for pure aesthetics.

Mirox MNGE Black

Guidance for specification option:

Mirror on Dark Grey Planibel float.

Mirox MNGE Bronze
Mirox MNGE Grey

Third-party certification

Cradle to Cradle Certified™ Bronze.

Processing

Not required.
Cutting, straight.

Guidance for specification option:

Insert requirements.

Cutting, circular.

Guidance for specification option:

Insert requirements.

Grinding.

Guidance for specification option:

Insert requirements.

Bending.

Guidance for specification option:

Insert requirements.

Drilling.

Guidance for specification option:

Insert requirements.

Notches.

Guidance for specification option:

Insert requirements.

Manufacturer guidance

Consult manufacturer for further details.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe
