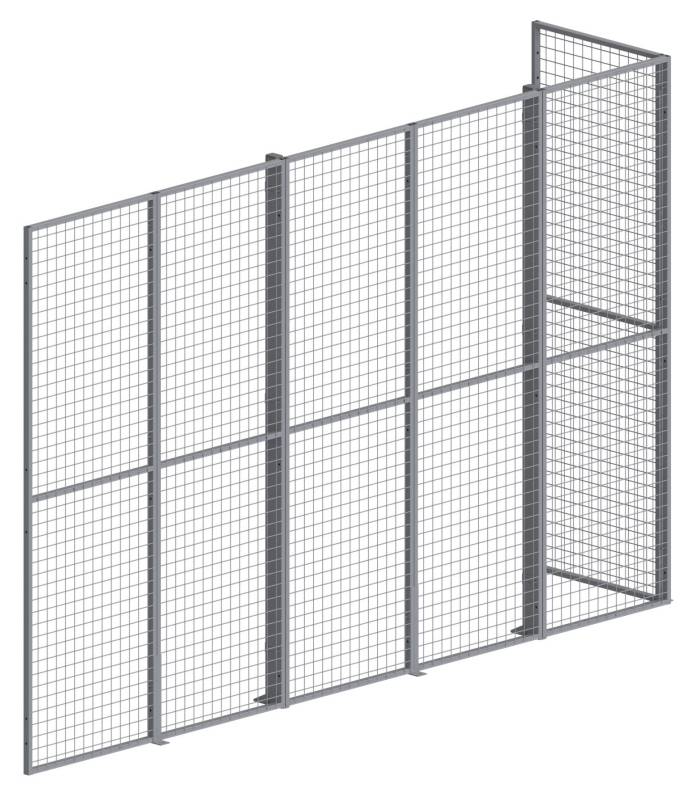

Mesh Warehouse Partitioning - Mesh Panel Partitioning System
Verified by manufacturer 13 days ago
Panel UX450 Partitioning System
Panel UX450 Partitioning System
Mesh panel partitioning system for warehouses.
Application
- Mesh panel partitioning system for warehouses.
- Used to secure storage areas, segregate workspaces, enclose machines and equipment.
- Can also be used for offices and control rooms, goods in and dispatch areas, and for anti-theft/high-security areas.
Description
Mesh panel partitioning system for warehouses.
Features and benefits:
- Modular system.
- Padlockable hinged or sliding doors available.
- Panel UR 350 is available in eight widths between 200 mm up to 1500 mm.
- Panel UX 450 is available in two heights, 2200 mm and 800 mm, and in eight widths between 200 mm up to 1500 mm.
- Mesh aperture 50 x 50 mm.
General information
Color | Grey Guidance for specification option: As standard, grey RAL 7037. Silver Beige Black Blue |
Finish | Powder-coated Galvanized |
Material | Steel |
Shape | Rectangle Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | K30/40 Mesh panel partitions K30/170 Mesh panel partitions |
SKU Code | 36020001, 36020011, 36030001, 36030011, 36050001, 36050011, 36070001, 36070011, 36080001, 36080011, 36100001, 36100011, 36118011, 36120001, 36120011, 36150001, 36150011, 35020001, 35030001, 35050001, 35070001, 35080001, 35100001, 35120001, 35150001 |
Specification data - Mesh panel partition systems
Classification data | |
System performance | Guidance for specification option: Insert requirements. |
Mesh panel partitions | UX 450 partition panels. Manufacturer guidanceDoors and Accessories specified separately below. |
Fasteners | Manufacturer's standard. Secure fasteners kit. Guidance for specification option: Kit secure fasteners is an add-on to the partitioning wall system when extra security is required. |
System accessories | Not required. Cut profiles UR/UX. Corner bracket. End raising foot UR/UX. Raising foot UR/UX. Pallet rack (kit 36907090). |
Dimensions | 2200 x 200 mm. Guidance for specification option: 36020001. 800 x 200 mm. Guidance for specification option: 36020011. 2200 x 300 mm. Guidance for specification option: 36030001. 800 x 300 mm. Guidance for specification option: 36030011. 2200 x 500 mm. Guidance for specification option: 36050001. 800 x 500 mm. Guidance for specification option: 36050011. 2200 x 700 mm. Guidance for specification option: 36070001. 800 x 700 mm. Guidance for specification option: 36070011. 2200 x 800 mm. Guidance for specification option: 36080001. 800 x 800 mm. Guidance for specification option: 36080011. 2200 x 1000 mm. Guidance for specification option: 36100001. 800 x 1000 mm. Guidance for specification option: 36100011. 800 x 1180 mm. Guidance for specification option: 36118011. 2200 x 1200 mm. Guidance for specification option: 36120001. 800 x 1200 mm. Guidance for specification option: 36120011. 2200 x 1500 mm. Guidance for specification option: 36150001. 800 x 1500 mm. Guidance for specification option: 36150011. |
Mesh size | 50 x 50 mm. |
Frame | 30 x 20 mm. |
Surface finish | Powder-coated, RAL 7037. Guidance for specification option: As standard. Powder-coated, RAL. Guidance for specification option: Insert colour requirements. Hot-dip galvanized. Guidance for specification option: For external use or in cold storage areas. |

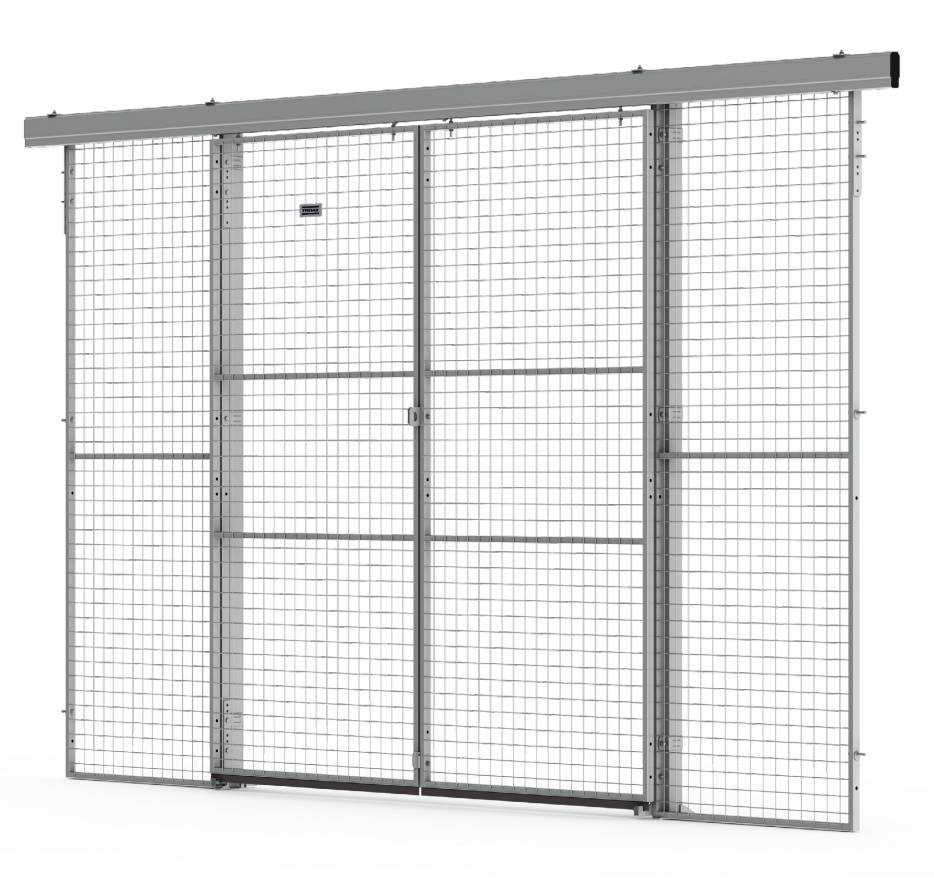

Doors | Hinged door for padlock (kit 36800100). Sliding door for padlock (kit 36906500). Sliding door for padlock, double rail (kit 36906540). Double hinged door for padlock (kit 36800100/ 36800240). Double sliding door for padlock (kit 36906530). |
Sustainability data
Contains Red List materials | No |
Material | Steel |
Literature
Literature type

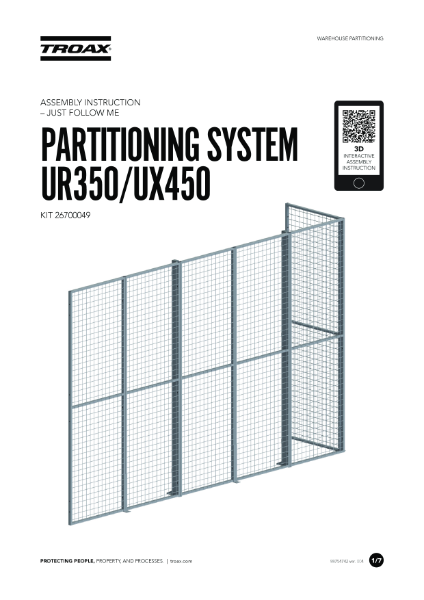

Mesh Warehouse Partition

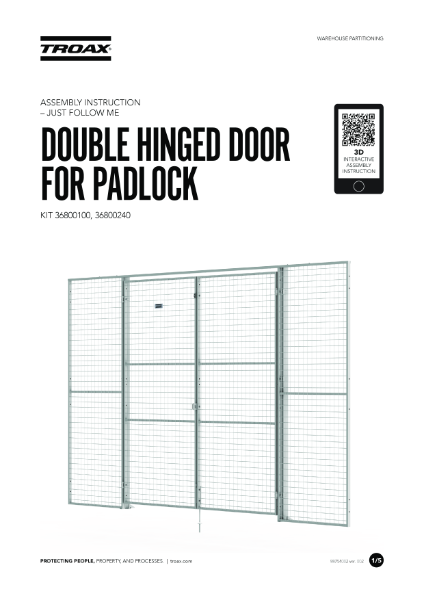

Mesh Warehouse Partition - double hinged door for padlock
Mesh Warehouse Partition - double sliding door for padlock

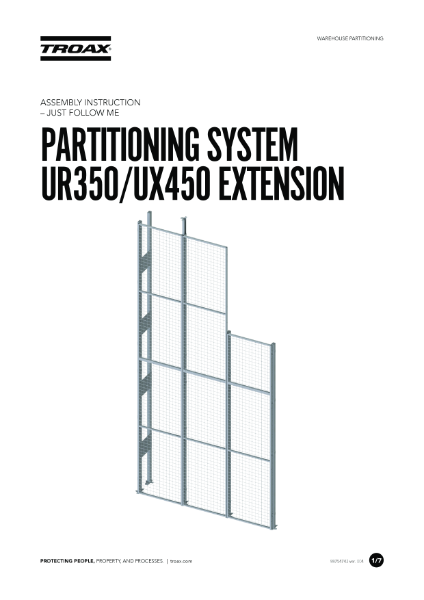

Mesh Warehouse Partition - extension

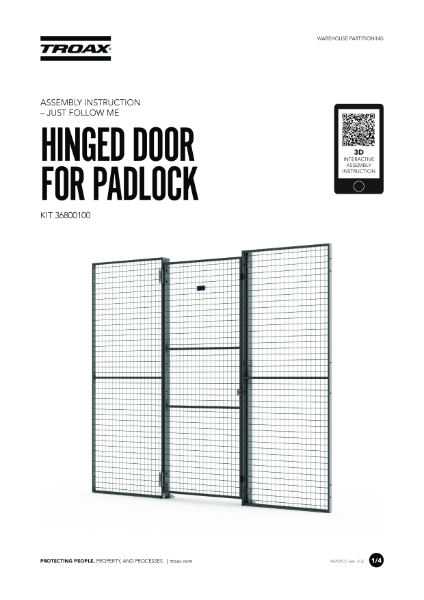

Mesh Warehouse Partition - hinged door for padlock

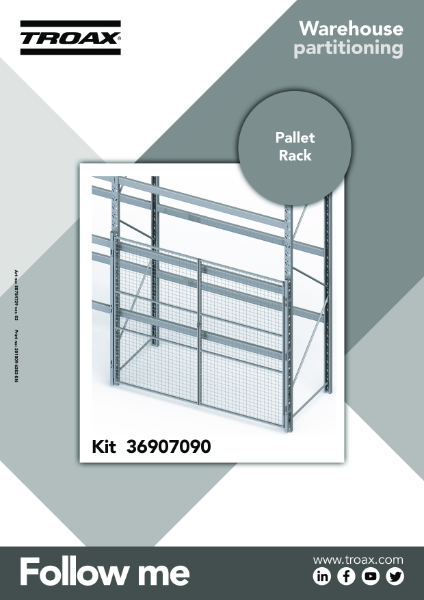

Mesh Warehouse Partition - pallet rack
Mesh Warehouse Partition - sliding door padlock

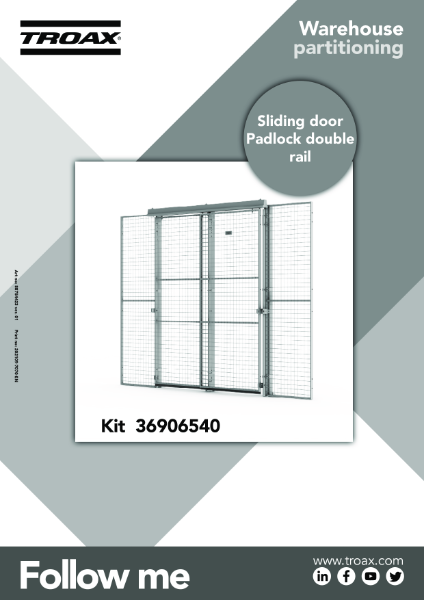

Mesh Warehouse Partition - sliding door padlock double rail

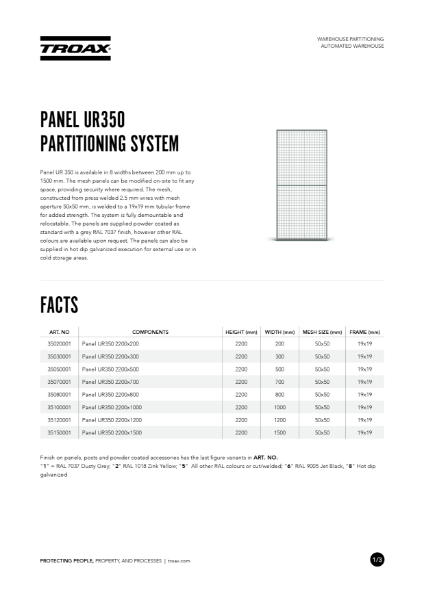

Panel UR350 Partitioning System

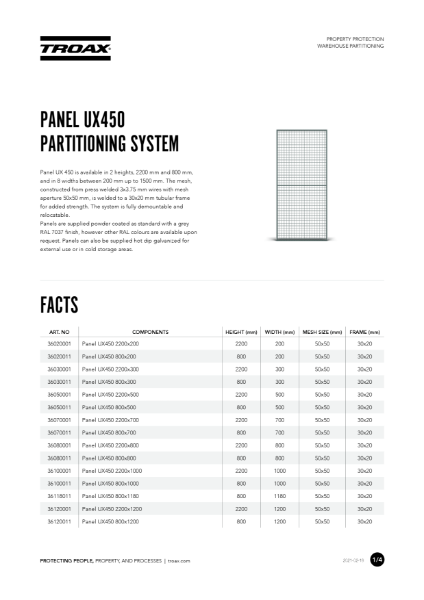

Panel UX450 Partitioning System
Similar products from Troax (UK) Ltd

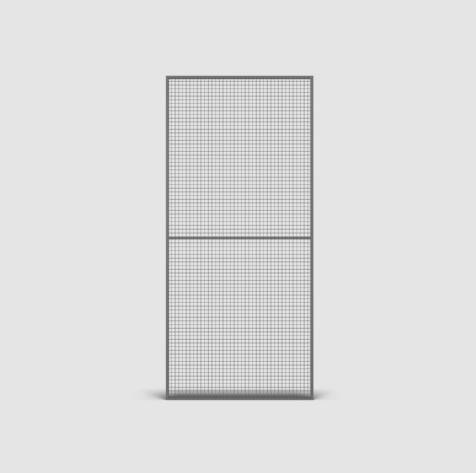

Aerosol Cage Storage Partition - Mesh Panel Partitioning System

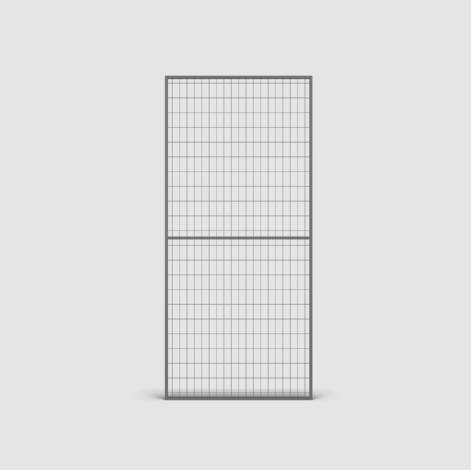

Anti-Collapse Mesh (ACM) Panel System - Mesh Panel Partitioning System
