MedO DM10HD Drainage Element

Verified by manufacturer 3 months ago

Radmat Building Products Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

High-density drainage element.

Jump to:
+44 (0)1858 410372 Website

Application

For roof and podium areas requiring vehicular access or high volumes of pedestrian access, including motorized wheelchairs and mobility scooters.

Description

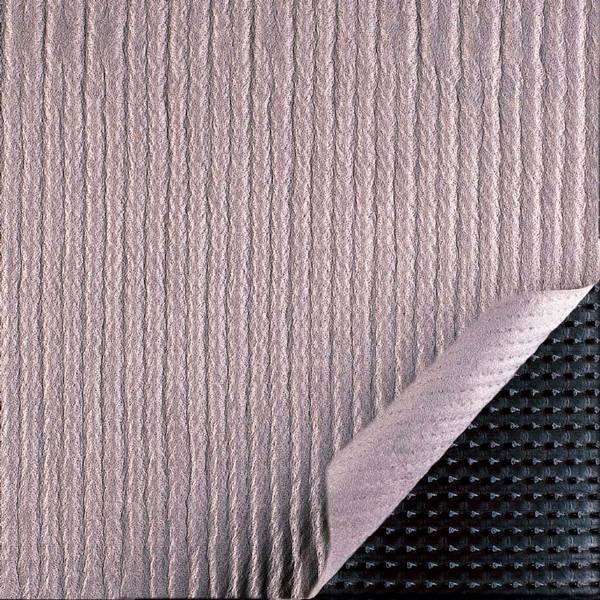

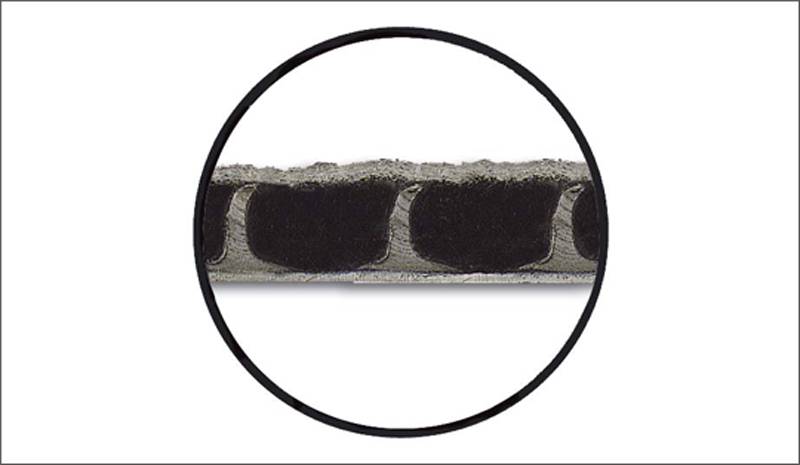

A high-density drainage element consisting of a PE-HD core laminated to a PE-HD foil on the underside and a PP geotextile fleece on the upper side Radmat DM10HD has a crush resistance of in excess of 1000 kPa.

General information

Color

Black

Finish

Unfinished

Material

Plastic

Shape

Rectangle

Length

20000 mm

Width

1500 mm

Height

8.5 mm

Warranty description

40 year

Uniclass

Pr_25_71_63_24 Drainage layer corrugated boardsPrimary

CAWS

Q37/355 Combined layers

Q37/350 Drainage layer

Q37/340 Moisture retention mat

Q37/360 Filter membrane

J40/290 High-density polyethylene/ polypropylene studded cavity drain membrane

J40/47 High-density polyethylene/ polypropylene studded cavity drain membrane

Specification data - Drainage layer corrugated boards

Material

PP geotextile fleece/ PE-HD foil.

Depth

8.5 mm.

Infill

Guidance for specification option:

Insert requirements or omit.

Recycled content

50%.

Weight (minimum)

1370 g/m².

Guidance for specification option:

Per roll: 41 kg.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

15/5282-2 EshaFlex Total Green Roof Waterproofing System

Literature

MedO DM10HD Drainage Element Product Data Sheet

MedO DM10HD Drainage Element Product Data Sheet

MedO Living Green Roof System Brochure

MedO Living Green Roof System Brochure
