MedO DCM25 Drainage Board

Verified by manufacturer 3 months ago

Radmat Building Products Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

A heavy duty drainage element with incorporated protection properties for the use in intensive green roof applications or in hard landscape applications.

Jump to:
+44 (0)1858 410372 Website

Application

For the use in intensive green roof applications or in hard landscape applications.

Description

A heavy duty drainage element with incorporated protection properties.

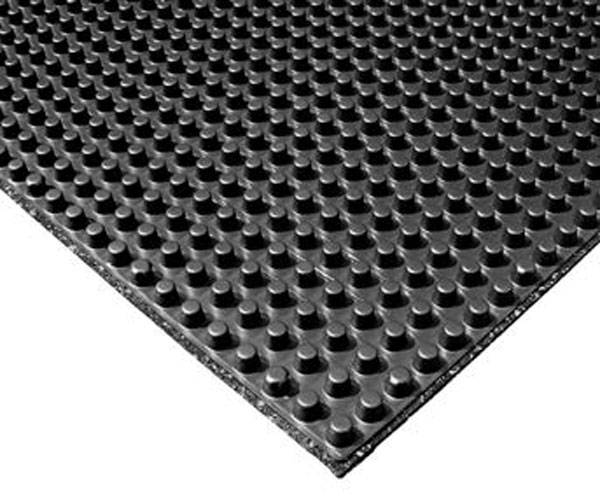

Made of ABS (Acrilonitrile Butatiene-Styrene) with attached rubber protection mat on the underside that provides mechanical protection for the waterproofing.

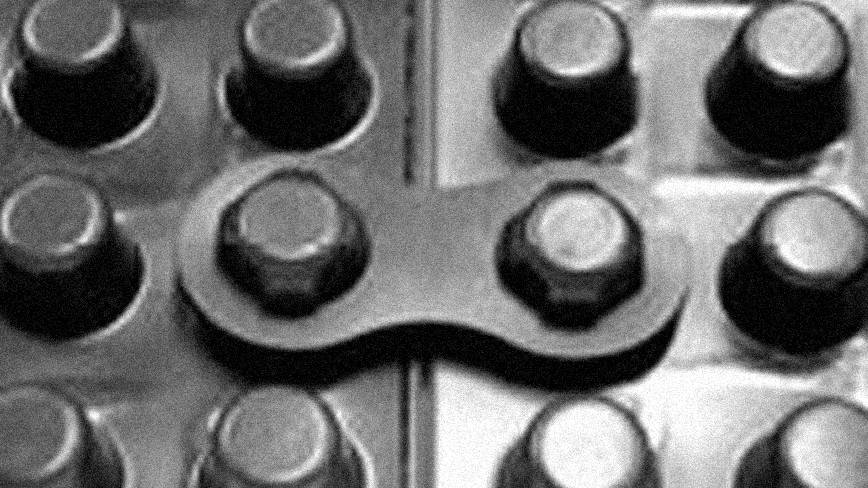

Radmat DCM 25 is connected at butt joints using special connecting pieces, providing high strength that makes it driveable by wheel loaders.


Low in weight and easy to install Radmat DCM25 has a high drainage capacity tested according to EN ISO 12958 and the plastic studded sheet and rubber protection mat can be easily separated for recycling.

General information

Color

Black

Finish

Unfinished

Material

Acrylonitrile butadiene styrene (ABS)

Shape

Rectangle

Length

2000 mm

Width

1000 mm

Height

25 mm

Warranty description

25 year

Uniclass

Pr_25_71_63_24 Drainage layer corrugated boardsPrimary

CAWS

Q37/355 Combined layers

Q37/340 Moisture retention mat

Q37/350 Drainage layer

Q37/360 Filter membrane

Specification data - Drainage layer corrugated boards

Material

Acrylonitrile butadiene styrene (ABS).

Guidance for specification option:

3 mm thick; 5 kg/m² minimum weight.

Compressive strength at 10% compression

Manufacturer's standard.

Infill

Guidance for specification option:

Insert requirements or omit.

Colour

Black.

Standard

To BS EN 12958.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Varies

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

15/5282-2 EshaFlex Total Green Roof Waterproofing System

Literature

MedO Living Green Roof System Brochure

MedO Living Green Roof System Brochure

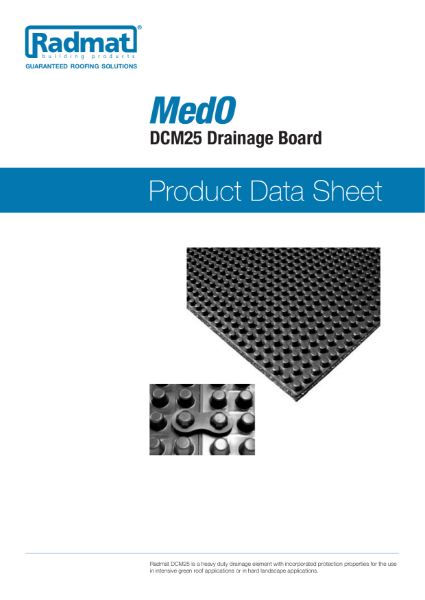

MedO DCM25 Drainage Board Product Data Sheet

MedO DCM25 Drainage Board Product Data Sheet
