Mediceil Walk-on Ceiling 60 mm

Verified by manufacturer 8 months ago

Norwood Group Limited

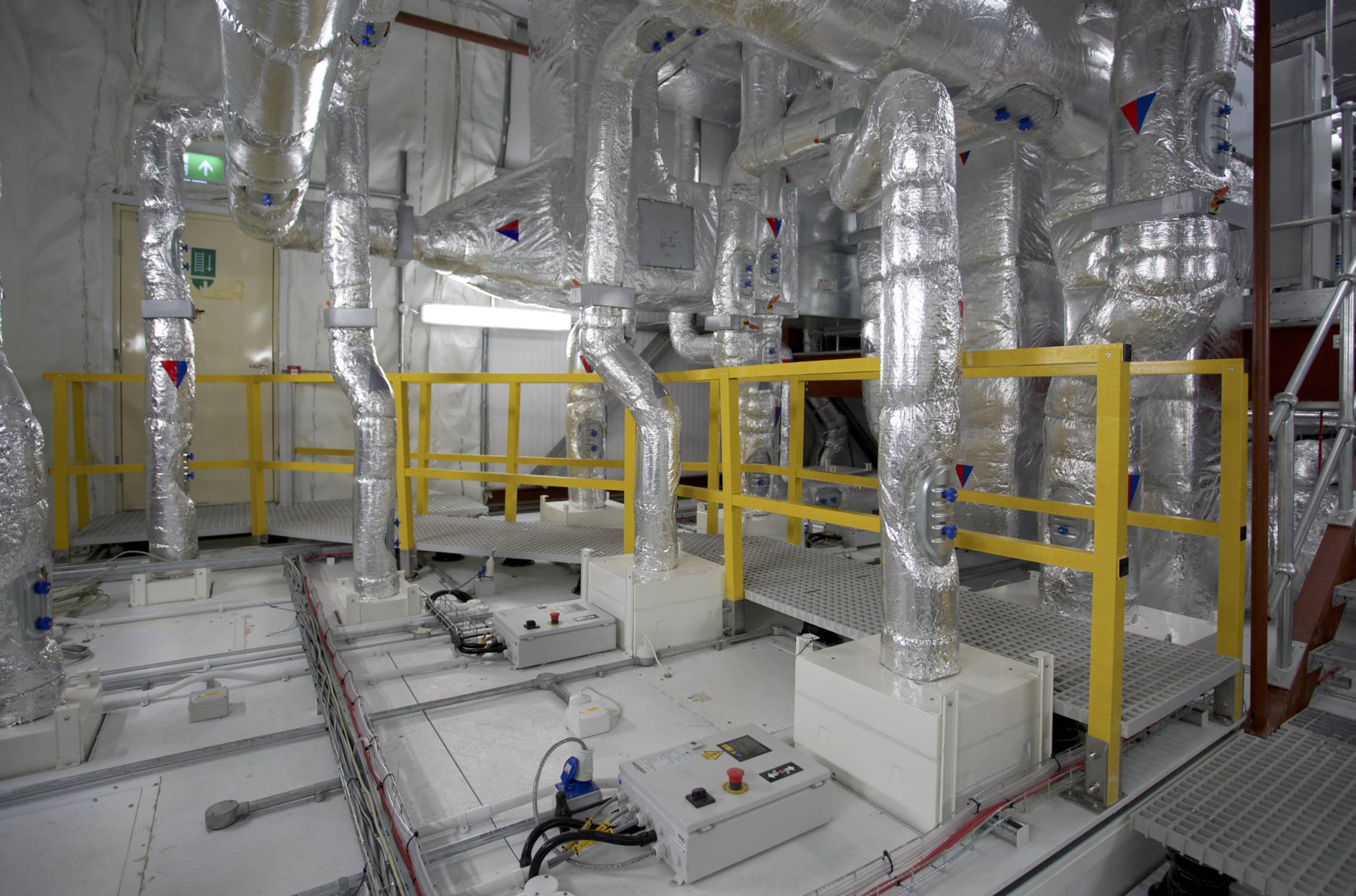

Demountable Maintenance Walk-on Ceiling 60 mm thick with spans up to 4000 mm unsupported (if suspended from above there's no limits to spans); suitable for cleanrooms and controlled environments.

Jump to:
BOS
+44 (0)161 696 5100 Website

Application

Designed to be supported by the Norwood Mediline partition walls or manufactured angle brackets, not requiring supports from the housing structure. Additionally, the product can be supported from the housing structure using threaded bar and concealed brackets.

Description

A fully demountable walk-on ceiling, offering up to 4000 mm spans unsupported, consisting of either an aluminium or cardboard honeycomb core depending on the client’s specification.


Features and benefits:

  • The Mediceil system is designed to be supported by the Norwood Mediline partition walls or manufactured angle brackets, therefore not requiring supports from the housing structure.
  • The concealed support bracket maintains a flush sealed finish from below.
  • The product can be tailored to suit individual requirements with panel widths manufactured to bespoke module sizes, 1000 mm modules being Norwood’s standard.
  • All panels are finished in a vinyl coating bonded to a galvanised substrate, available in various colours.
  • The module width, span and thickness are bespoke to each project and customer requirements.
  • All components are pre-fabricated which provides numerous benefits, including faster installation and reduced safety risks.

General information

Color

White

Guidance for specification option:

Standard is White Foodsafe Laminate - Closest RAL9003.

Beige

Black

Blue

Bronze

Show more

Finish

Other

Guidance for specification option:

PVC laminate.

Galvanized

Guidance for specification option:

Substrate.

Material

Steel

Guidance for specification option:

Galvanized steel substrate.

PVC

Guidance for specification option:

Laminate.

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Ss_30_25_22_51 Modular suspended ceiling systemsPrimary

CAWS

K40/10 Unit/ modular suspended ceilings

K40/115 Unit/ modular suspended ceiling system

Specification data - Modular suspended ceiling systems

System performance

Fire performance to BS EN 13501.

Ceiling support

Norwood partition walls.

Manufactured angle brackets.

Threaded bar suspension kit.

Support fasteners

Support type dependant.

Ceiling units

Pre-formed steel skins with a Foodsafe Laminate on a galvanised substrate with a bonded core of either aluminium or cardboard honeycomb.

Guidance for specification option:

Cardboard honeycomb cores available on request.

System accessories

Cable trunking.

Bulkheads.

Removable section.

Coffered ceilings.

Cleanroom classification

ISO Class 5, 6, 7 and 8.

Guidance for specification option:

Class 1 & 2 possible subject to

further discussions.

Grade B and below.

Structural support

0.25 kN/m2 UDL.

Guidance for specification option:

Structural test reports available on request.

Air tightness

45 Pa.

Guidance for specification option:

Due to the air tightness of the Mediceil system the minimum measurable air flow rate was not exceeded so leakage readings only available from 45 Pa. Table of results available.

SurfaceSpreadOfFlame

Class O.

Load

250 kg.

Manufacturer guidance

Safe working load (SWL).

Sustainability data

Contains Red List materials

No

Country of material origin

Sweden

Country of product manufacture

United Kingdom

Recyclability

Our products are made from recyclable materials, such as steel. Steel scrap has a strong market position: steel recovered from structures and end products at the end of their lifecycle is efficiently re-used.

Manufacturer guidance

Metals widely recycled.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
