Max-E Channel - Surface Water Drainage
Verified by manufacturer 3 months ago
430 mm Wide - Concrete Top Unit
430 mm Wide - Concrete Top Unit
Linear slot drainage channel.
Application
- Suitable for all locations as described in BS EN 1433 : 2002 for load classification F900
- Suitable for pedestrian traffic, motor cars and occasional overrun by LGV"s
Description
A high-capacity drainage system that complements the Marshalls 'Beany' range to ensure continuity between kerb and top units. Max-E Channel is compatible with all Beany junctions, outfalls and other ancillary units.

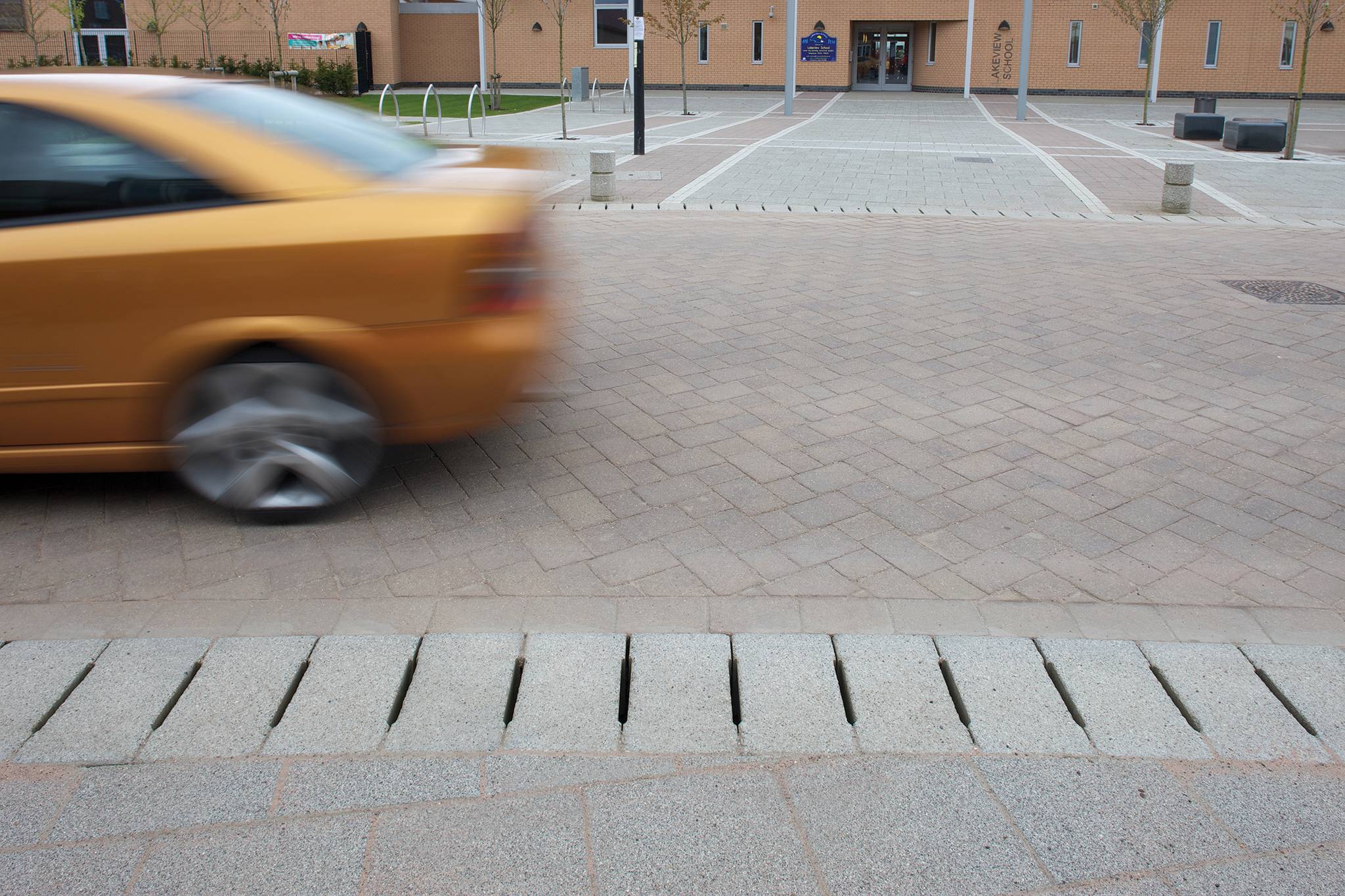

Max-E Channel’s top unit is laid level with the pavement, allowing it to become a high capacity, fully integrated surface water solution.
With selective top options, Max-E Channel can achieve a load classification classification of F900, the highest possible rating, making it a suitable option for rail, commercial and industrial deployment.
Features and benefits:
- High-capacity drainage system.
- Compatible with Marshalls Beany products.
- Highest classification of F900.
- Suitable for commercial, industrial or rail applications.
- Manufactured of hydraulically pressed concrete or cast iron.
- Concrete slotted top units offered in Conservation Silver Grey, Standard Grey and Reinforced Standard Grey.
- The blocks can be textured to provide an appealing finish.
- Complies to BS EN 1433: 2002.
General information
Color | Grey Silver Black |
Finish | Textured |
Material | Concrete Iron |
Shape | Rectangle |
Length | 500 mm |
Width | 430 mm 440 mm |
Height | 295 mm 365 mm 630 mm |
Uniclass | |
CAWS | Q10/35 Drainage channel systems with gratings Q10/180 Drainage channel systems with gratings |
Specification data - Drainage channels with gratings
Standard | To BS EN 1433: 2002. |
Certification | BSI certified: ISO 14001; ISO 9001; OHSAS 18001. |
Material | Concrete.Guidance for specification option: Hydraulically pressed. |
Gratings | |
Material | Concrete.Guidance for specification option: Hydraulically pressed. |
Form | Slotted. |
Colour | Standard Grey.Reinforced Standard Grey.Conservation Silver Grey. |
Load class (minimum) | E 600.F 900. |
Channel unit dimensions | |
Width (nominal) | 430 mm. |
Depth (nominal) | 205 mm.295 mm. |
Length | 500 mm. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirements. |
Apparent density | 2300 kg/m³. |
Water absorption | 3%. Guidance for specification option: Maximum. |
Watertightness | Meets the requirements of the standard. |
Unit weight | 70—110 kg. Guidance for specification option: Excluding top units. |
Reaction to fire | Class A1. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Concrete Iron |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | kg CO₂ eq/kg Self declared Guidance for specification option: Available on Request. |
