Drexus Pave Drain - Surface Water Drainage

Verified by manufacturer 3 months ago

DR5410150: 0/0 1000 No-rail Channel

Marshalls Civils & Drainage Variant:

Low-capacity linear drainage system.

Jump to:
+44 1179 814500 Website

Application

  • Suitable for all locations as described in BS EN 1433 : 2002 for load classification D400
  • Suitable for a range of public realm developments, with the exception of public road carriageways or motorways

Description

Designed to complement Marshalls paving products, the robust Drexus Pave Drain is available in a variety of finishes, with choices including Textured Grey, Textured Buff, Textured Charcoal, Mid Grey Granite, Silver Grey Granite and Scoutmoor Yorkstone.


Drexus Pave Drain has a loading rating up to D400 and is suitable for a range of public realm developments, with the exception of public road carriageways or motorways.


This low capacity drainage solution has been designed for flexibility and appearance using Marshalls Civils & Drainage expertise in concrete and natural stone.


Features and benefits:

  • Available in a range of finishes and six colourways.
  • Low capacity drainage.
  • Suitable across a range of applications including pedestrian and lower traffic areas.
  • Complements Marshalls Civils and Drainage paving ranges.

General information

Color

Grey

Finish

Cement

Material

Concrete

Shape

Rectangle

Length

500 mm

1000 mm

Width

160 mm

Height

170 mm

195 mm

220 mm

245 mm

270 mm

Uniclass

Pr_65_52_24_24 Drainage channels with gratingsPrimary

CAWS

Q10/180 Drainage channel systems with gratings

Q10/30 Linear slot drainage channel system

Specification data - Drainage channels with gratings

Standard

To BS EN 1433.

Certification

BSI Kitemark: ISO 14001; ISO 45001; ISO 9001.

Material

Concrete.

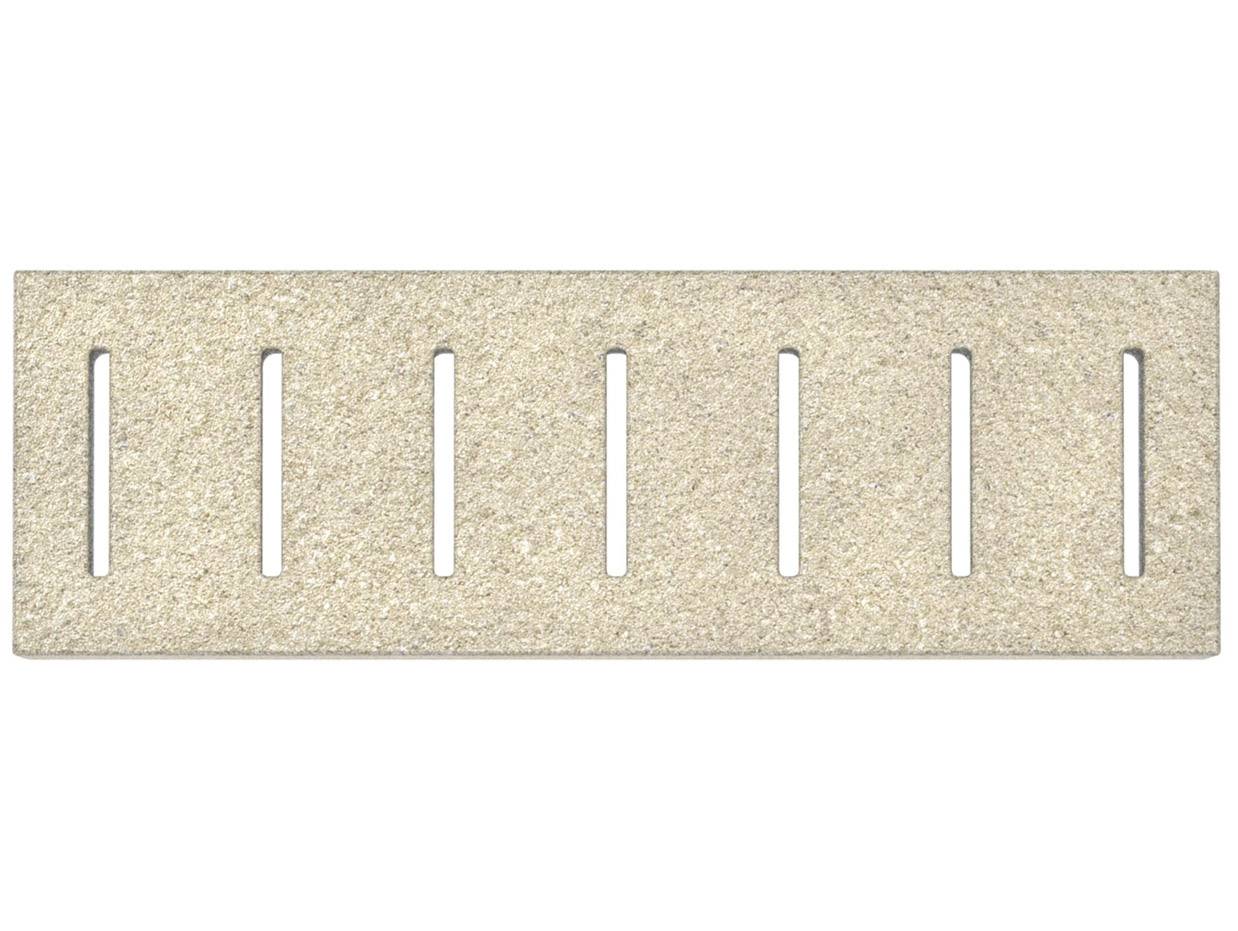

Gratings

-

Material

Concrete.

Form

Slotted.

Colour

Buff.

Guidance for specification option:

DR5448200

  • Length: 500 mm.
  • Width: 160 mm.
  • Height: 80 mm.
  • Made to order.

Charcoal.

Guidance for specification option:

DR5448300

  • Length: 500 mm.
  • Width: 160 mm.
  • Height: 80 mm.
  • Made to order.

Grey.

Guidance for specification option:

DR5448100

  • Length: 500 mm.
  • Width: 160 mm.
  • Height: 80 mm.
  • Made to order.

Load class (minimum)

D400.

Channel unit dimensions

-

Width (nominal)

160 mm.

Depth (nominal)

154 mm.

Length

1000 mm.

Integral accessories

Guidance for specification option:

Consult manufacturer and insert requirement.

Height

170 mm.

Apparent density

2280 kg/m³.

Slip resistance

>45 (polished); >45 (unpolished).

Reaction to fire

Class A1.

DischargeCrossSection

7300—22300 mm².

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Concrete

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

9.8 kg CO₂ eq/kg

Self declared
