M411 Aluminium Security Shutter
Verified by manufacturer 13 days ago

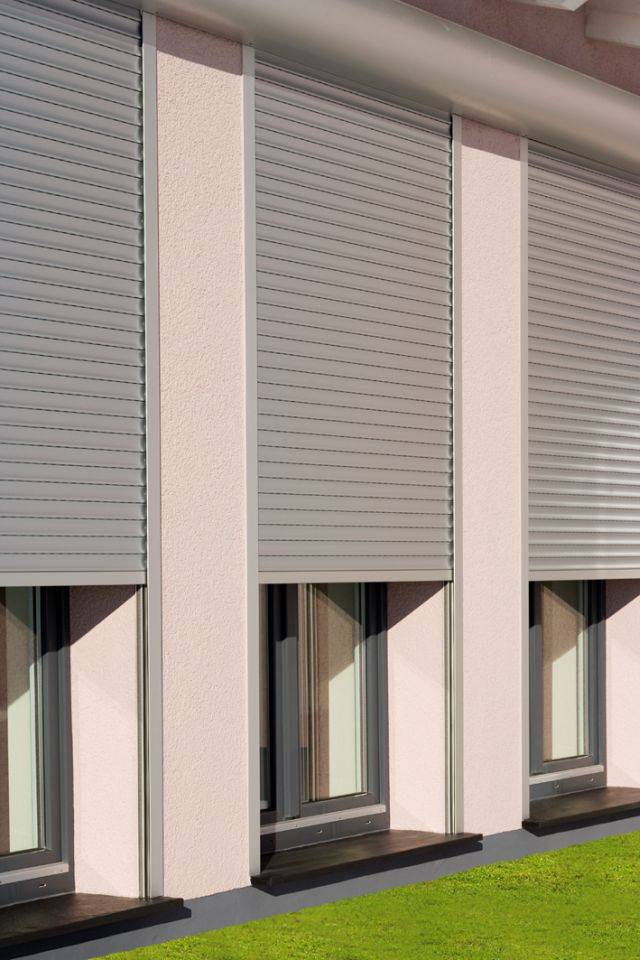

Double skinned insulated aluminium security roller shutter with 42 mm high slats.
Application
Windows, doors and openings in domestic and commercial uses.
Description
Double skinned insulated aluminium security roller shutter with 42 mm high slats, for use in medium to high security domestic and commercial applications. The polyurethane foam core offers enhanced heat and sound insulation, whilst optional integrated ventilation slots enable light ingress and airflow when the shutter is lowered. The shutter can span up to 3.4 m in width and an area up to 8 m².
General information
Color | White Brown |
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Product range |
Specification data - Roller shutters
Opening sizes | 3400 x 1600 mm.Manufacturer guidanceAvailable up to 3600mm height depending on width and mode |
Arrangement | Vertical, external face fix.Vertical, internal face fix.Vertical, reveal fix. |
Shutter curtain. | |
Lath material | 8.5 mm thick aluminium double skinned polyester powder-coated with polyurethane foam insulating core, 42 mm in height. Bottom slat: Extruded aluminium with brush and rubber weather seals. |
Finish and colour | Beige.Brown.Cream.Grey.Silver.White.BS.Guidance for specification option: Insert requirements RAL.Guidance for specification option: Insert requirements |
Frame and guides | |
Material | Enclosure: Roll formed aluminium with pressure-moulded aluminium alloy end caps. Guide channels: Extruded aluminium with brush and rubber weather seals. |
Colour | Brown.Guidance for specification option: Standard colour. White.Guidance for specification option: Standard colour. BS.Guidance for specification option: Insert colour requirement. RAL.Guidance for specification option: Insert colour requirement. |
Operation | |
Mode | Electric, NRG Econom tubular motor.Electric, Somfy tubular motor.Manual, cord belt.Manual, rod and crank.Manual, spring and lock.Manufacturer guidanceElectric shutters are supplied with a single phase tubular motor with internal rocker or external key switch as standard. Numerous control option variants such as group, remote or mobile phone activation are available. |
Accessories | None.Crank handle.Manual override facility.Vented.Unvented. |
Slat ventilation slots | Not required. Required. |
Enclosure type | Box. Guidance for specification option: Standard. Circular. |
Guide channels depth | 25 mm. 45 mm. 53 mm. 60 mm HD. 68 mm. |
Weight | 4 kg/m². |
Size | 42 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
 DWG | - | 1 |
Literature
Commercial Security Shutters
Domestic Security Shutters
Insulated Security Shutters
Commercial Security Solutions

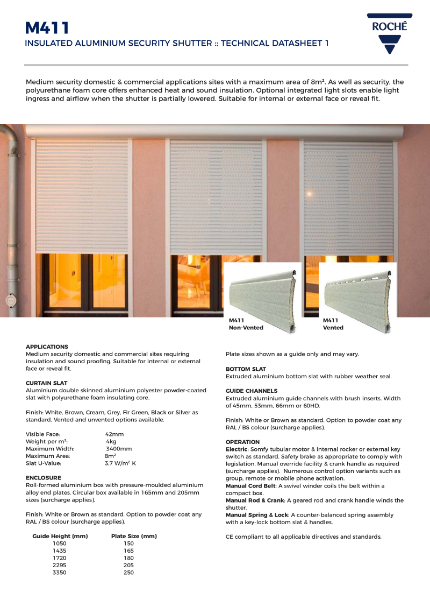

M411 Datasheet
