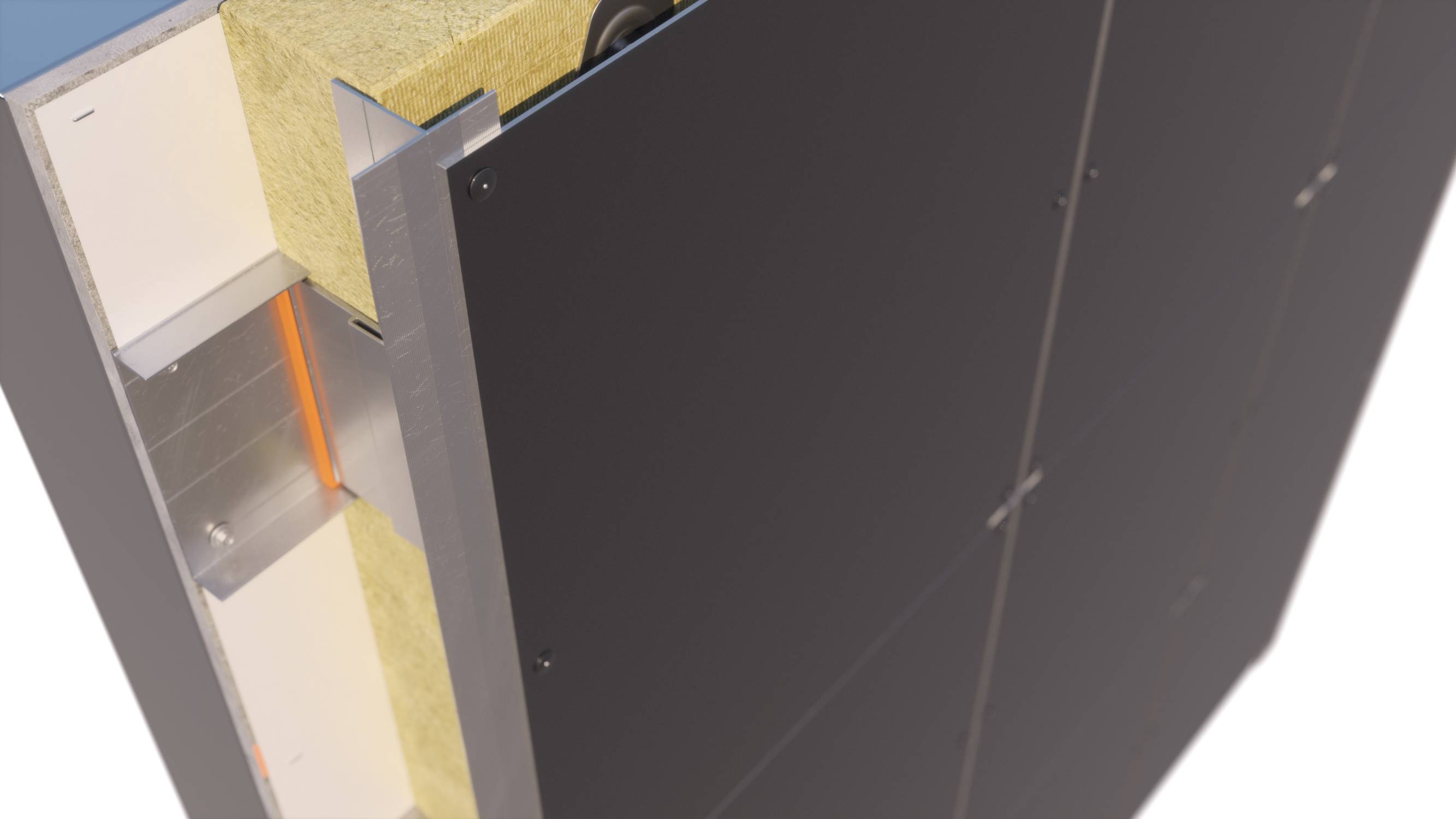

Non-combustible, A1-rated, through fix panel (rivet fix) rainscreen cladding system.

Jump to:
+44 (0)1423 611 100 Website

Application

Particularly suited for a wide range of architectural cladding applications on both internal and external commercial and residential projects, where a sleek/ modern facade is required.


All provided products are tested and certified in accordance with Approved Document B, Volume 2, for high-rise buildings.

Description

Non-combustible, A1-rated, through fix panel (rivet fix) rainscreen cladding system with a panel thickness of 3 mm.

A typical system comprises:

  • Insulation (to specified thickness).
  • Breather membrane.
  • EVT II support structure.
  • Cavity fire barriers.
  • A1-rated cladding panels (3 mm thickness).
  • RJ Facades Ltd fixings.

Cladding panel - Features and benefits:

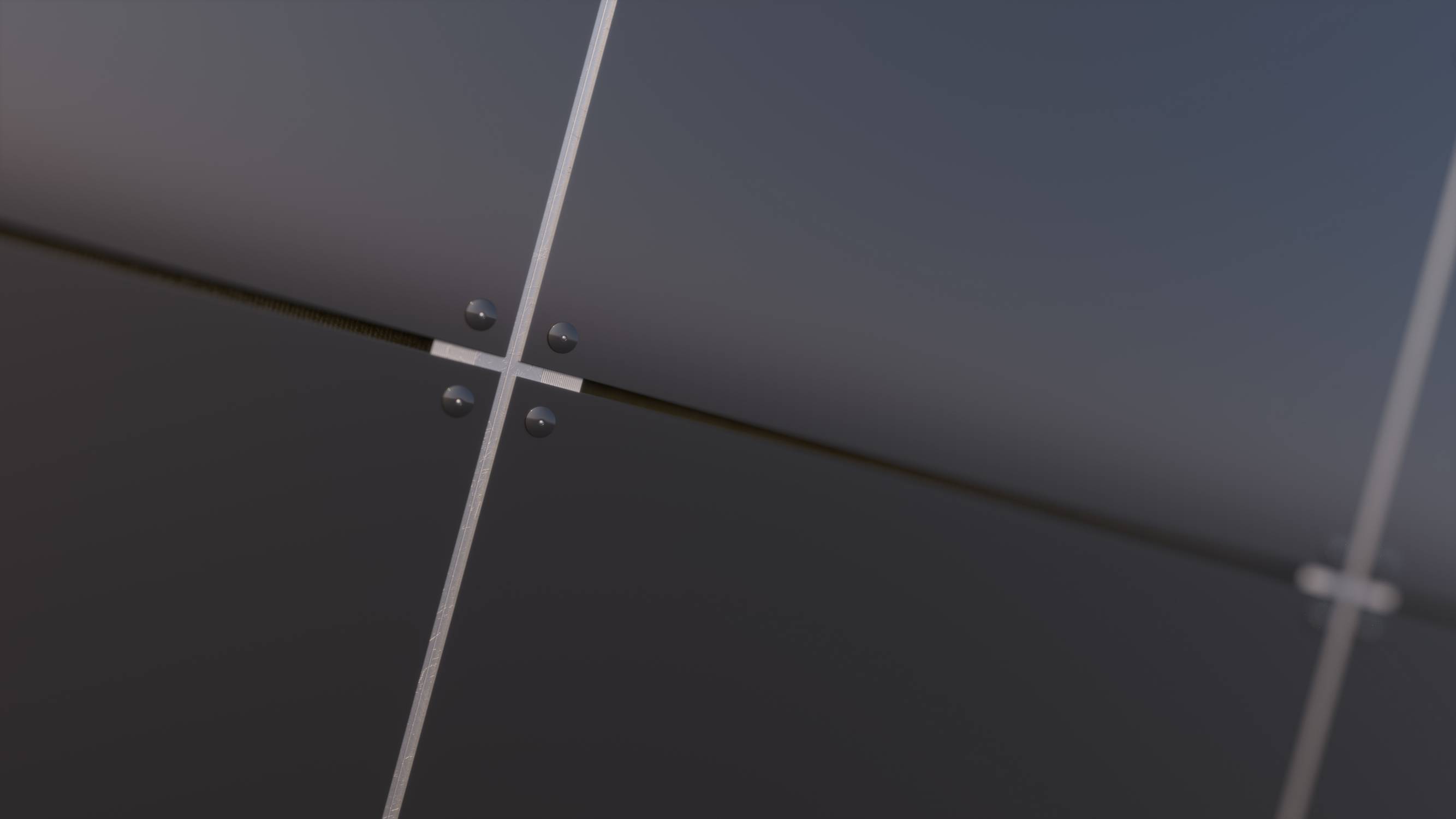

  • Rivet fixed panels are cut into flat sheets and holes punched/ drilled for rivet locations. Fixings can be matched to the panel to give a partially hidden installation.
  • No oil-canning appearance.
  • Offers a cost-effective and aesthetically pleasing facade solution.
  • Lightweight and rigid, easy to install.
  • Installation method: Either top-down or bottom-up.
  • Non-combustible: A1 rated to BS EN 13501-1.
  • UL Enhanced Mark ‘Performance of Curtain Walling and Rainscreen Cladding Support Systems’ (R41182-2).
  • Tested to CWCT standards with wind load of 3600 Pa safety.
  • Versatile: Can be custom designed into a wide range of shapes and dimensions including perforated or curved in some applications.
  • Highly durable and impact-resistant, can be used effectively in high traffic areas.
  • Available in an extensive range of standard colours.
  • Finished with polyvinylidene difluoride (PVDF) KYNAR 500, HYLAR 5000 or fluoroethylene vinyl ether (FEVE) paints, known for their high durability, providing the optimum resistance to weather. They also provide customizable colour/ finish options.
  • Warranty available up to 40 years - consult manufacturer for details.
  • Extremely flat, low surface stress.
  • Also available as a DFC (Discreet Fix Cassette Cladding System), SFC (Secret Fix Cassette Cladding System - hook on fixed), PCP (Pressed Clip Plank Cladding System), IPP (Interlocking Pressed Plank Cladding System), CP (Castellated Panel Cladding System), or Eco Luxe® "near zero CO2 e" low carbon aluminium alloy (which are specified separately).

4.8 mm diameter colour matched, large flange rivets are fixed to EVT II system. Fixing centres should be spaced 14–50 mm from the panel edge. When using rivets, ensure that a RT/ACB/NP/AL/K14 Rivet Nosepiece adapter is also used to prevent over-tightening of the rivets. Once fixed points are installed, work over the panel for the sliding centres – consult manufacturers drawings for further details.

Secondary support structure - Features and benefits:

  • Lightweight.
  • Durable.
  • Certified low carbon: ≤4.0/kg co²eq/1.0 kg aluminium.
  • UL Mark – Performance of Cladding and Cladding Support Systems (R40530-1).
  • Tested to Centre for Window and Cladding Technology (CWCT).
  • UKAS accredited.
  • NHBC recognized for technical project submissions.
  • System warranty available - contact manufacturer's technical team for information.

Multiple colour options are available, including:

  • Solid.
  • Metallic.
  • Sparkling.
  • Patina.
  • Corten.
  • Stone.
  • Brushed.
  • Wood.
  • Iridium.
  • Bespoke.

General information

Color

White

Cream

Beige

Grey

Black

Show more

Finish

PVdF

Painted

Powder-coated

Metallic

Anodized

Show more

Material

Aluminium

Shape

Rectangle

Other

Length

2500 mm

3200 mm

4000 mm

Bespoke

Width

1000 mm

1250 mm

1500 mm

Bespoke

Height

3 mm

Manufacturer guidance

Sheet thickness.

Warranty description

40 year

Guidance for specification option:

Warranty available up to 40 years - consult manufacturer for details.

Uniclass

Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary

CAWS

H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Classification data

Thermal insulation

Rockwool Duo Slab (or equivalent, where applicable).

Guidance for specification option:

Insert required thickness.


  • Thermal performance: 0.034 W/(m·K).
  • Reaction to fire (to BS EN 13501-1): A1.
  • Fixings: RJ Facades Ltd - Fire rated insulation fixings.


Breather membrane

-

Material

DuPont™ Tyvek® FireCurb®.

Guidance for specification option:

  • Reaction to fire (to BS EN 13501-1): B-s1, d0, in accordance with ADB v2 for high-rise buildings.
  • Water tightness (to EN 1928 (A)): Class W1.


Secondary support structure

EVT II aluminium carrier rail system.

Guidance for specification option:

EVT II Helping Hand Brackets, System Profiles and Structural Support Profiles:

  • Brackets: Adjustability of 47 mm up to maximum 364 mm. Custom depth brackets are also available - consult manufacturer for details.
  • System Profiles and Structural Support Profiles: Aluminium carrier system, manufactured in 6063 T6 or 6060 T66 using certified low carbon aluminium alloy, profiles and fixings which have been Centre for Window and Cladding Technology (CWCT) tested and certified by UL Mark – Performance of Cladding and Cladding Support Systems (R40530-1), UKAS accredited and recognized by the NHBC for technical project submissions. Designed to offer a cost effective yet strong carrier system, and is suitable for all building types.


EVT II - Structural C Channels and Top-Hat Support Profiles:

Comprises of aluminium or stainless steel top-hats and C-channel rails to allow brackets to be installed in isolation of stud location or increase system depth. The EVT II top-hats can also be used in their own right to replace timber batten style sub-grids.


EVT II - Rails:

L-profile or T-profile, available in a range of sizes and 6 m in length. Consult manufacturer for details.

Manufacturer guidance

Consult manufacturer for guidance.

Cavity fire barriers

-

Horizontal

Siderise E90 I30 Open State Cavity Barriers.

Manufacturer guidance

Fixings: Fire tested fixings to be advised by Siderise to equivalent performance of fire barrier, fixing reference dictated by substrate.

Vertical

Siderise E90 I30 Closed State Cavity Barriers.

Manufacturer guidance

Fixings: Fire tested fixings to be advised by Siderise to equivalent performance of fire barrier, fixing reference dictated by substrate.

Cladding panels

-

Material

Aluminium - 3000 series.
Aluminium - 5000 series.

Manufacturer guidance

Fixed with SSAL481016 - 4.8 x 10 x 16 mm flange - AIMg 2.5/ A2 grade, grip range 1.5–6.5 mm, colour matched to panel.

Fixing centres should be spaced 14–50 mm from the edge of the panel and at maximum 600 mm centres (wind load dependent) - consult manufacturers drawings for further details.

Fixings by Mainline Products UK Ltd.

Panel joints

10 mm joints in both vertical and horizontal directions.
Closed joints.

Guidance for specification option:

Can incorporate Birdsbeak joint closure profile and Vermin closure profile. Consult manufacturer for details.

System accessories

Not required.
130530 EVT II Single Thermal Pad 80 x 42 mm.
130531 EVT II Double Thermal Pad 160 x 42 mm.
Window flashing profile.

Configuration/ Design

-

Manufacturer guidance

Insert drawing or project reference, or insert requirements.

Thickness

3 mm.

Guidance for specification option:

8.24 kg/m².

Panel size

2500 x 1000 mm.
2500 x 1250 mm.
2500 x 1500 mm.
3200 x 1000 mm.
3200 x 1250 mm.
3200 x 1500 mm.
4000 x 1000 mm.
4000 x 1250 mm.
4000 x 1500 mm.
Bespoke.

Guidance for specification option:

Consult manufacturer for details.

Manufacturer guidance

Length x width.

Finish:

PVDF KYNAR 500.
HYLAR 5000.
FEVE.
Polyester powder-coated.

Manufacturer guidance

EN 1396/ AAMA 2605.

Colour

Pure White.
White.
Cream.
Beige.
Light Grey.
Goose Grey.
Platinum Grey.
Dusty Grey.
Quartz Grey.
Basalt Grey.
Umbera Grey.
Graphite Grey.
Anthracite Grey.
Black Grey.
Deep Black.
Copper Brown.
Flame Red.
Ruby Red.
Pastel Orange.
Zinc Yellow.
Yellow Green.
Moss Green.
Steel Blue.
Bespoke.

Guidance for specification option:

Consult manufacturer and insert requirements.

Manufacturer guidance

Colours listed are only a sample of the possibilities available. Any RAL, NCS and NCS-S color chart can be used. On request, manufacturer can also prepare individual colours to match required specifications.

Reaction to fire

To BS EN 13501-1, Class A1.

Sheathing board

RCM Y Wall Board.

Guidance for specification option:

  • Thickness/ weight: 12 mm/ 14.607 kg/m².
  • Panel size (l x w): 2400 x 1200 mm.
  • Reaction to fire (to BS EN 13501-1): A1.
  • Fixings: FIX006 RCM WINGTIP SCREW, 4.8 x 38 mm for SFS – Consult manufacturer’s details for fixing layouts.


Cavity

50 mm open joint installation.

Guidance for specification option:

Measured from face of insulation to rear of panel, can be reduced by 50% at fire barrier locations or other “pinch” points.

25 mm closed joint installation.

Guidance for specification option:

Measured from face of insulation to rear of panel, can be reduced by 50% at fire barrier locations or other “pinch” points.

Manufacturer guidance

Cavity depth.

Fixings

Supplied by RJ Facades.

Guidance for specification option:

Fire rated, ETA approved fixing, RJ Facades Ltd to carry out pull out test on site to determine correct fixing.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Material

Aluminium

A1-A3 (production stage)

Normalised unit

4.9 kg CO₂ eq/kg

Declared unit

4.92 kg CO₂ eq/kg

Certified

Lower emissions

Recyclability

100% recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

99.5 %

Guidance for specification option:

Up to 99.5% recycled content for aluminium sheet, and up to 75% recycled content for extruded aluminium. These values could vary depending on where the material is sourced.

Expected Life

50 year

Product certifications

Product certifications

BS EN 13501-1

BS EN 13501-1

EN 13501-1 2018 PVDF 47μm Luxe Clad A1 Classification Report 522A

UL Certified

UL Certified

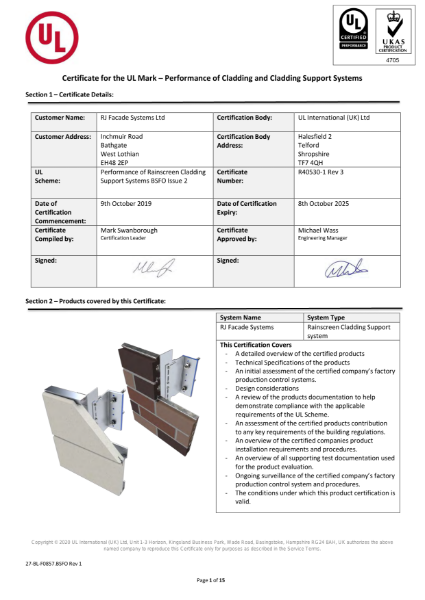

Certificate for the UL Mark – Performance of Cladding and Cladding Support Systems EVT 11

UL Certified

UL Certified

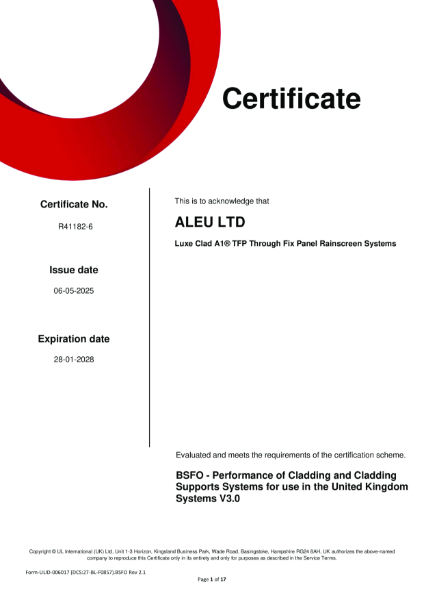

UL Enhanced Mark ‘Performance of Curtain Walling and Rainscreen Cladding Support Systems’ Luxe Clad A1®

TUV NORD

TUV NORD

UKAS ISO 14001 2015 Environmental management systems

UL Certified

UL Certified

Luxe Clad A1 - TFP - UL Mark

EPD

EPD

Luxe Clad A1 EPD

TUV NORD

TUV NORD

UKAS ISO 9001 2015 Quality management systems

Literature

Luxe Clad A1 Colour Chart

Luxe Clad A1 Colour Chart

EVT 11 Brackets

EVT 11 Brackets

System Profiles & Structural Support Profiles

System Profiles & Structural Support Profiles

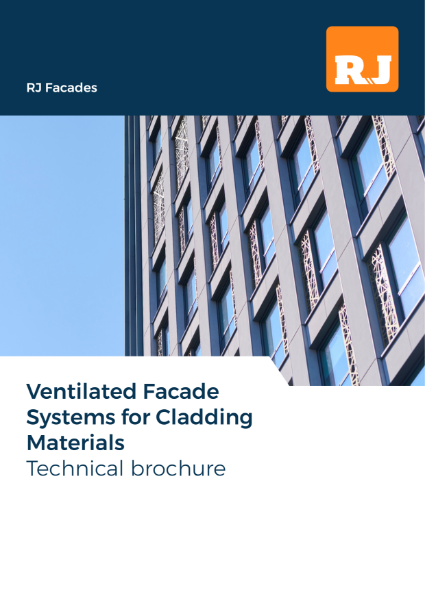

Technical brochure
