LUNOS ALD-R 160 - Wall Ventilator - Air Vent Kit
Verified by manufacturer 2 months ago
A non-electric, passive wall air vent kit providing background ventilation. It features an automatic wind regulator, pressure-based flow control, and high-performance sound absorption.
Application
- Suitable for residential applications – apartments and houses.
- Particularly suitable for use in living rooms and bedrooms.
- Suitable for new builds and retrofits.
Description
LUNOS ALD-R 160 is an outer wall air vent designed to supply fresh air to exhaust air systems for controlled home ventilation. It is equipped with wind pressure protection and a flow-optimised screen to enable draught-free, diffuse air inflow. It has three adjustable airflow levels – 15, 20, and 25 m3/h – via its internal reduction screen.
Features and benefits:
- The air volume can be adjusted as required using the volume flow screen.
- Meets the requirements of DIBt, DIN 1946-6 and 18017-3.
- Super quiet operation - good noise protection from exterior sounds.
- Internal parts revisable.

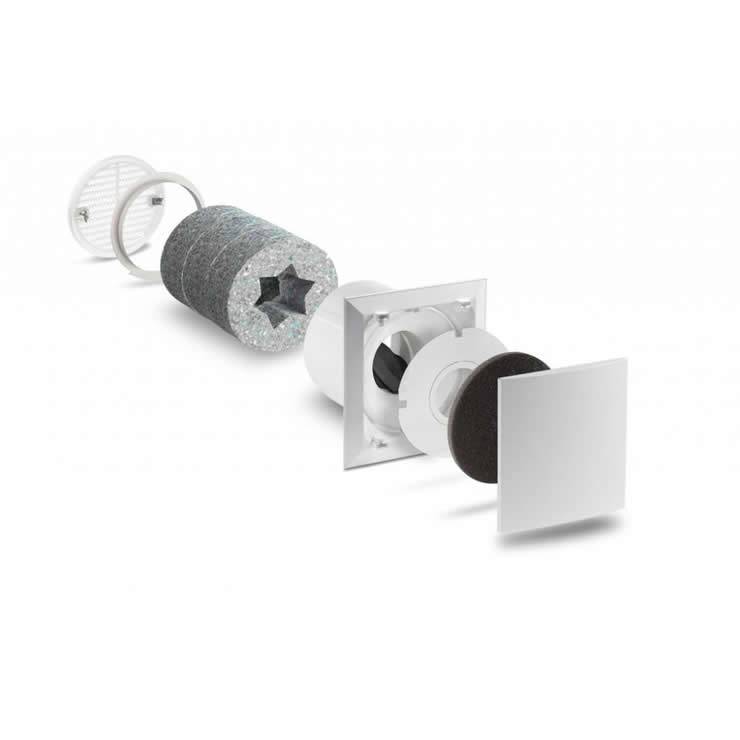

Kit includes:
- Standard inner screen white.
- Outer wall air passage.
- Wall-tubes for the series 160.
- Outer grille, white.
General information
Color | White |
Material | Plastic |
Shape | Rectangle |
Length | 360 mm Guidance for specification option: Built-in device |
Width | 154 mm Guidance for specification option: Built-in device |
Height | 154 mm Guidance for specification option: Built-in device |
Warranty description | 30 year |
Uniclass | |
CAWS | U90/340 Through wall ventilator ducts U90/340 Through wall ventilator ducts |
Product range |
Specification data - Ventilation ducts
Material | Plastics. |
Equivalent area | 4000 mm². |
AirFlowRate | 3 L/s at 2 Pa. 5 L/s at 4 Pa. 7 L/s at 8 Pa. |
Sound insulation | Standard sound level difference (wall thickness of 360 mm): 50 dB with 9/IBE, 1/WE 53 dB with 9/IBE, 1/HWE 60 dB with 9/IBE, LUNOtherm-S; Standard sound level difference (wall thickness of 500 mm): 56 dB with 9/IBE, 1/WE 57 dB with 9/IBE, 1/HWE 63 dB with 9/IBE, LUNOtherm-S. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Plastic |
Literature
LUNOS ALD-R 160 Installation Manual

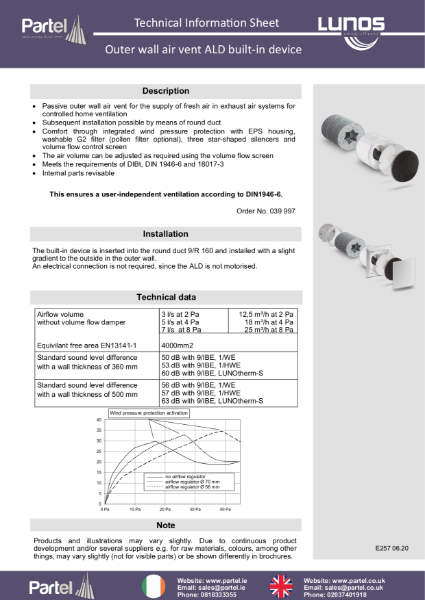

LUNOS ALD-R 160 Technical Data Sheet
Case studies

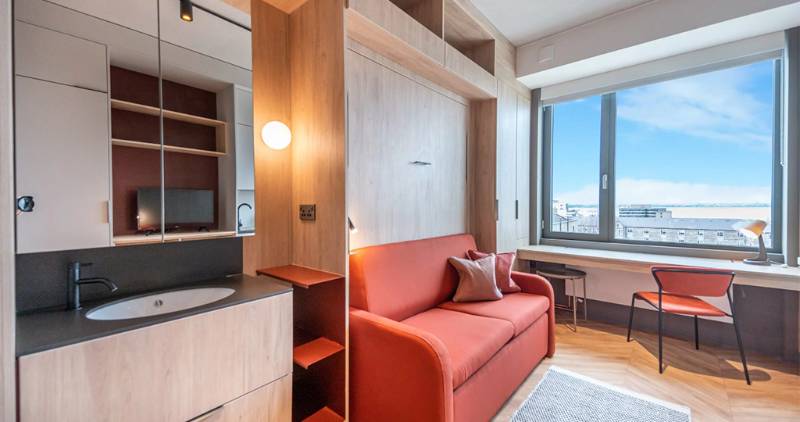

Niche Living Dun Laoghaire: Advanced Ventilation Solutions for Modern Living
