Lumi+ Electric Shower - Electric Shower
Verified by manufacturer 2 months ago

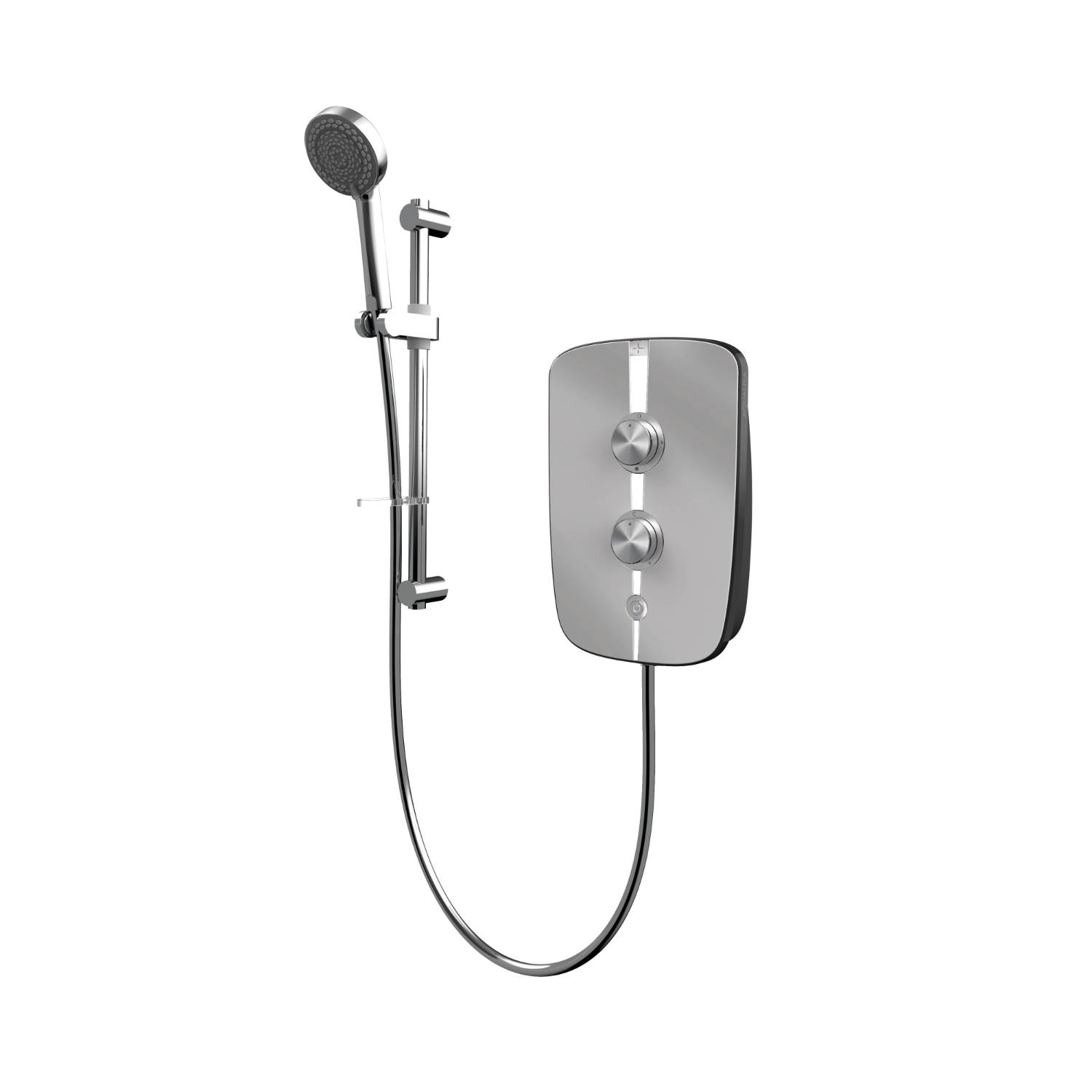

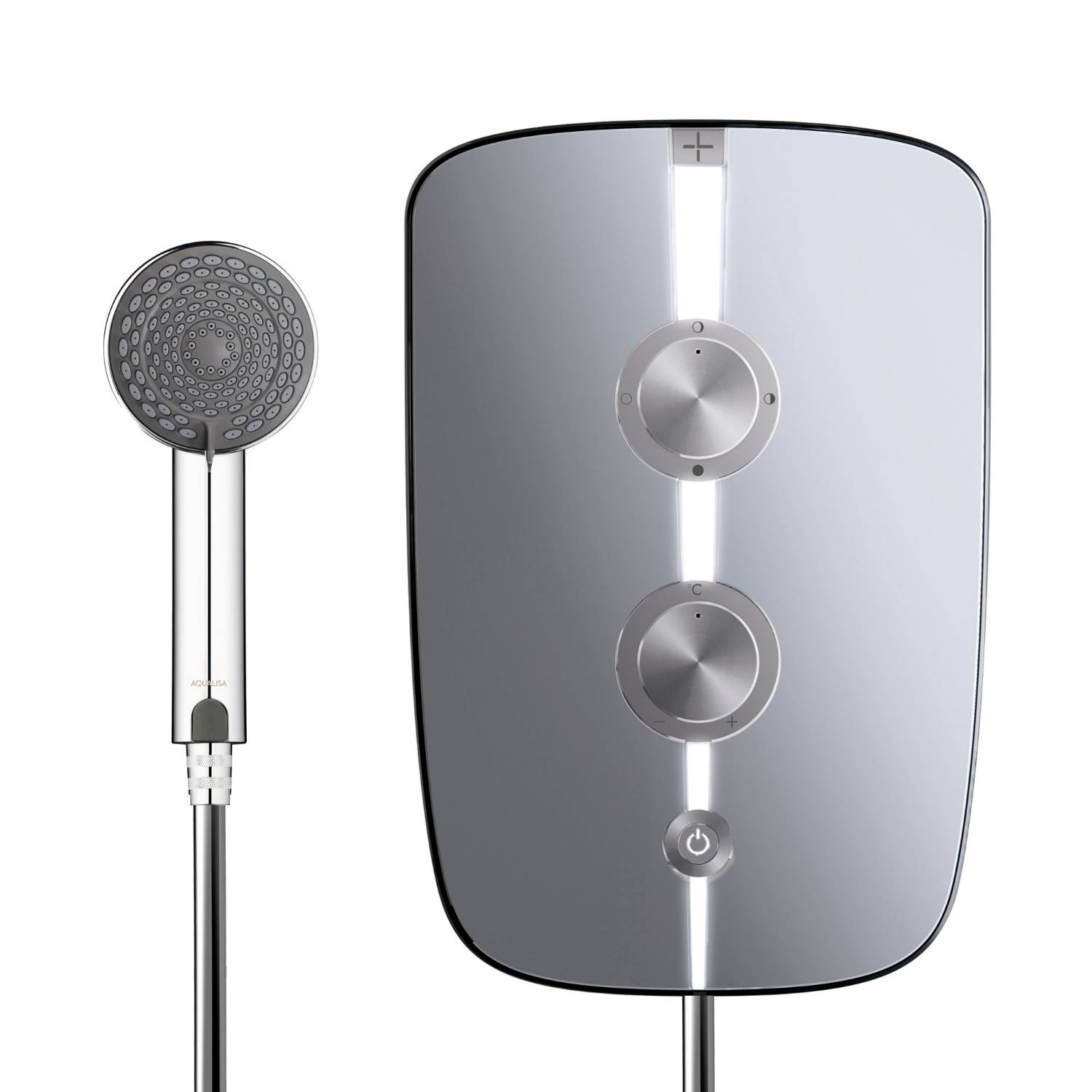

Lumi+ Electric Shower 8.5 kW
Lumi+ Electric Shower 8.5 kW
A range of electric shower units.
Application
Suitable for domestic applications in approved cold mains UK water systems.
Description
A range of electric shower units with stylish mirrored fascia and integrated light strip. Light variations up and down the vertical strip visually indicate when the shower is turning on or off and flashing will alert on low water pressure issues or whenever the over temperature safety control is activated. Three alternative power settings and an easily adjusted harmony handset with five spray patterns which further enhance the user experience. With multi-fit connection points for water and electricity, Lumi+ has a retrofit style. Available at 8.5, 9.5 and 10.5 kW rating.
Features and benefits:
- Temperature and power control dials.
- Mirrored fascia and lighting including a smooth hose.
- Illuminated push power button and low water pressure indicator.
- Three power settings.
- Universal multifit with eight water and six electric entry points.
- 105 mm Harmony handset with five spray settings.
- Rub clean nozzles and a pinch grip slider.
- Over temperature protection and phased shut down safety features.
- Retrofitable.
- Energy rating of A.
General information
Color | Silver Other Guidance for specification option: Mirrored. |
Finish | Gloss |
Material | Metal Plastic Glass |
Shape | Other |
Length | 393 mm Guidance for specification option: Controller unit. 550 mm Guidance for specification option: Rail. 1500 mm Guidance for specification option: Hose. |
Width | 263 mm Guidance for specification option: Controller unit. 25 mm Guidance for specification option: Rail. 105 mm Guidance for specification option: Handset. |
Height | 89 mm Guidance for specification option: Controller unit. |
Warranty description | Two year Guidance for specification option: Valve and kit. |
Uniclass | |
CAWS | S90/350 Instantaneous shower units, electric N13/40 Shower units N13/375 Shower units |
Specification data - Electric instantaneous shower units
Third-party certification | WRAS and BEAB-approved, ERP Directive, European Water Label, CE Marking. |
Rating | 8.5 kW.Guidance for specification option: Supply voltage 240 V. |
Flow rate | 2.7–11 L/min at 3 bar.Guidance for specification option: Minimum flow rate: 2.7–3.3 L/min; Maximum flow rate: 11 L/min. |
Operation | Phased shutdown. |
Controls | Push-button power control, low water pressure indicator, temperature dial, power control dial. |
Spray head pattern | Multiple settings.Guidance for specification option: 5 patterns. |
Colour | Mirrored. |
Accessories | Electric engine, 550 mm rail, rail ends, smooth hose, gel hanger, 105 mm handset, pinch grip slider, fixtures and fittings. |
Pressure | 1–3 bar. Guidance for specification option: Recommended. Minimum pressure: 0.85 bar; Maximum pressure: 10 bar. |
InletConnectionSize | 15 mm Compression or push fit elbow. |
OutletConnectionSize | 1/2" BSP. |
Weight | 3.45 kg. |
Water supply | 5–20°C. |
Sustainability data
Country of product manufacture | Guidance for specification option: China. United Kingdom. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Similar products from Aqualisa Products Ltd

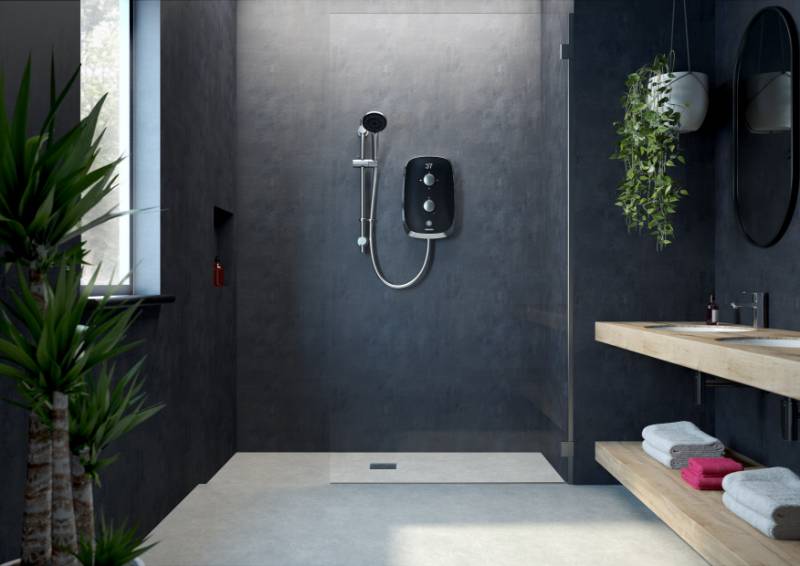

eVOLVE Electric Shower

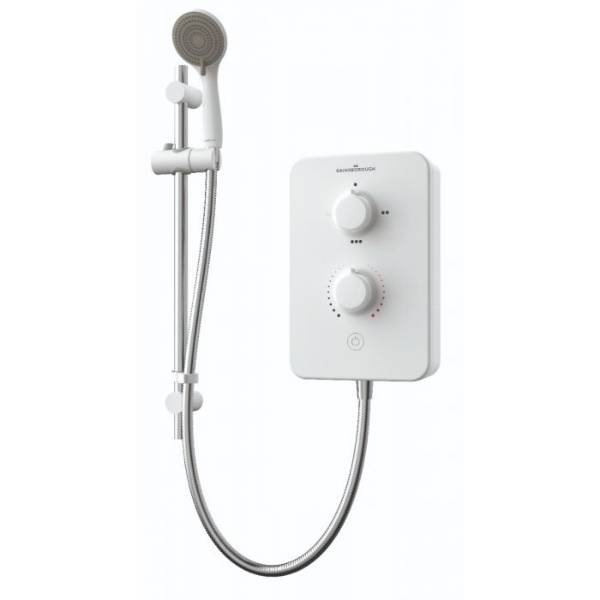

Gainsborough Slim Electric Shower
