Application

Suitable for use in all approved domestic UK water systems.

Description

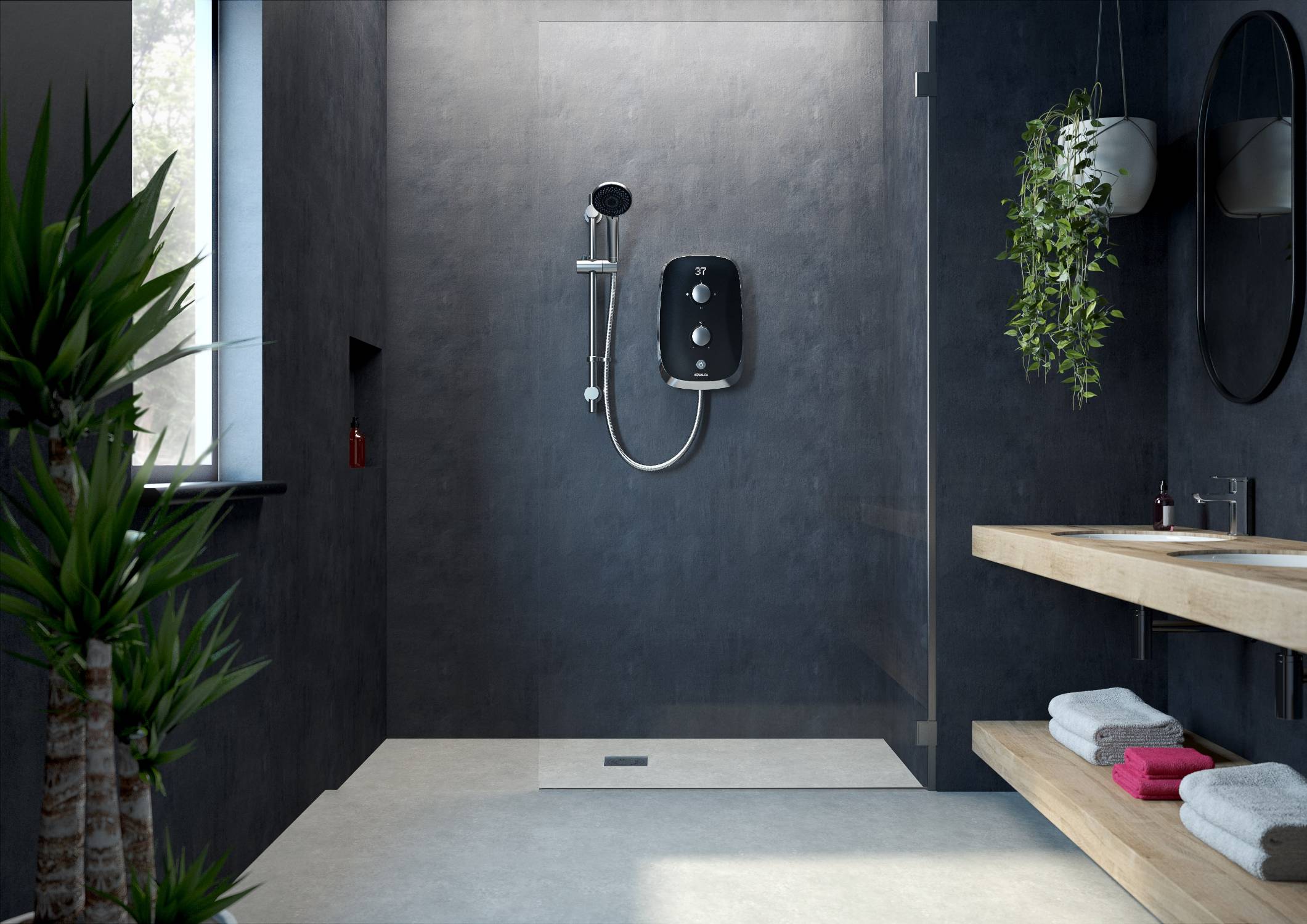

The eVOLVE Electric Shower offers efficient, eco-friendly showering, with simple controls delivering an instant shower with no demand on stored hot water.


The shower features a digital temperature display and control dial, satin silver trim, illuminated push power button and low water pressure indicator, three power settings, stainless steel hose, universal multi-fit: eight water and electric entry points, 105 mm flow handset with three spray settings, rub clean nozzles and a push button slider, over temperature protection and phased shut down safety features. Choose from Arctic White, Space Grey or Midnight Black.


Features and benefits:

  • Retrofitable for most electric shower units.
  • Alternative power settings and three spray patterns.
  • A separate temperature control smoothly adjusts to the required level.
  • Automatic phased shutdown reduces limescale build-up for better performance and product durability.
  • Connect to the existing domestic supply (at 240 V).

General information

Color

Black

White

Grey

Silver

Finish

Satin

Chrome

Material

Stainless steel

Shape

Other

Length

305 mm

Guidance for specification option:

Shower unit.

600 mm

Guidance for specification option:

Slide rail.

Width

239 mm

Height

89 mm

Warranty description

Two year

Guidance for specification option:

Shower unit, shower head and kit.

Uniclass

Pr_60_60_96_26 Electric instantaneous shower unitsPrimary

CAWS

S90/350 Instantaneous shower units, electric

S90/350 Instantaneous shower units, electric

N13/40 Shower units

N13/375 Shower units

Specification data - Electric instantaneous shower units

Third-party certification

WRAS and BEAB-approved, European Water Label.

Rating

8.5 kW.

Guidance for specification option:

  • Supply voltage 230–240 V.
  • MCB rating: 40A.

Flow rate

2.99–5.09 L/min at 37°C.

Guidance for specification option:

Depending on cold water mains inlet temperature and power setting. Consult manufacturer for details.

Operation

Phased shutdown.

Controls

Start/ stop button, rotary power control, variable temperature dial, low pressure indicator, digital temperature display.

Spray head pattern

Three spray settings.

Colour

Midnight black (VOTZ25).

Artic white (VOPZ25).

Space grey (VOXZ25).

Accessories

105 mm handset with rub clean nozzles, chrome plated stainless steel 1500 mm hose, push button slider.

Pressure

1–3 bar.

Guidance for specification option:

Recommended.

Minimum pressure: 0.85 bar; Maximum pressure: 10 bar.

InletConnectionSize

15 mm compression or push fit elbow.

OutletConnectionSize

1/2” BSP.

Sustainability data

Country of product manufacture

United Kingdom
