Lugano 80 mm Block Paving (Cliffe)

Verified by manufacturer 4 months ago

200 x 100 x 80 mm

Brett Landscaping Variant:

Precast concrete paving blocks.

Jump to:
+44 (0)345 60 80 570 Website

Application

Domestic and commercial use; hardstanding for vehicular and pedestrian pavements including footpaths, cycle tracks, driveways, adoptable highways, commercial pavements, roof top and balcony applications.

Description

Precast concrete paving blocks to BS EN 1338: 2003.


Features and benefits:

  • Manufacturing process: Semi dry pressed and vibrated concrete.
  • Incorporates 80 mm Lugano.
  • Textured finish.
  • Colour graphite grey, misty grey.
  • BREEAM - Concrete Block Paving. CBP 80 mm: B rating, as per the BRE Green Guide, 4th Edition 2009, A rating can be achieved when used in conjunction with a prepared recycled sub-base.

General information

Color

Grey

Guidance for specification option:

Graphite Grey or Misty Grey.

Finish

Textured

Material

Concrete

Shape

Rectangle

Length

200 mm

300 mm

Width

100 mm

200 mm

Height

80 mm

Uniclass

Pr_25_93_60_17 Concrete paving blocksPrimary

CAWS

Q24/112 Conventional concrete block paving with bound base

Q24/113 Conventional concrete block paving overlay

Q24/10 Conventional concrete block paving

Q24/110 Conventional concrete block paving

Specification data - Concrete paving blocks

Standard

To BS EN 1338.

Physical properties

-

Colour

Misty grey.

Graphite grey.

Finish

Textured.

Profile

-

Paver type

Regular plan form.

Dimensions and associated tolerances

-

Nominal sizes

200 x 100 x 80 mm.

Abrasion resistance

Class 3.

Guidance for specification option:

≤23 mm - Determined by Wide Wheel Abrasion Test.

Slip resistance

USRV to BS EN 1338 ≥55.

Guidance for specification option:

Potential for slip - Low.

TensileStrength

≥3.6 Mpa.

Manufacturer guidance

Characteristic tensile splitting strength.

Load

≥250 N/mm.

Manufacturer guidance

Failing load.

Durability

Class 3 (≤1.0 kg/m²).

Guidance for specification option:

With no individual result ≤1.5 kg/m².

Reaction to fire

Class A1.

Guidance for specification option:

  • When used for internal flooring.
  • External performance deemed to satisfy.

ThermalConductivity

1.2 W/(mK).

Unit weight

3.86 kg.

Tolerances

Thickness ± 3 mm; plan size ± 2 mm.

Standards

To BS 7533-101: 2021 (design); to BS 7533-3: 2005 + A1: 2009.

Literature

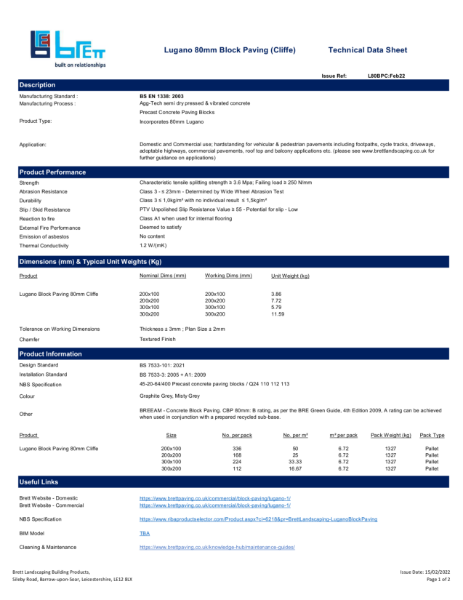

Lugano 80 mm Block Paving (Cliffe)
