LPS1175 Security Rated Pedestrian Control Terra Diamond Turnstile, SR3 & SR4

Verified by manufacturer 4 months ago

Frontier Pitts Ltd Third party certifications:
  • BRE Certificate

    BRE Certificate

    Certificate type

  • Secured By Design

    Secured By Design

    Certificate type

High security pedestrian turnstile.

Jump to:
+44 (0)1293 548301 Website

Application

Suitable for access through a perimeter fence line. Approved for government use, contact CPNI for details.

Description

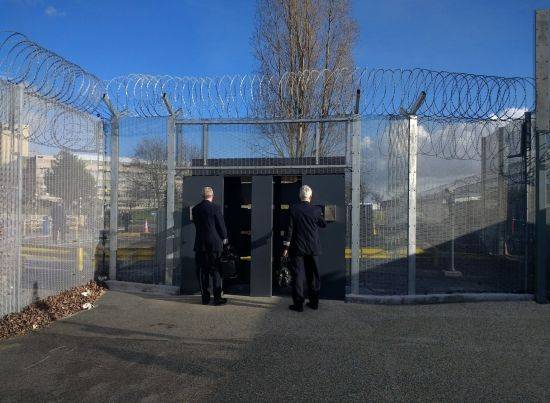

The LPS1175 Security Rated Pedestrian Control Terra Diamond turnstile is a heavy-duty, high-security turnstile designed to withstand extreme pedestrian attack.


The Terra Diamond Turnstile has resisted an intensive attack test programme per LPS 1175, which involved a series of attack tests, each lasting at least ten minutes using a wide array of hand and battery-powered tools. It is manufactured from robust carbon steel. The turnstile allows only single-file, authorized access and includes an anti-return solenoid lock and status indicator with a red and green light.


It has a heavy-duty, vandal-resistant head mechanism with a metal reinforced high-security lid and is set to fail secure in the event of power failure.


Features and benefits:

  • Red book listing.
  • Secured by Design accredited.

General information

Color

-

Manufacturer guidance

To a BS or RAL number.

Finish

Painted

Guidance for specification option:

Shot blasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a BS or RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493.

Material

Steel

Shape

Other

Guidance for specification option:

Turnstile.

Width

500 mm

Height

2020 mm

Warranty description

One year

Uniclass

Pr_30_59_34_13 Carbon steel full-height turnstilesPrimary

CAWS

Q50/160 Turnstile

Product range

LPS1175 Forced Entry Gates & Barriers

Specification data - Carbon steel full-height turnstiles

Rotation

90 degree/ 4 section walkway.

Control unit

Required.

Guidance for specification option:

Can be linked to any access control.

Leaves and surrounds

-

Manufacturer guidance

High Security, CPNI approved.

Finish as delivered

-

Worked finish

Shot blasted.

Applied finish

Polyurethane painted.

Guidance for specification option:

Hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a BS or RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493.

Access control

Audio intercom.

Card reader.

Digital keypad.

GSM intercom.

Push button.

Arrangement

Four - 90°.

Closer

Anti-return solenoid lock.

Colour

-

Manufacturer guidance

Insert BS or RAL requirement.

Fixing

Floor mounted.

Security rated fence line integration.

Type

Single.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

BRE Certificate

BRE Certificate

Terra Diamond Turnstile Certificate: LPS1175/C1059a/03

Secured By Design

Secured By Design

Secured by Design accredited
