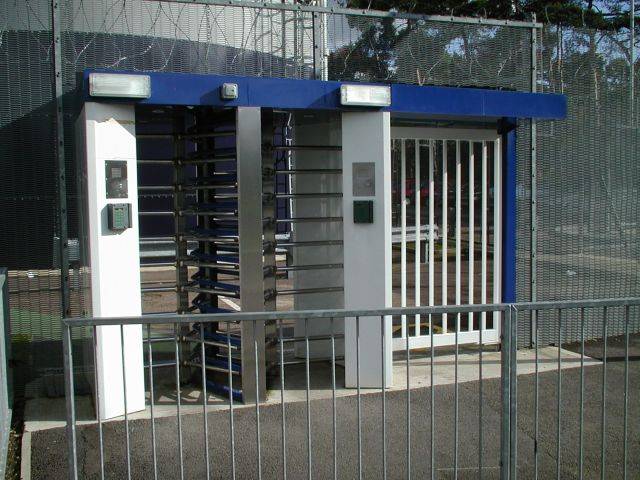

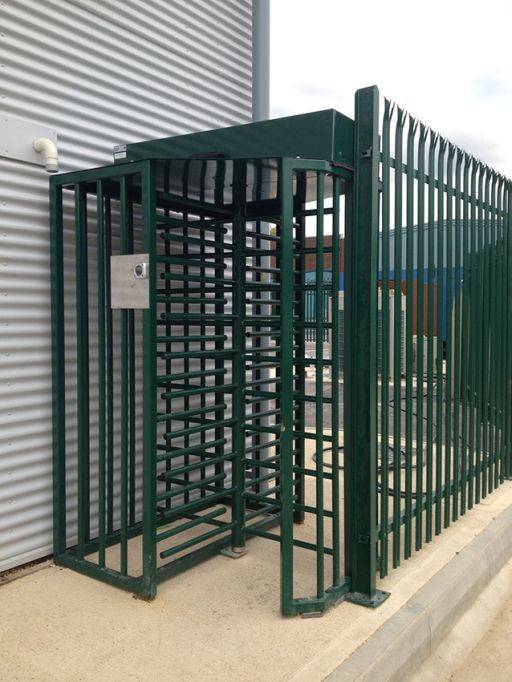

Full Height Turnstile FPT1 Single Rotor - Full Height Pedestrian Turnstile
Verified by manufacturer 3 months ago
Full Height Turnstile FPT1 Single Rotor with parametric values for rotor degrees, accessories and controls.
Application
Suitable for access through a perimeter fence line.
Description
A perimeter full height turnstile (model FTP1) available as single or twin-cage versions. Fully welded from carbon steel sections and include a carbon steel rotor (stainless steel rotor optional), available in either three or four section forms. Hydraulic clamping units are fitted to prevent the rotor slamming, enhancing operation and increasing reliability. In an emergency, the turnstiles can be set to either failsafe or fail secure.
Features and benefits:
- Bespoke manufacturing available.
General information
Finish | Painted Guidance for specification option: Shotblasted, hot zinc sprayed, primed and finished with final coat of polyurethane paint. |
Material | Steel |
Shape | Other |
Warranty description | One year |
Uniclass | |
CAWS | L20/500 Manual revolving doors Q50/160 Turnstile |
Product range |
Specification data - Carbon steel full-height turnstiles
Rotation | 90° or 120°. |
Leaves and surrounds | Bar surround. |
Finish as delivered | |
Worked finish | Shot blasted. |
Applied finish | Polyurethane painted.Guidance for specification option: Hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a BS or RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493. |
Colour | Guidance for specification option: Insert BS or RAL requirement. |
Fixing | Floor mounted. |
Canopy | Carbon steel. |
Actuation | Manual. Semi-automatic. |
Access control | Audio intercom. Card reader. Digital keypad. GSM intercom. HMI – Human machine interface. |
Accessories | None. Walkway lighting. |
Arrangement | Three – 120°. Four – 90°. |
Type | Single. Twin. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 1 |
 Revit | Revit 2016 | 2 |
Literature
Pedestrian Control Turnstiles & Gates
