Lozenge Anti-Skate Stud

Verified by manufacturer 5 months ago

Studmarc

Lozenge anti-skate stud.

Jump to:
BOS
+44(0)1686 807 450 Website

Application

These studs can be installed on:

  • Walls.
  • Benches.
  • Steps.
  • Planters.
  • Various street furniture.


Description

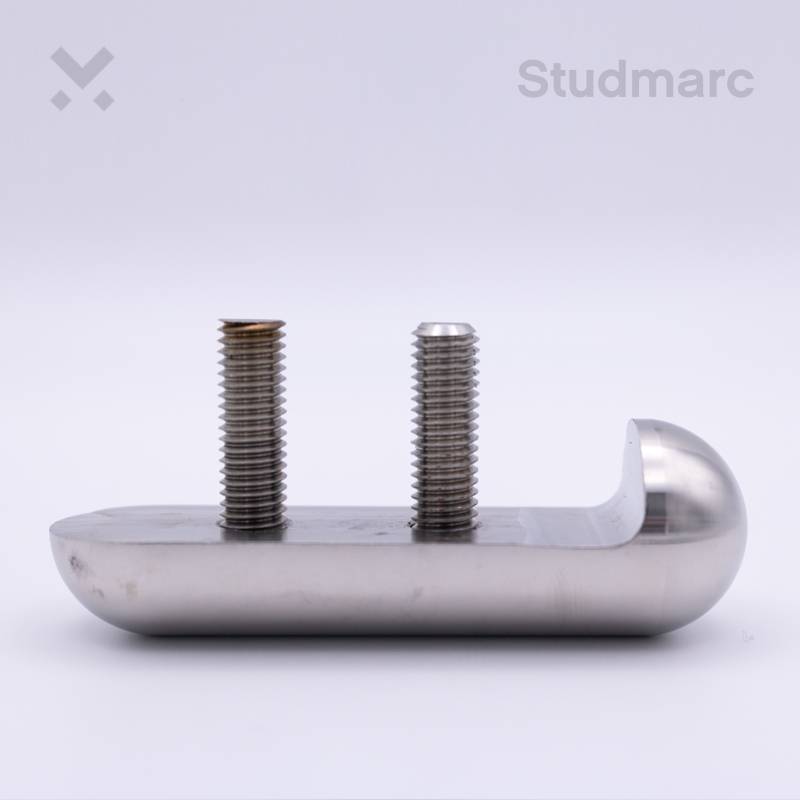

This Lozenge anti-skate stud is manufactured from 1.4404 (316L) stainless steel and has a machine-polished finish. They’re designed to sit flush on walls, planters, or furniture with a 4 mm radius as standard, blending seamlessly into the surrounding aesthetic. They make an ideal skate deterrent as they block off straight lines skaters may look to grind on, and keep the furniture or walls in their original condition.


The studs sport a lozenge-shaped design with a rounded head. The stud extends backwards, lying flat on any surface it's installed on. The length of the stud ensures that a good proportion of the wall or furniture is covered preventing those that would look to skate on it from damaging the surface. There are two equal-length M8 studs for added stability and longevity.


Alternate sizing is available with the bespoke product service.


Bespoke sizing guide:

  • Fixing pin length: 25–100 mm.
  • Inner radius: 0.5–60 mm.


Finishing options:

  • Bright polish.
  • Sandblasted.
  • Aluminium anodized to any RAL colour.


Available material options:

  • Brass.
  • 1.4301 (304) Stainless Steel.
  • Anodized Aluminium.


Features and benefits:

  • Modern design.
  • Easy drill and resin installation.
  • Vandal-proof flush fit.
  • Weatherproof 1.4404 (316L) stainless steel.

General information

Color

Silver

Finish

Satin

Natural

Sandblasted

Polished

Anodized

Material

Stainless steel

Shape

Other

Length

80 mm

Bespoke

Width

25 mm

Guidance for specification option:

Diameter

Bespoke

Height

12.5 mm

Bespoke

Warranty description

Lifetime

Uniclass

Pr_35_90_60_77 Skateboard deterrent devicesPrimary

Specification data - Skateboard deterrent devices

Material

Aluminium.

Brass.

Stainless Steel (1.4301/ 304).

Stainless Steel (1.4404/ 316L).

Profile

Lozenge.

Size

25 mm diameter.

Bespoke.

Guidance for specification option:

Bespoke sizing (diameter, length, height, internal radius) also available. Consult manufacturer and insert requirements.

Manufacturer guidance

Radius can be bespoke to suit edge of base product.

Finish:

Anodized, RAL.

Guidance for specification option:

Aluminium anodized to any RAL colour. Consult manufacturer for details and insert requirements.

Bright polish.

Burnt.

Sandblasted.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Recyclability

Should the need to recycle the studs arise, all material options can be melted down and reused again.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

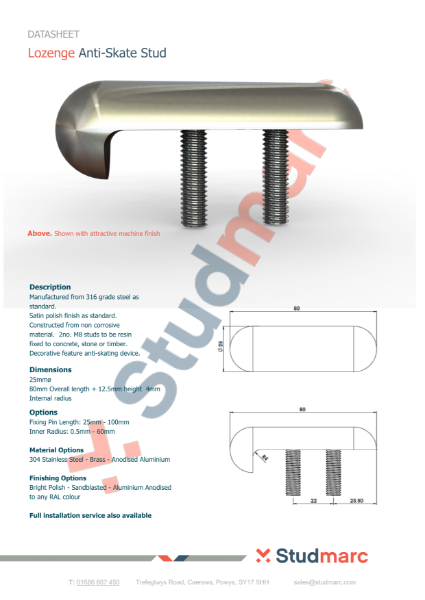

Anti-Skate Lozenge Stud - Datasheet

Anti-Skate Lozenge Stud - Datasheet
