Hemisphere Anti-Skate stud.

Jump to:
BOS
+44(0)1686 807 450 Website

Application

These studs can be installed on:

  • Walls.
  • Benches.
  • Steps.
  • Planters.
  • Various street furniture.

Description

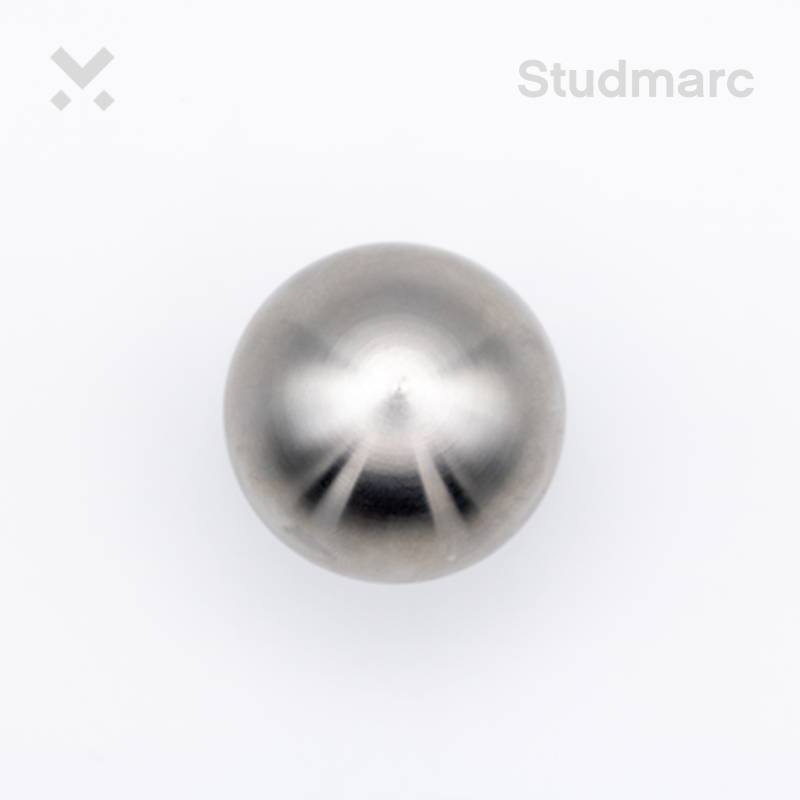

This Hemisphere anti-skate stud is manufactured from 1.4404 (316L) stainless steel and has a machine-polished finish. They’re designed to sit flat next to the edges of walls, planters, or furniture, blending seamlessly into the surrounding aesthetic. They make an ideal skate deterrent as they block off straight lines skaters may look to grind on, and keep the furniture or walls in their original condition. Due to the lack of any internal radius, the Hemisphere anti-skate stud is ideal for a retrofit deterrent.

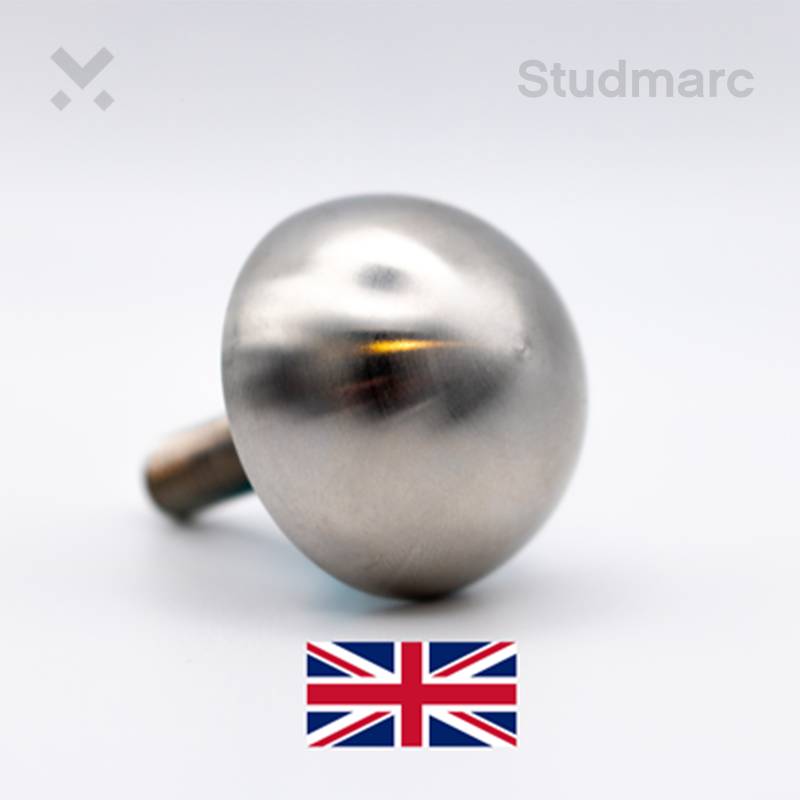

The stud sports a dome-shaped design that, when installed, sits flat on the edges of walls, benches, or steps. The design is very neat and self-contained, simply covering the edge of a surface and preventing skaters from grinding on it. The hemisphere anti-skate stud doubles up as a great modern design feature.


Alternate sizing are available with the bespoke product service.


Bespoke sizing guide:

  • Diameter: 20–50 mm.
  • Stud head height: 20–50 mm.
  • Fixing pin length: 25–100 mm.


Finishing options:

  • Bright polish.
  • Sandblasted.
  • Burnt.
  • Aluminium anodized to any RAL colour.


Available material options:

  • Brass.
  • 1.4307 (304L) Stainless Steel.
  • Aluminium.


Features and benefits:

  • Modern design.
  • Easy drill and resin installation.
  • Vandal-proof flush fit.
  • Weatherproof 1.4404 (316L) stainless steel.

General information

Color

Silver

Finish

Polished

Anodized

Sandblasted

Natural

Satin

Show more

Material

Stainless steel

Brass

Bronze

Aluminium

Length

57.5 mm

Bespoke

Width

35 mm

Guidance for specification option:

Diameter

Bespoke

Height

27.5 mm

Bespoke

Warranty description

Lifetime

Uniclass

Pr_35_90_60_77 Skateboard deterrent devicesPrimary

Specification data - Skateboard deterrent devices

Material

Aluminium.

Anodized Aluminium.

Brass.

Bronze.

Stainless steel (1.4307/ 304L).

Stainless steel (1.4404/ 316L).

Profile

Hemisphere.

Size

35 x 57.5 mm.

Manufacturer guidance

Diameter option: 25–75 mm. Insert requirements.

Threaded fixing stud length: 25–80 mm.

Finish:

Anodized.

Bright Polish.

Sandblasted.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Recyclability

Should the need to recycle the studs arise, all material options can be melted down and reused again
