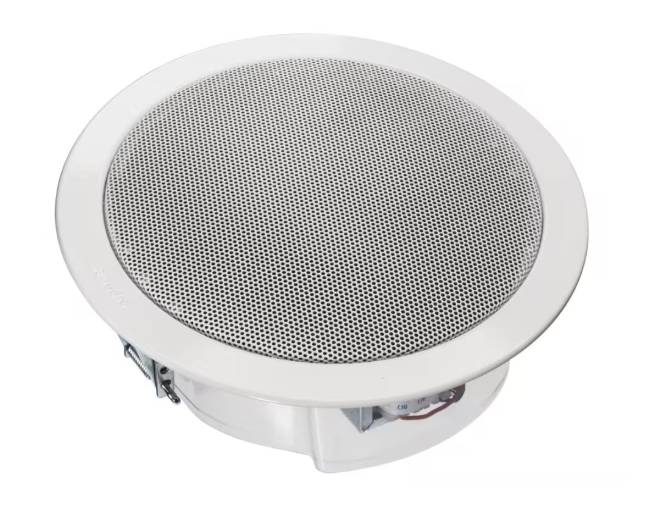

Low profile 6 W 6.5" EN54-24 Ceiling Loudspeaker - 582408.SAFE - Ceiling Loudspeaker

Verified by manufacturer 3 days ago

Honeywell Voice Alarm

6 W, 6.5" metal ceiling loudspeaker to EN 54-24.

Jump to:
+44 (0) 203 409 1779 Website

Application

Suitable for ceiling mounting where shallow voids make itdifficult to mount ceiling loudspeakers with deep fire domes.

Description

With its flat form, these novel type 582408-SAFE (DL-E 06-165/T-EN 54.SAFE) is optically a good fit for ceilings for which they were designed. The SAFE versions are equipped with a pre-mounted ceramic terminal and a thermal fuse. The 6.5" broadband loudspeaker chassis, which is impregnated against humidity, distinguishes itself by way of its high degree of effectiveness.

Features and benefits:

  • 6 W, 3 W, or 1.5 W power setting can be selected.
  • The spring latch (3 pieces) guarantees an uncomplicated and quick mounting onto the ceiling.
  • Equipped with a pre-mounted ceramic terminal and a thermal fuse.
  • White in colour (similar to RAL 9003).
  • A protective cover made out of a synthetic material is mounted to the back side of the loudspeaker.
  • A fire dome certified according to the EN 54 Part 24 standard is optionally available and is necessary in projects that require compliance with BS 5859-8.
  • Complies with requirements of BS 5859 Part 8, and is certified in accordance with EN 54 Part 24-24.

General information

Color

White

Finish

Powder-coated

Material

Metal

Shape

Circle

Length

72 mm

Width

200 mm

Height

200 mm

Uniclass

Pr_75_75_94_15 Ceiling-mounted voice alarm loudspeakersPrimary

CAWS

V90/430 Electrical accessories

SKU Code

582408.SAFE

Specification data - Ceiling-mounted voice alarm loudspeakers

Classification data

Standard

To BS EN 54-24.

Diameter

6.5".

Frequency response

300 Hz–19.3 kHz.

Rated power

6 W.

Rated voltage

100 V.

Dispersion

180° @ 1 kHz.

Sound power level (minimum)

97.8 dB @ 1W/ 1 m.

Guidance for specification option:

Sensitivity EN 54-24, max 1 m: 105.3 dB.

Manufacturer guidance

Sensitivity EN 54-24, 1 W / 1 m.

Transformer tappings

1.5 W.
3 W.
6 W.

Enclosure

-

Material

Metal.

Colour

White.

Environmental requirements

Ambient temperature -10 to 55°C.

Protective grille

Synthetic material.

Cable connections

-

Type

Ceramic terminal block.

Short circuit protection

Thermal fuse.

Weight

0.76 kg.

Integral accessories

Not required.
Fire dome - 582408.FD.

Guidance for specification option:

  • Prevents the chimney suction effect with hanging ceilings in case of a fire.
  • Approval as per EN 54-24.
  • Colour: black.
  • Weight: 0.39 mm.
  • Dimensions: 155 mm diameter, 87 mm depth.

Sustainability data

Material

Metal

Literature

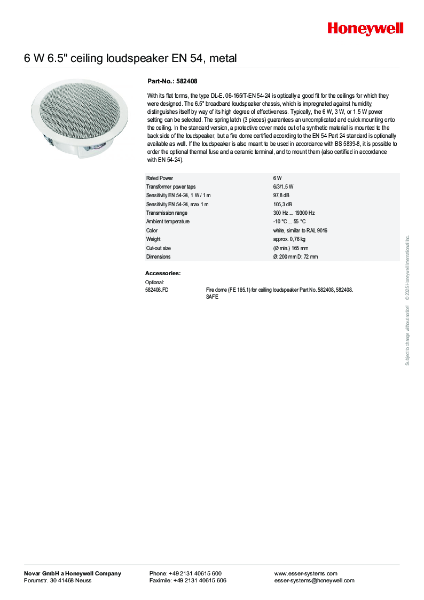

582408 6 W 6.5" Ceiling Loudspeaker EN54-24

582408 6 W 6.5" Ceiling Loudspeaker EN54-24

VARIODYN ONE - EN54 Certified Voice Alarm Systems Brochure

VARIODYN ONE - EN54 Certified Voice Alarm Systems Brochure
