6 W 6.5"EN54-24 Ceiling Loudspeaker - 582408 - Ceiling Loudspeaker
Verified by manufacturer 3 days ago

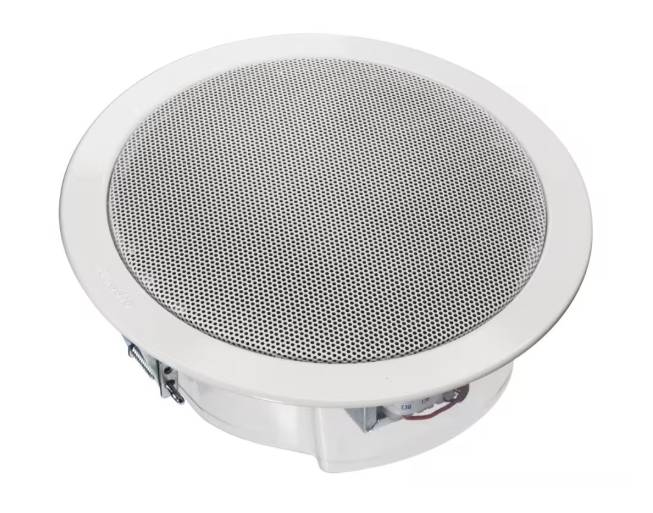

6 W, 6.5" metal ceiling loudspeaker to EN 54-24.
Application
Suitable for ceiling mounting.
Description
With its flat forms, the type 582408 (DL-E. 06-165/T-EN 54-24) is optically a good fit for the ceilings for which they were designed. The 6.5" broadband loudspeaker chassis, which is impregnated against humidity, distinguishes itself by way of its high degree of effectiveness.
Features and benefits:
- 6 W, 3 W, or 1.5 W power setting can be selected.
- The spring latch (3 pieces) guarantees an uncomplicated and quick mounting onto the ceiling.
- A protective cover made out of a synthetic material is mounted to the back side of the loudspeaker.
- A fire dome certified according to the EN 54 Part 24 standard is optionally available.
- White in colour (similar to RAL 9003).
- Complies with requirements of BS 5859 Part 8, and is certified in accordance with EN 54 Part 24-24.
General information
Color | White |
Finish | Powder-coated |
Material | Metal |
Shape | Circle |
Length | 72 mm |
Width | 200 mm |
Height | 200 mm |
Uniclass | |
CAWS | V90/430 Electrical accessories |
SKU Code | 582408 |
Specification data - Ceiling-mounted voice alarm loudspeakers
Classification data | |
Standard | To BS EN 54-24. |
Diameter | 6.5". |
Frequency response | 300 Hz–19.3 kHz. |
Rated power | 6 W. |
Rated voltage | 100 V. |
Dispersion | 180° @ 1 kHz. |
Sound power level (minimum) | 97.8 dB @ 1 m. Guidance for specification option: Sensitivity EN 54-24, max 1 m: 105.3 dB. Manufacturer guidanceSensitivity EN 54-24, 1 W / 1 m. |
Transformer tappings | 1.5 W. 3 W. 6 W. |
Enclosure | |
Material | Metal. |
Colour | White. |
Environmental requirements | Ambient temperature -10 to 55°C. |
Protective grille | Synthetic material. |
Cable connections | |
Type | Not required. Ceramic terminal block. |
Short circuit protection | Not required. Thermal fuse. |
Weight | 0.76 kg. |
Integral accessories | Not required. Fire dome - 582408.FD. Guidance for specification option:
|
Sustainability data
Material | Metal |
