24 W 6.5" 2-way (Coaxial) Ceiling Loudspeaker, EN54-24 - 582480 - Ceiling Loudspeaker
Verified by manufacturer 3 days ago
Intertek
Certificate type

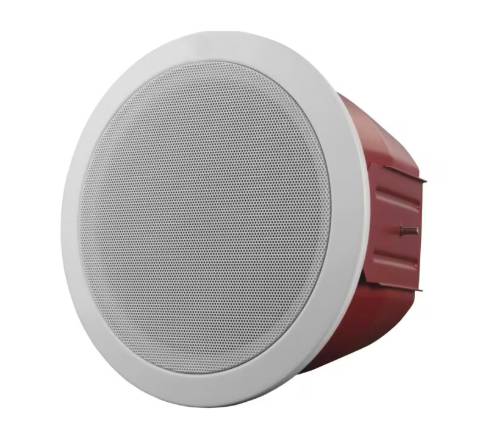

24 W, 6.5" metal two-way ceiling loudspeaker to EN 54-24
Application
Suitable for demanding sound applications such as corridors, Railways stations, outdoor applications
Description
The 6.5" Coaxial ceiling loudspeaker with its two-way system features an excellent sound quality. It offers a broad frequency range and a high sound pressure level, thereby guaranteeing excellent music and speech reproduction. It is eminently suitable for demanding sound applications.
Features and benefits:
- Excellent sound quality, music and speech reproduction.
- The ceramic terminal block and the thermal fuse increase the protection for the loudspeaker lines.
- The driver unit is impregnated against moisture.
- White in colour (similar to RAL 9003).
- Complies with standard BS 5859 Part 8, and is certified in accordance with EN 54 Part 24.
General information
Color | White |
Finish | Powder-coated |
Material | Metal |
Shape | Circle |
Length | 129 mm |
Width | 226 mm |
Height | 226 mm |
Uniclass | |
CAWS | V90/430 Electrical accessories |
SKU Code | 582480 |
Specification data - Ceiling-mounted voice alarm loudspeakers
Classification data | |
Standard | To BS EN 54-24. |
Diameter | 6.5". |
Frequency response | 120 Hz–20 kHz. |
Rated power | 24 W. |
Rated impedance | 0.24 kΩ. 0.83 kΩ. 1.67 kΩ. 3.33 kΩ. |
Dispersion | 165° horizontal 167° vertical @ 1 kHz. |
Sound power level (minimum) | 91 dB @ 1 m. Guidance for specification option: Sensitivity EN 54-24, max 1 m: 103 dB. Manufacturer guidanceSensitivity EN 54-24, 1 W / 1 m. |
Transformer tappings | 3 W. 6 W. 12 W. 24 W. |
Enclosure | |
Material | Metal. |
Colour | White. |
Environmental requirements | Ambient temperature -20 to 55°C. Storage temperature -40 to 70°C. Air humidity 0 to 95%. |
Cable connections | |
Type | Ceramic terminal block. |
Short circuit protection | Thermal fuse. |
Knock-outs | Two no. 20 mm, on fire dome. |
Weight | 2.25 kg. |
Sustainability data
Material | Metal |
Product certifications
Intertek

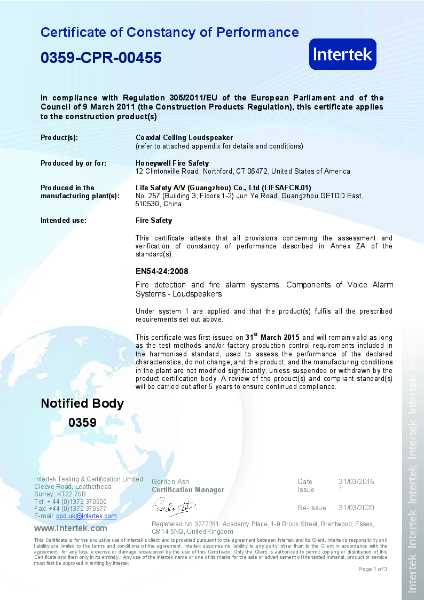

582480 En54-25 Certificate of Conformity
Literature
Literature type

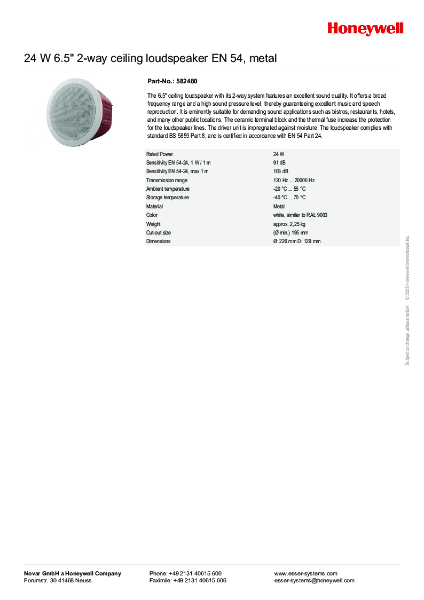

582480 24 W 6.5" 2-way (Coaxial) Ceiling Loudspeaker, EN54-24
VARIODYN ONE - EN54 Certified Voice Alarm Systems Brochure
