6 W 5" EN54-24 Ceiling Loudspeaker with Fire Dome - LSC-506 - Ceiling Loudspeaker
Verified by manufacturer 3 days ago
Intertek
Certificate type

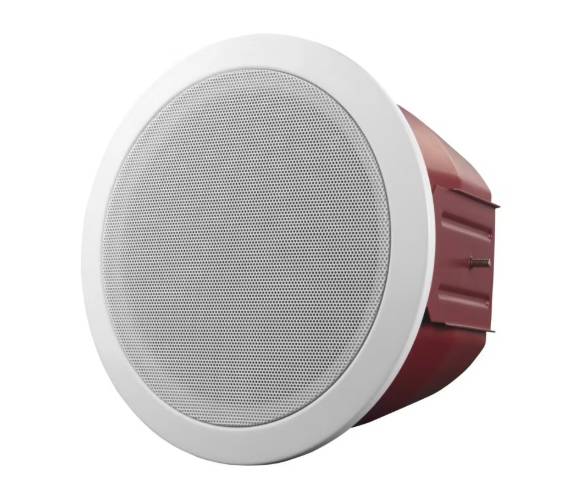

6 W, 5" metal ceiling loudspeaker to EN 54-24 with fire dome.
Application
Voice alarm ceiling loudspeaker specifically designed for use in buildings where performance of systems for voice evacuation announcements is governed by regulations
Description
This voice alarm ceiling loudspeaker is specifically designed for use in buildings where performance of systems for voice evacuation announcements is governed by regulations. The appearance and neutral white RAL 9003 colour have been selected to be unobtrusive in virtually all interiors. For additional safety, this EN 54-24 ceiling loudspeaker features a ceramic terminal block and a thermal fuse.
Features and benefits:
- Designed for flush mounting in suspended ceiling.
- Particularly suitable for even sound distribution.
- Unobtrusive.
- The fire dome increases protection of the cable termination.
- The driver unit is impregnated against moisture.
- Features a ceramic terminal block and a thermal fuse for additional safety.
- White in colour (similar to RAL 9003) with red (RAL3000) fire dome
- Complies with requirements of BS 5859 Part 8, and is certified in accordance with EN 54 Part 24-24.
General information
Color | White Red |
Finish | Powder-coated |
Material | Metal |
Shape | Circle |
Length | 129 mm |
Width | 181 mm |
Height | 181 mm |
Uniclass | |
CAWS | V90/430 Electrical accessories |
SKU Code | LSC-506 |
Specification data - Ceiling-mounted voice alarm loudspeakers
Classification data | |
Standard | To BS EN 54-24. |
Diameter | 5". |
Frequency response | 180 Hz–20 kHz. |
Rated power | 6 W. |
Rated impedance | 1.7 kΩ. 3.3 kΩ. 6.7 kΩ. 13 kΩ. |
Dispersion | 173° horizontal 174° vertical @ 1 kHz. |
Sound power level (minimum) | 91 dB @ 1W/ 1 m. Guidance for specification option: Sensitivity EN 54-24, max 1 m: 99 dB. Manufacturer guidanceSensitivity EN 54-24, 1 W / 1 m. |
Transformer tappings | 0.75 W. 1.5 W. 3 W. 6 W. |
Enclosure | |
Material | Metal. |
Colour | White and red. |
Environmental requirements | Ambient temperature -25 to 55°C. Storage temperature -40 to 70 °C. Air humidity <95%. |
Cable connections | |
Type | Ceramic terminal block. |
Short circuit protection | Thermal fuse. |
Knock-outs | Two no. 20 mm, on fire dome. |
Weight | 1.29 kg. |
Integral accessories | Fire dome. |
Sustainability data
Material | Metal |
Product certifications
Intertek

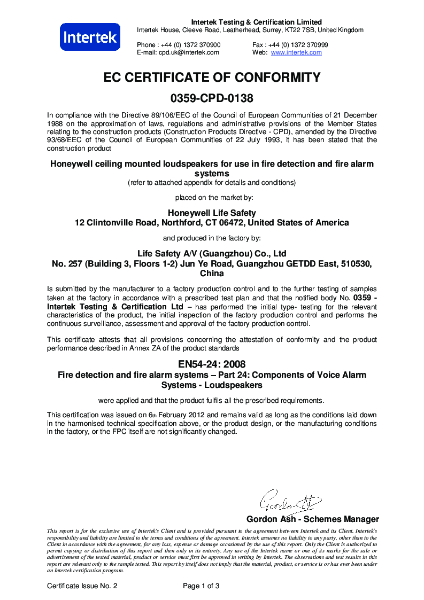

LSC-506 Certificate of Conformity
Literature
Literature type

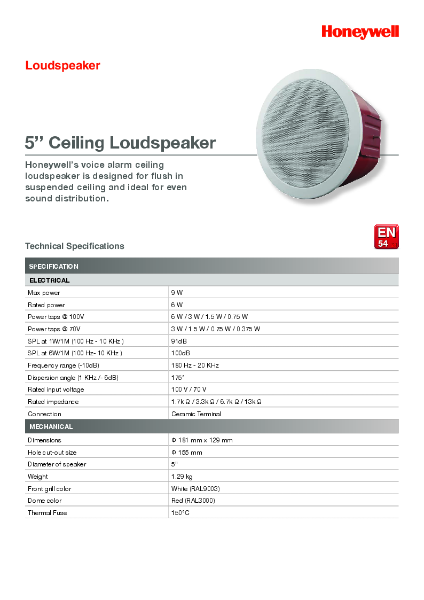

LSC-506, 6watt, 5" Ceiling Loudspeaker

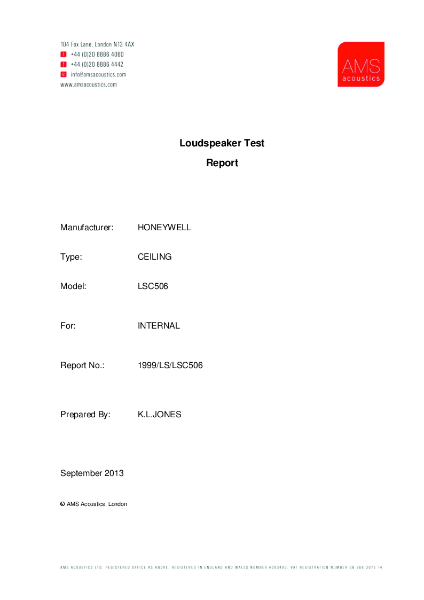

LSC-506 - AMS Acoustics Report
VARIODYN ONE - EN54 Certified Voice Alarm Systems Brochure
