Verified by manufacturer 2 days ago
LLumar® Reflective R20 SR HPR
Solar control window films to improve energy efficiency, reduce overheating, and reduce glare. Reflective films have a modern silver external appearance.
Suitable for domestic and commercial glazing applications where highest performance is needed, or heat and glare reduction are required.
A range of reflective modern appearance window films designed to improve the solar and thermal properties of existing glazing. Can be used to reduce overheating and alleviate glare issues. Can be used to improve energy efficiency by reducing the load on HVAC systems. Silver Reflective colour means a modern uniform appearance to glazing.
Features and benefits:
Color | Silver Guidance for specification option: Silver external. Internal appearance is a slight hue during the day |
Finish | Reflective |
Material | Polyester |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: The manufacturer’s limited warranty for this product is ten years. Certain restrictions apply. |
Uniclass | |
CAWS | L40/610 Window film L40/95 Window film |
Purpose | Privacy.Solar control. |
Material | Polyester. |

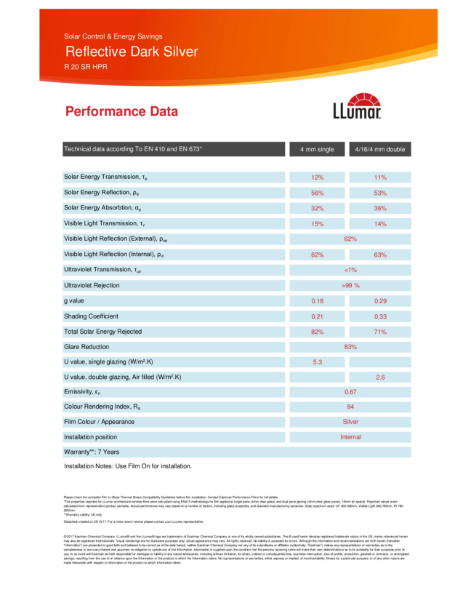

Colour | Silver.Guidance for specification option: LLumar® Reflective R20SRHPR Solar heat gain coefficient: 0.18. Solar reflectance: 50%. Solar transmittance: 10%. LLumar® Reflective R35SRCDF Solar heat gain coefficient: 0.31. Solar reflectance: 37%. Solar transmittance: 21%. LLumar® Reflective R50SRCDF Solar heat gain coefficient: 0.46. Solar reflectance: 25%. Solar transmittance: 35%. When applied to the interior surface of single-pane, 6 mm (1/4-inch) clear glass. |
Solar heat gain coefficient | G-value: 0.18. |
SolarReflectance | 50%. |
SolarTransmittance | 10%. |
Light transmission | 15%. |
Solar Control | Total solar energy rejected: 82%. |
Glare reduction | 83%. |
