LLumar® SCL SR PS4 Safety-and-Security Film
LLumar® SCL SR PS4 Safety-and-Security Film
Anti Shatter, Safety, Security, and Blast Window Film to improve the strength and shatter resistance of existing glazing.
Application
Suitable for commercial glazing applications to provide impact resistance.
Description
Retrofit window films designed to upgrade and improve the existing performance of glazing, making it safer or more secure. Can be used to help protect against vandalism, forced entry, accidental breakage, and bomb blasts. Clear versions go unnoticed when installed, Silver and Neutral versions also offer solar control benefits.
Features and benefits:
- Unnoticed when installed.
- Protect against forced entry.
- Protect against bomb blasts.
- Meet building codes such as EN 12600.
- Reduce heat and glare (solar control options).
- Energy Savings
- Low Embodied Carbon
Options:
Thicknesses
- PS4 - 100u - Anti Shatter (PS5 for silver only)
- PS7 - 175u - Anti Intrusion
- PS8 - 200u - Blast Mitigation
- PS13 - 325u - Anti Intrusion+
+
Additional / Optional Solar Control
- SCL = Clear
- N1020 = Neutral 20% VLT
- N1040 = Neutral 40% VLT
- R20 = Reflective (Silver) 20% VLT
*VLT = Visible Light Transmission
E.g. N1020 PS4 = Anti Shatter Film with 20% VLT Neutral Tint.
General information
Color | Clear Silver Brown Guidance for specification option: "Neutral Tint" - not really brown at all. Manufacturer guidanceTransparent, with hue, rather than solid colour. |
Finish | Manufacturer guidanceAlso available in non-reflective and transparent. |
Material | Polyester |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: The manufacturer’s limited warranty is ten years on the safety and security products. Certain restrictions apply. |
Uniclass | |
CAWS | L40/96 Manifestation L40/630 Manifestation L40/610 Window film L40/95 Window film |
Specification data - Plastics window films
Purpose | Safety.Security. |
Material | Polyester.Guidance for specification option: Polyester laminate. One side has a scratch-resistant coating and the other has an adhesive that bonds the film to the glass. |
Colour | Clear.Neutral.Silver. |
Dimensions | Guidance for specification option: Insert requirements. |
Fire performance | Class A to EN 13501-1 and ASTM E84.Guidance for specification option: (Flame Spread 0-25, Smoke Developed Index 0-450). |
Film thickness | 100 µ. Guidance for specification option: Anti-shatter. |
Literature
LLumar Architectural Safety Film Flyer

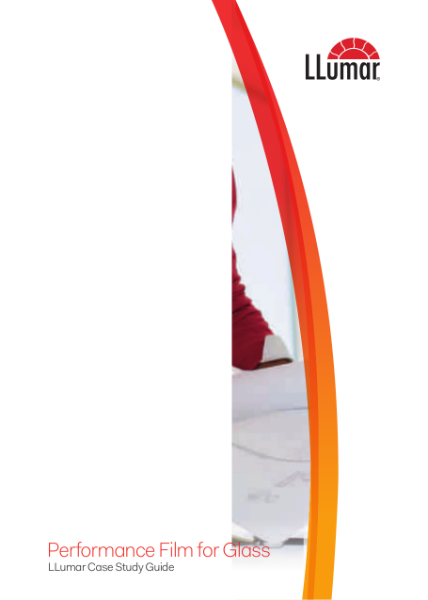

Case Study Booklet

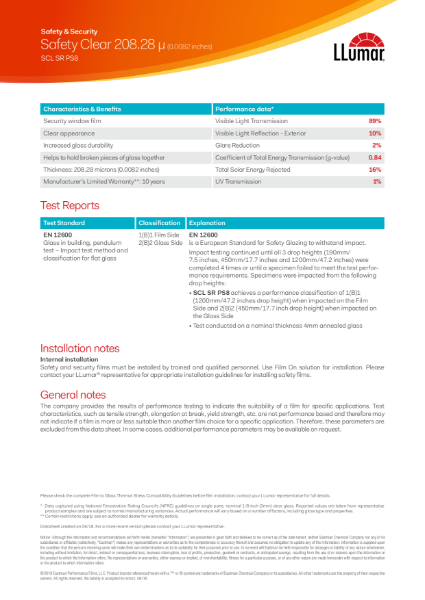

Data Sheet - Blast Mitigation Window film - LLumar SCL SR PS8

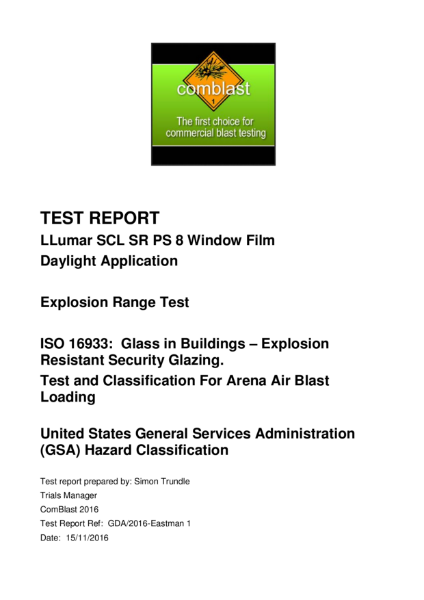

ISO 16933 & GSA Blast test report
