LLumar Low-E Solar Control Window Film
Verified by manufacturer 7 months ago
LLumar VE50 SRCDF
LLumar VE50 SRCDF
Low emissivity solar control window films to improve energy efficiency, reduce heat gain, and heat loss, offering year-round performance.
Application
Suitable for domestic and commercial external glazing applications to reduce winter heat loss AND summer heat gain.
Description
A range of window films designed to improve the solar and thermal properties of existing glazing. Can be used to reduce overheating, and reduce heat loss. Can be used to improve energy efficiency by reducing the load on HVAC systems.
Separate to standard solar control window films, Low E window films contain an additional coating to reflect internal, radiant heat.
Features and benefits:
- Several shade.
- Reduce hear gain.
- Reduce heat loss.
- Neutral appearance.
- Energy efficiency
- Low embodied carbon
General information
Color | Other Guidance for specification option: Virtually clear, slight bronze hue, unnoticeable once installed Manufacturer guidanceVirtually clear, slight bronze hue, unnoticeable once installed |
Material | Polyester |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: The manufacturer’s limited warranty for this series is 5–7 years. Certain restrictions apply. |
Uniclass | |
CAWS | L40/610 Window film L40/95 Window film |
Specification data - Plastics window films
Purpose | Solar control. |
Material | Polyester.Guidance for specification option: Polyester laminate. One side has a scratch-resistant coating and the other has an adhesive that bonds the film to the glass. |
Colour | Neutral. |
Solar heat gain coefficient | G-value: 0.44. |
SolarReflectance | 27%. |
SolarTransmittance | 34%. |
Light transmission | 51%. Guidance for specification option: U: 2.38. |
Solar Control | Total solar energy rejected: 56%. |
Glare reduction | 43%. |
Literature

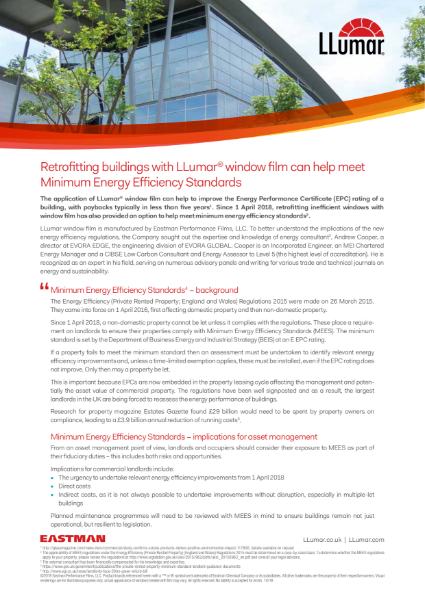

LLumar window films and MEES
LLumar window films and ESOS

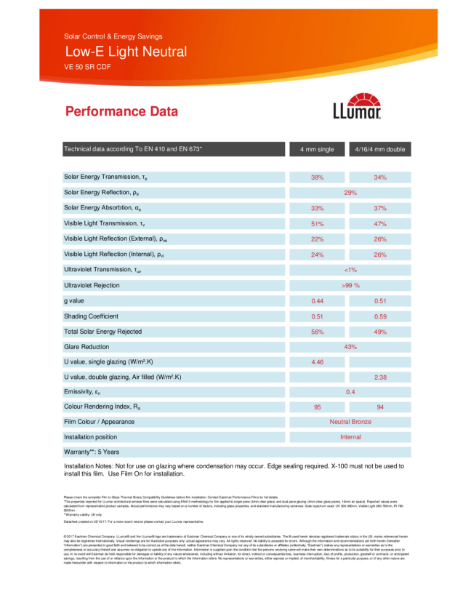

Data Sheet - Medium Low E Window Film - LLumar VE50 SR CDF

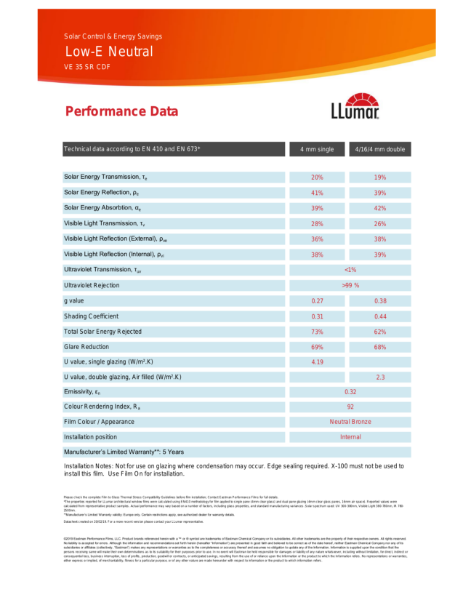

Data Sheet - Medium Low E - LLumar VE35 SR CDF
Case Study Booklet
