Litho Gradient - Carpet tile

Verified by manufacturer 9 days ago

Modulyss Third party certifications:
  • Cradle to Cradle Certified

    Cradle to Cradle Certified

    Certificate type

  • EPD

    EPD

    Certificate type

Make one-of-a-kind organic patterns with the four designs of the Artcore collection.

Jump to:
0800 09 62 702 Website

Application

Suitable for heavy commercial use.

Description

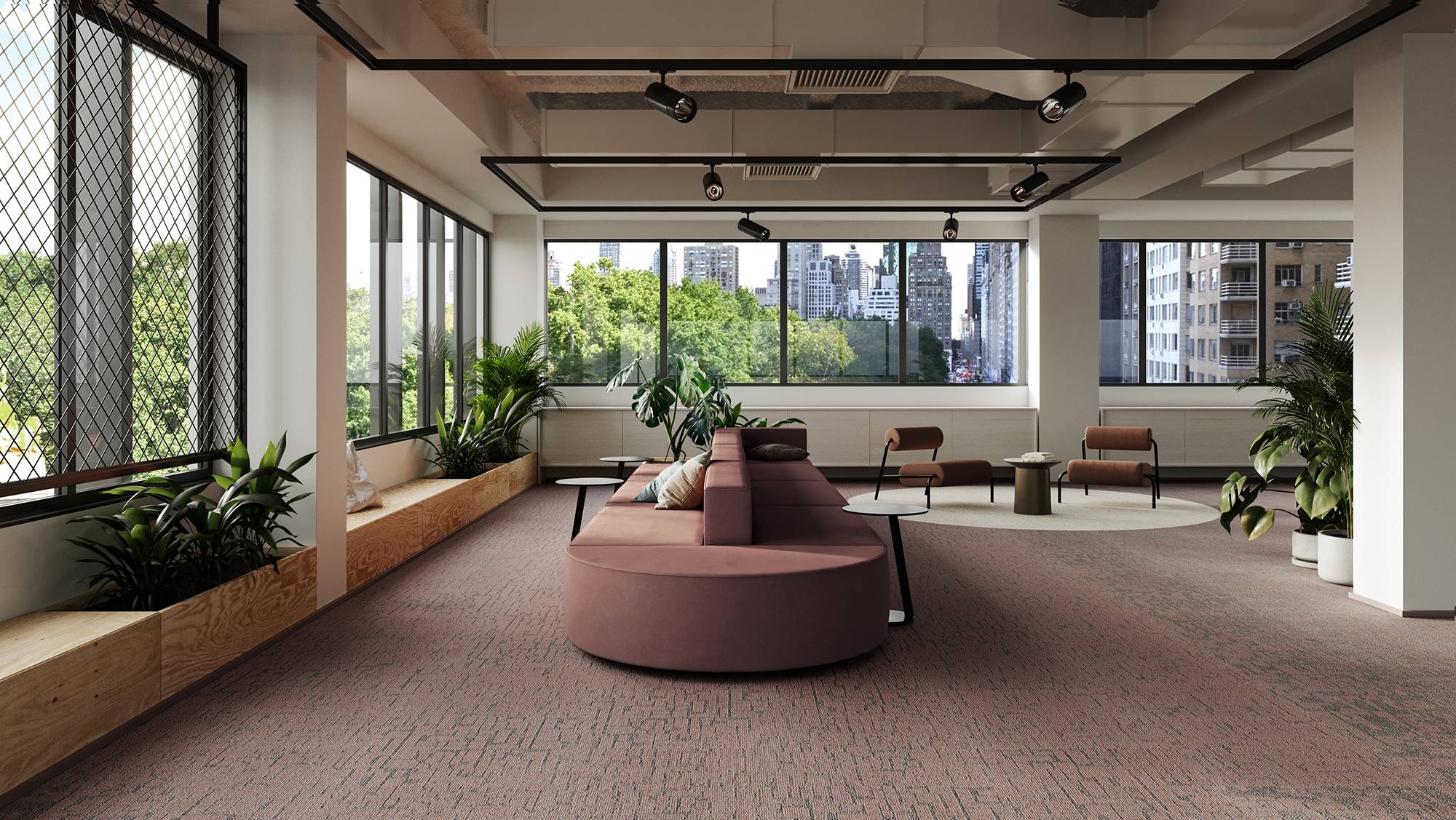

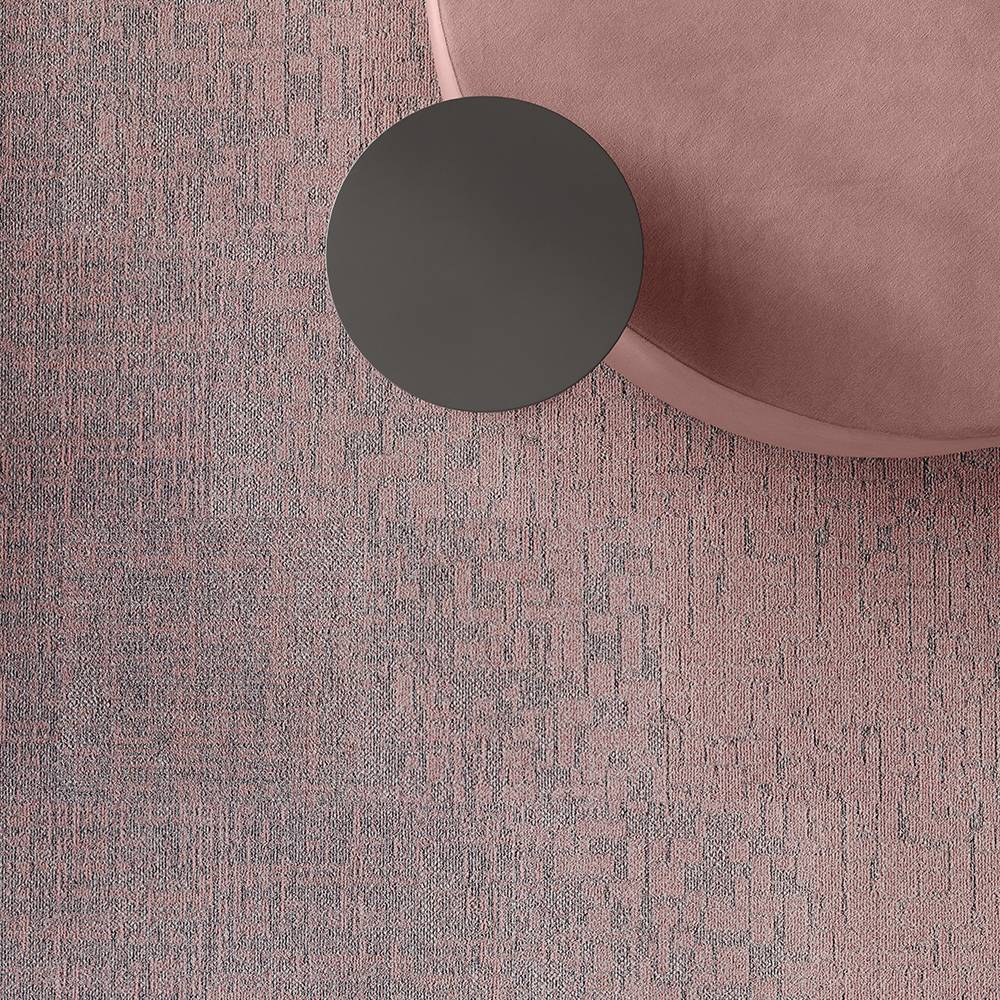

Like a cityscape viewed from above, Litho gives an urban and structured look to your interior. Experiment with adding more tranquillity to your design by making a transition to Core, the basic design of the Artcore collection, with the Litho Gradient tile. The contrasting patterns will help differentiate between various zones and can assist with wayfinding.


  • Made with 100% regenerated ECONYL® yarn.
  • Standard recyclable ecoBack backing.
  • Cradle to Cradle Certified® Gold

General information

Color

Beige

Black

Blue

Brown

Cream

Show more

Manufacturer guidance

16 colours available.

Finish

Tufted

Material

Nylon

Shape

Square

Length

500 mm

Width

500 mm

Height

7.2 mm

Warranty description

15 year

Uniclass

Pr_35_57_11_62 Pile carpet tilesPrimary

CAWS

M50/15 Carpet tiling

M50/130 Carpet tiling

Specification data - Pile carpet tiles

Style

Tufted loop pile.

Material

100% Regenerated solution dyed Econyl yarn + fully recyclable polyolefin based backing (ecoBack).

Classification

-

Standard

To BS EN 1307.

Third-party certification

Cradle to Cradle Certified™: Gold.

Level of use class

To BS EN 1307, class 33.

Luxury rating class

LC2.

Recycled content

63%.

Size

500 x 500 mm.

Guidance for specification option:

Standard.

Colour and pattern

Litho Gradient 010.

Litho Gradient 012.

Litho Gradient 208.

Litho Gradient 389.

Litho Gradient 398.

Litho Gradient 501.

Litho Gradient 518.

Litho Gradient 626.

Litho Gradient 659.

Litho Gradient 672.

Litho Gradient 853.

Litho Gradient 901.

Litho Gradient 904.

Litho Gradient 911.

Litho Gradient 932.

Litho Gradient 983.

Secondary backing

ecoBack: fully recyclable polyolefin based carpet tile backing with minimum 70% post-industrial recycled content.

Total weight

Ca. 3800 g/m².

Pile weight

Ca. 660 g/m².

Total height

Ca. 7.2 mm.

Height

Ca. 3.5 mm.

Pile density

Ca. 0.129 g/cm³.

Tuft density

Ca. 220,000 /m².

Castor chair use (to BS EN 985)

A : continuous use.

Fire resistance

EN 13501-1: Bfl -s1.

Light fastness (to BS EN ISO 105 B02)

≥7.

Colour fast - rubbing

≥4.

Thermal resistance

0.077 m²K/W.

Antistatic properties

≤2 kV.

Dimensional stability

0.2% (maximum).

Sound absorption

αw: 0.20.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Belgium

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

6.47 kg CO₂ eq/m²

Recyclability

ecoBack: fully recyclable backing

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

63 %

Guidance for specification option:

100% ECONYL® yarn - 100% Regenerated Solution Dyed Nylon

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

Cradle to Cradle Certified

Cradle to Cradle Certified

Cradle to Cradle Certified Gold

EPD

EPD

EPD Etch - Etch Gradient - Mezzo - Mezzo Gradient - Litho - Litho Gradient

Literature

Artcore brochure

Artcore brochure
