Etch - Carpet tile

Verified by manufacturer 4 months ago

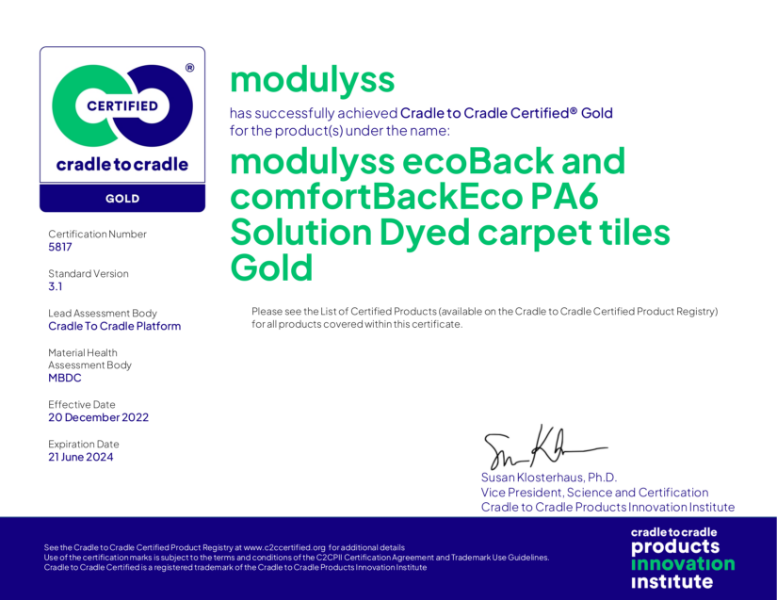

Modulyss Third party certifications:
  • Cradle to Cradle Certified

    Cradle to Cradle Certified

    Certificate type

  • EPD

    EPD

    Certificate type

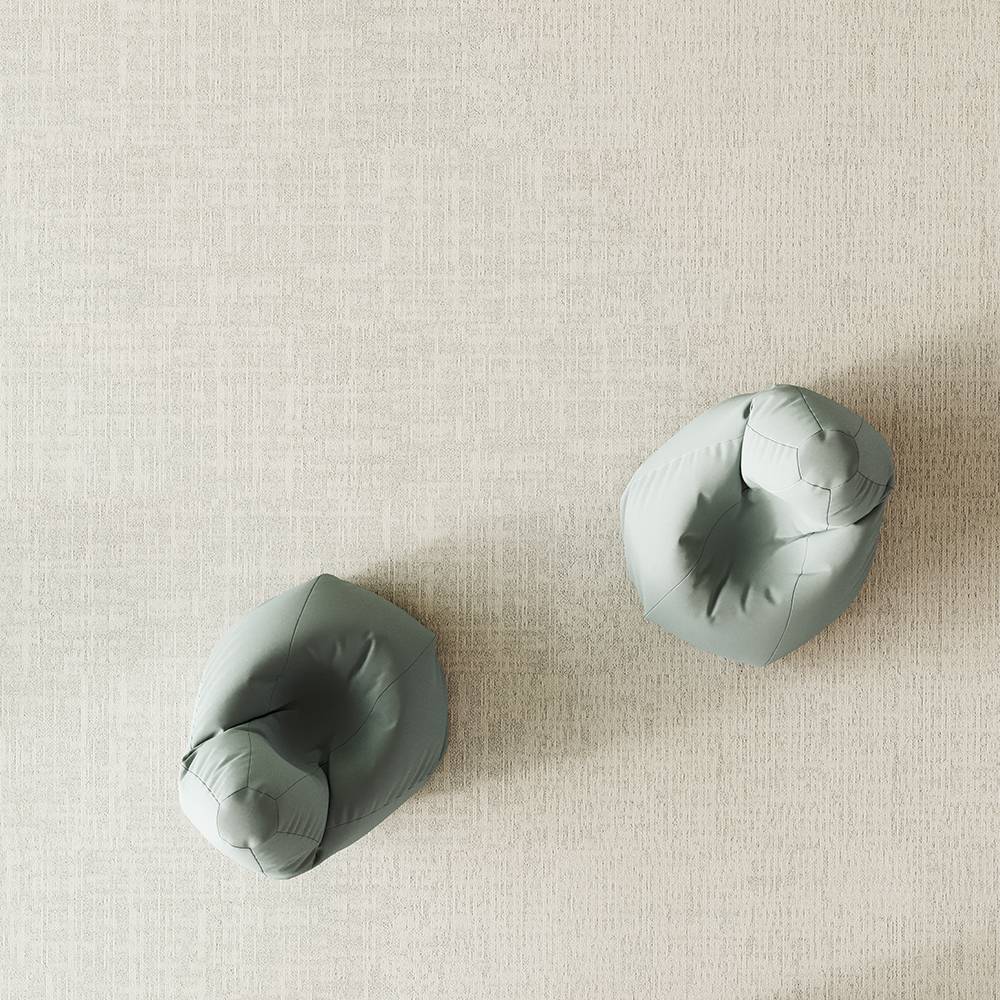

Etch recalls the natural woven structure of linen and adds a highly patterned style to the Artcore collection for you to play with.

Jump to:
0800 09 62 702 Website

Application

Suitable for heavy commercial use.

Description

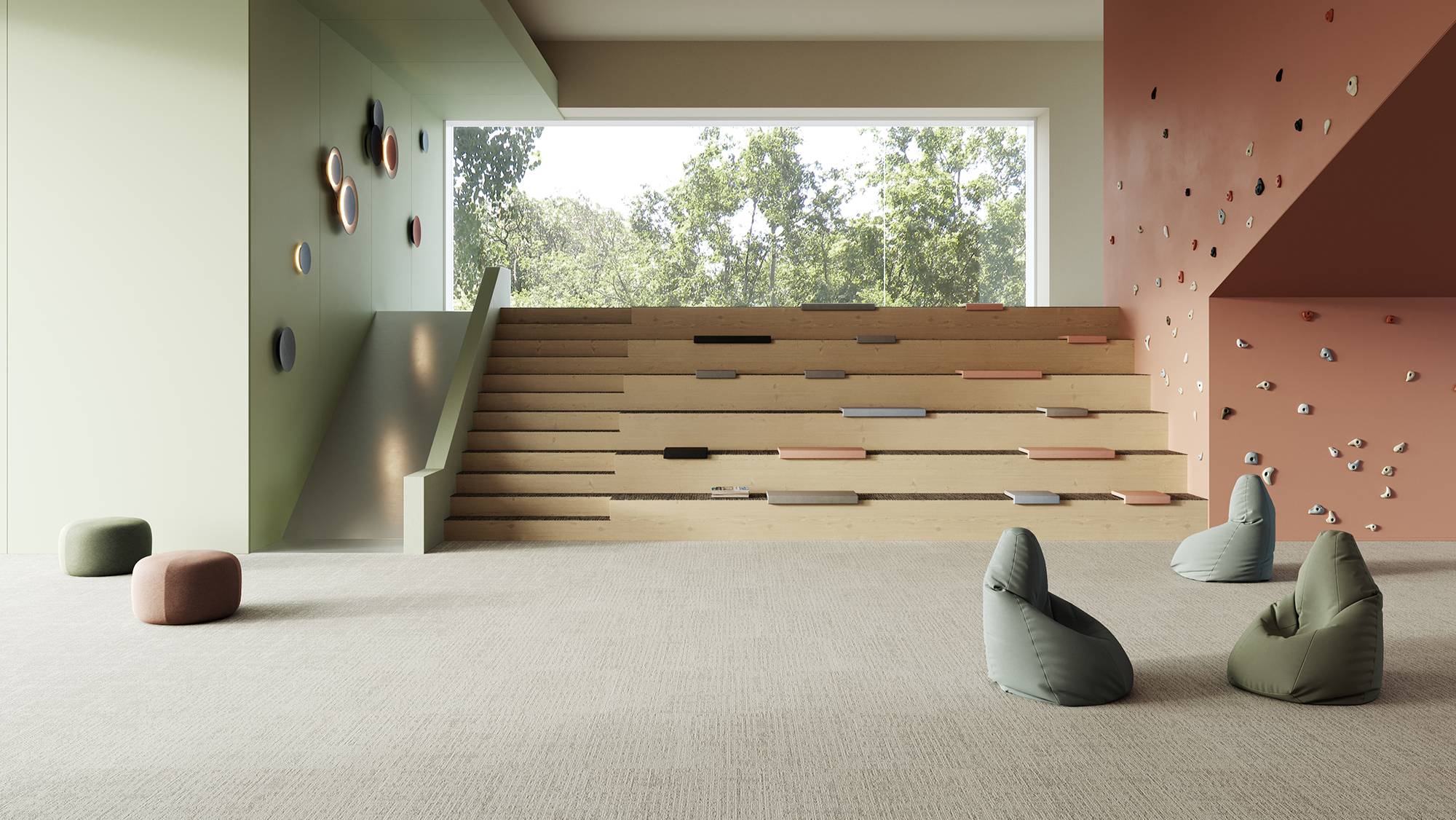

Etch recalls the natural woven structure of linen and adds a highly patterned style to the Artcore collection for you to play with. Unleash your inner artist and make a transition to Core with the Etch Gradient tile. This allows you to create a fluid pattern that moves smoothly from one side of a room to another and defines zones along the way.


  • Made with 100% regenerated ECONYL® yarn.
  • Standard recyclable ecoBack backing.
  • Cradle to Cradle Certified® Gold

General information

Color

Beige

Black

Blue

Brown

Cream

Show more

Manufacturer guidance

16 colours available.

Finish

Tufted

Material

Nylon

Shape

Square

Length

500 mm

Width

500 mm

Height

7.2 mm

Warranty description

15 year

Uniclass

Pr_35_57_11_62 Pile carpet tilesPrimary

CAWS

M50/15 Carpet tiling

M50/130 Carpet tiling

Specification data - Pile carpet tiles

Style

Tufted loop pile.

Material

100% Regenerated solution dyed Econyl yarn + fully recyclable polyolefin based backing (ecoBack).

Classification

-

Standard

To BS EN 1307.

Third-party certification

Cradle to Cradle Certified™: Gold.

Level of use class

To BS EN 1307, class 33.

Luxury rating class

LC2.

Recycled content

64%.

Size

500 x 500 mm.

Guidance for specification option:

Standard.

Colour and pattern

Etch 010.

Etch 012

Etch 208.

Etch 389.

Etch 398.

Etch 501.

Etch 518.

Etch 626.

Etch 659.

Etch 672.

Etch 853.

Etch 901.

Etch 904.

Etch 911.

Etch 932.

Etch 983.

Secondary backing

ecoBack: fully recyclable polyolefin based carpet tile backing with minimum 70% post-industrial recycled content.

Total weight

Ca. 3800 g/m².

Pile weight

Ca. 660 g/m².

Total height

Ca. 7.2 mm.

Height

Ca. 3.5 mm.

Pile density

Ca. 0.129 g/cm³.

Tuft density

Ca. 220,000 /m².

Castor chair use (to BS EN 985)

A : continuous use.

Fire resistance

EN 13501-1: Bfl -s1.

Light fastness (to BS EN ISO 105 B02)

≥7.

Colour fast - rubbing

≥4.

Thermal resistance

0.077 m²K/W.

Antistatic properties

≤2 kV.

Dimensional stability

0.2% (maximum).

Sound absorption

αw: 0.20.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Belgium

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

6.47 kg CO₂ eq/m²

Recyclability

ecoBack: fully recyclable backing

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

64 %

Guidance for specification option:

100% ECONYL® yarn - 100% Regenerated Solution Dyed Nylon

EPD

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

Cradle to Cradle Certified

Cradle to Cradle Certified

Cradle to Cradle Certified Gold

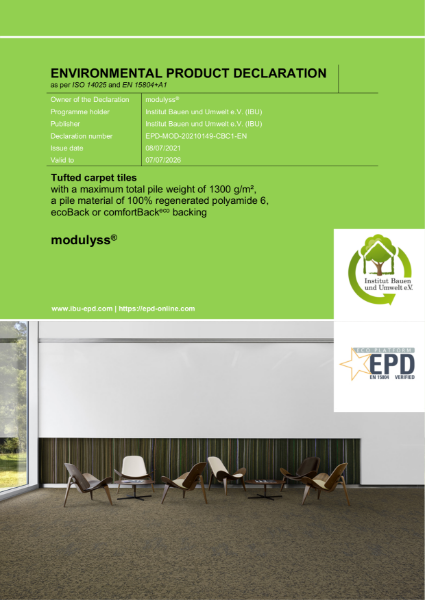

EPD

EPD

EPD Etch - Etch Gradient - Mezzo - Mezzo Gradient - Litho - Litho Gradient

Literature

Artcore brochure

Artcore brochure
