Litchard Seat

Verified by manufacturer 26 days ago

Broxap Street Furniture Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

  • CQMS

    CQMS

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

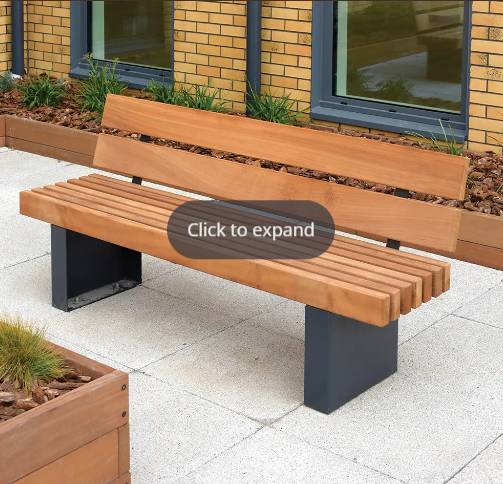

Heavy duty steel framed seat with seven slats in timber and a double slatted backrest as standard.

Jump to:
BOS
+44 (0)1782 571700 Website

Application

Suitable for any external seating area. Broxap provide attractive external benches and seats which are low maintenance, durable and ergonomically designed. Built from strong, high quality materials, benches and seats are ideal for public places in towns, cities and parks.

Supplied either root fixed or base plated, Broxap provide their benches and seats in single cast ironstainless steelconcrete and timber. For waterside applications, the stainless steel benches are also available in Grade 316. These are also great for positioning next to ponds and lakes take a look at our park benches.

Our large range of external seating is created to enhance the overall appearance of an outdoor space. Customisation options are offered to really complement their surroundings. For contemporary designs, we suggest our Nusser and ODM ranges. More traditional benches include the cast iron benches, which are constructed with heavy-duty cast iron frames and timber slats, and memorial benches for a loving and lasting tribute.

We recommend our range of cast iron or steel and timber benches for park uses, as they fit well with the natural surroundings. Our range also includes duracast polyurethane benches which require very low maintenance. These external benches are ideal for coastlines and waterside locations.

Create stylish, flexible and functional outdoor spaces with the new Northstowe Meet and Greet range from Broxap Street Furniture. From meetings on the move to creative thinking space; casual dining to community socialising areas this modular range of outdoor seating, tables and planters puts people at the heart of any landscape scheme.

Description

Heavy duty steel framed seat with seven slats in timber and a double slatted backrest as standard. Available with treated softwood or Iroko hardwood slats.


Features and benefits:

  • The steel frame is available in a range of colours.
  • Memorial plaques are available.

General information

Color

Black

Red

Blue

White

Grey

Show more

Manufacturer guidance

Coating to a non standard BS/RAL colour is also available.

Finish

Galvanized

Powder-coated

Material

Steel

Wood

Guidance for specification option:

Softwood or iroko hardwood slats.

Timber

Shape

Rectangle

Length

1800 mm

Width

510 mm

Height

820 mm

Warranty description

One year

Uniclass

Pr_40_30_29_85 Street and site seatsPrimary

CAWS

Q50/34 Seats

Q50/225 Seats

Specification data - Street and site seats

Length

1.8 m.

Base

Base plated.

Root fixed.

Material

Hardwood.

Guidance for specification option:

Hardwood Iroko slats.

Softwood.

Guidance for specification option:

Treated softwood slats.

Manufacturer guidance

(Steel frame)

Finish as delivered

Galvanized only.

Galvanized and polyester powder coated.

Manufacturer guidance

(Frame finish):

Colours

Not required.

Anthracite Grey (RAL 7016).

Black (RAL 9005).

Dark Blue (RAL 5013).

Dark Grey (BS 4800 18 B 25).

Duchess Blue (BS 4800 20 C 40).

Goose Grey (BS 4800 00 A 05).

Holly Green (BS 4800 14 C 39).

Mid Blue (RAL 5015).

Moss Green (RAL 6005).

Traffic Red (RAL 3020).

Traffic Yellow (RAL 1023).

White Aluminium (RAL 9006).

White (RAL 9016).

Non standard BS/RAL colour.

Guidance for specification option:

Insert requirements.

Accessories

Not required.

Memorial plaque.

Guidance for specification option:

Insert requirements.

Two memorial plaques

Guidance for specification option:

Insert requirements.

Three memorial plaques.

Guidance for specification option:

Insert requirements.

Armrest to each end.

Weight

80 kg.

Sustainability data

Country of product manufacture

United Kingdom

Material

Steel

Wood

Guidance for specification option:

Softwood or iroko hardwood slats.

Timber

Manufacturing plant location

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

Health & Safety Accreditation

Health & Safety Accreditation

Alcumus Safe Contractor

BBA Agrément Certificate

BBA Agrément Certificate

CE Marking Certification

CHAS

CHAS

CHAS Elite

Constructionline

Constructionline

Constructionline Gold Member

Health & Safety Accreditation

Health & Safety Accreditation

Insurance

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO45001 Health Safety

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO9001 Quality

Rospa Safety Charity

Rospa Safety Charity

ROSPA

CQMS

CQMS

CQMS Safety Scheme

smas WORKSAFE

smas WORKSAFE

SMAS Worksafe

BBA Agrément Certificate

BBA Agrément Certificate

UKCA Marking Certification

Literature

Litchard Seat Specification Sheet

Litchard Seat Specification Sheet

Case studies

Stirling Council, Scotland

Stirling Council, Scotland

Royal Stoke University Hospital, North Staffordshire

Royal Stoke University Hospital, North Staffordshire

York House, Windsor

York House, Windsor

The Kingsbrook School, Aylesbury

The Kingsbrook School, Aylesbury

Waltham Forest Town Hall, London

Waltham Forest Town Hall, London
