Limepoint Regency - Cement-Free Hydrated Lime Mortar
Verified by manufacturer 1 month ago
EPD
Certificate type

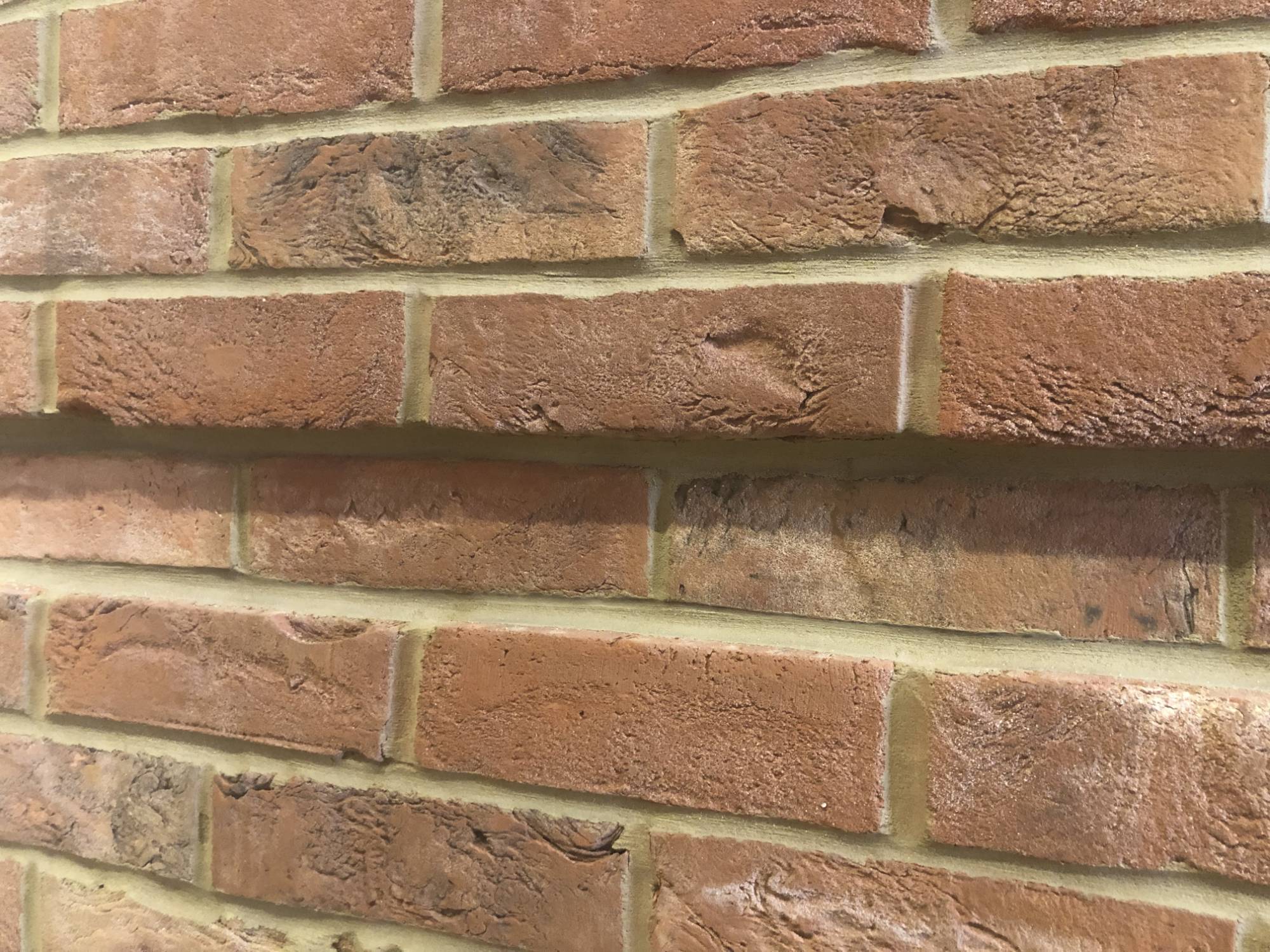

A cement-free hydrated lime gun-injected pointing mortar for pointing all brick types and stonework and is particularly suitable for historic projects.
Application
Suitable for pointing all brick types and stonework and is particularly suitable for historic projects.
Description
A cement-free hydrated lime gun-injected pointing mortar for pointing all brick types and stonework and is particularly suitable for historic projects.
Consistent in both colour and finish, Limepoint Regency is pumped deep into the joint, providing a complete fill and a degree of flexibility. The mortar is porous allowing the passage of water through the mortar joint.
Limepoint Regency is available in 14 colours designed to match the colour, and texture of historic mortars while creating a workable and durable substance.
Features and benefits:
- Fast application.
- Joint widths: 5–25 mm.
- Set time: 3 hours at 20°C.
- Contains 20% recycled material.
- Stain-free, colour resistant re-pointing.
- Conforms to BS EN ISO 9001, ISO 14001 and ISO 45001.
- Store in a cool, dry and frost-free area at temperatures between 5°C and 30°C.
- Mortar is non-flammable.

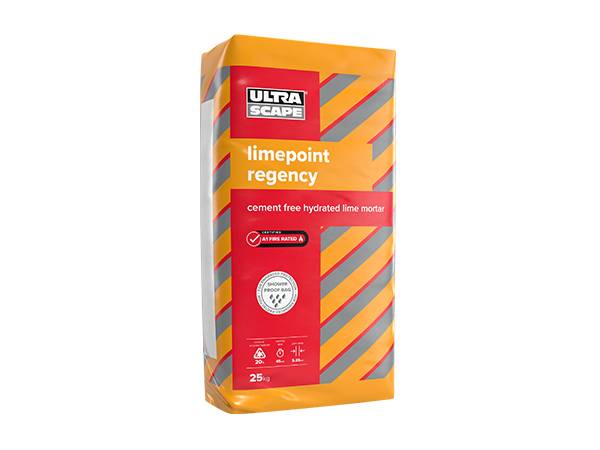

- 25 kg bags delivered on shrink-wrapped pallets.
General information
Color | Beige Black Brown Cream Grey |
Finish | Smooth |
Material | Lime |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | M20/330 Proprietary lime:sand F10/665 Pointing Z21/310 Lime:sand mortar mixes M20/57 Lime:sand C41/820 Pointing Z21/310 Lime:sand mortar mixes M20/310 Lime:sand C41/820 Pointing |
Specification data - Injection mortars
Mix type | Dry packed blend of hydrated lime, selected silica sands and natural aggregates.Guidance for specification option: Limepoint Regency mortar is a dry packed blend of lime complying with BS EN 459-1, GGBS complying with BS EN 15167 and BS EN998-2, selected silica sands and natural aggregates complying with BS EN 13139 together with additives to provide water resistance, thixotropic properties, workability and colour. Regency Range Mortar is a traditional hydrated lime, sand, GGBS mortar. |
Colour | Portland.Charcoal.Stone Grey.Bathstone.Brick Red.Dark Red.Light Brown.Dark Brown.Sandstone.Natural.Mid Brown.Light Grey.Mid Grey.Dark Grey. |
Standard | To BS EN 459-1, BS EN 15167, BS EN 998-2 and BS EN 13139. |
Density | 2.05 kg/m³. |
Compressive strength - 28 days | 9 N/mm². |
Joint width | 5–25 mm. |
Water required for 25 kg mortar | 4–4.5 L. |
Workability | 45 minutes at 20°C. |
ThermalConductivity | P=50%, 0.86 W/m·K. |
Water absorption | 0.28 kg/(m². min^0.5). |
Water permeability | 15/35 μ. |
Yield per kg | 13.5 L. Guidance for specification option: Approximately per 25 kg bag. |
Shelf life | 12 months. Guidance for specification option: From the date of manufacture printed on the bag unopened in the above conditions. High temperatures and high humidity will reduce shelf life. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Lime |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % |
Third party certifications
Third party certifications
EPD
Limepoint Regency
Literature
Limepoint Regency Technical Datasheet
Limepoint Plus Safety Datasheet
