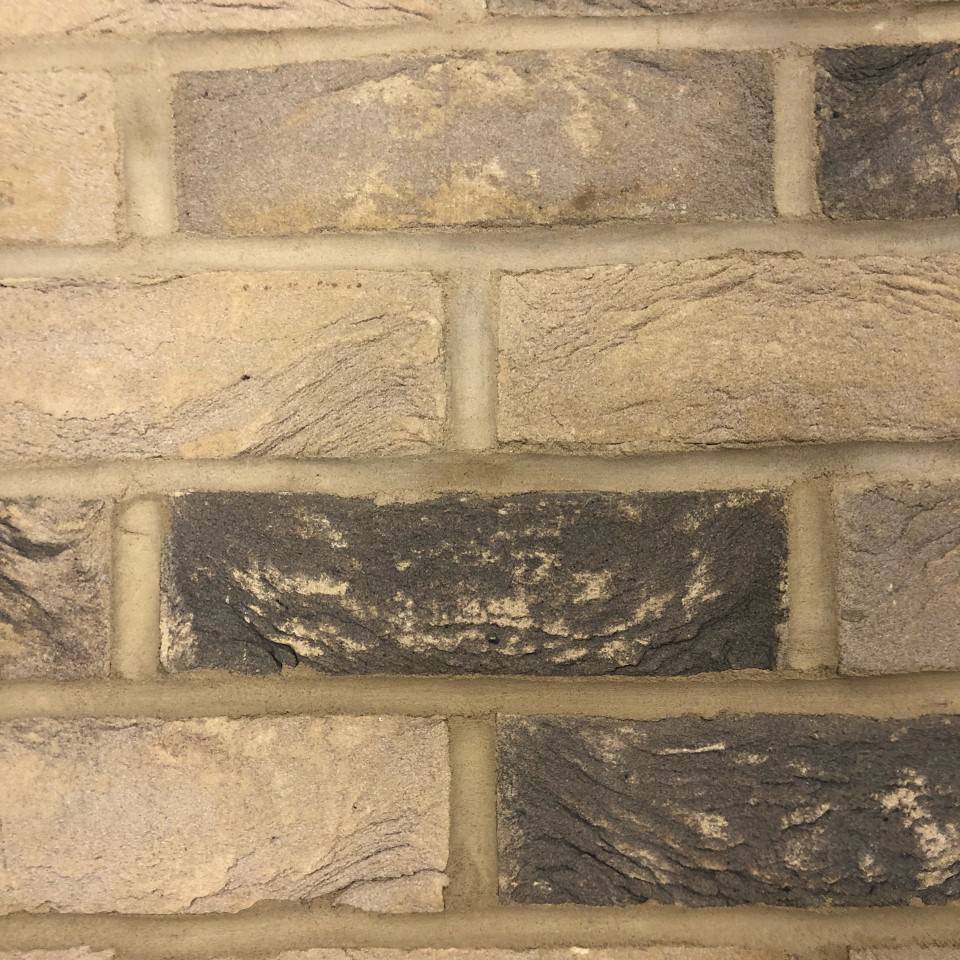

Limepoint Plus - Cement-Free Hydrated Lime Mortar
Verified by manufacturer 1 month ago
A cement-free hydrated lime gun-injected pointing mortar suitable for use with dense masonry and brick slip cladding tile systems where porosity is low.
Application
Suitable for use with dense masonry and brick slip cladding tile systems where porosity is low.
Description
A cement-free hydrated lime gun-injected pointing mortar suitable for use with dense masonry and brick slip cladding tile systems where porosity is low.
Consistent in both colour and finish, Limepoint Plus mortar is pumped deep into the joint, providing a complete fill and allowing for a degree of flexibility when set.
The mortar is porous and allows for the passage of vapour and water through the mortar joint.
Limepoint Plus is suitable for pointing all brick slip cladding systems and is available in 14 colours to complement or contrast the brick finish.
Please refer to the individual system manufacturer for their specific installation procedure.
Features and benefits:
- Fast application.
- Joint widths: 5–25 mm.
- Workability: 45 minutes.
- Set time: 1 hour at 20°C.
- Contains 20% recycled material.
- Suitable for flexible construction.
- Conforms to BS EN ISO 9001, ISO 14001 and ISO 45001.
- 25 kg bags delivered on shrink-wrapped pallets.
- Store in a cool, dry and frost-free area at temperatures between 5°C and 30°C.
- Mortar is non-flammable.
General information
Color | Beige Black Brown Cream Red |
Finish | Smooth |
Material | Lime |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | F10/665 Pointing Z21/310 Lime:sand mortar mixes M20/57 Lime:sand C41/820 Pointing Z21/310 Lime:sand mortar mixes M20/330 Proprietary lime:sand M20/310 Lime:sand C41/820 Pointing |
Specification data - Injection mortars
Mix type | Dry packed blend of hydrated lime, selected silica sands and natural aggregates.Guidance for specification option: Limepoint Plus is a dry packed blend of lime complying with BS EN 459-1, GGBS complying with BS EN 15167 and BS EN 998-2, selected silica sands and natural aggregates complying with BS EN 13139 together with additives to provide water resistance, thixotropic properties, workability and colour. Limepoint Plus is a traditional hydrated lime, sand, GGBS mortar. |
Colour | Portland.Charcoal.Stone Grey.Bathstone.Brick Red.Dark Red.Light Brown.Dark Brown.Sandstone.Natural.Mid Brown.Light Grey.Mid Grey.Dark Grey. |
Standard | To BS EN 459-1, BS EN 15167, BS EN 998-2 and BS EN 13139. |
Density | 2.05 kg/m³. |
Compressive strength - 28 days | 9 N/mm². |
Joint width | 5–25 mm. |
Water required for 25 kg mortar | 3.75 L. |
Workability | 45 minutes at 20°C. |
ThermalConductivity | P=50%, 0.86 W/m·K. |
Water absorption | 0.28 kg/(m². min^0.5). |
Water permeability | 15/35 μ. |
Yield per kg | 13.5 L. Guidance for specification option: Approximately per 25 kg bag. |
Shelf life | 12 months. Guidance for specification option: From the date of manufacture printed on the bag unopened in the above conditions. High temperatures and high humidity will reduce shelf life. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % |
