Legacy Cast Aluminium Moulded No.46 Ogee Gutter
Verified by manufacturer 1 month ago
100 mm - Left hand system
100 mm - Left hand system
A range of ogee gutters, manufactured from cast aluminium.
Application
Suitable for new build and refurbishment applications.
Description
Legacy cast aluminium Moulded No. 46 Ogee gutters are available in various sizes and are supplied with a complete range of accessories, such as angles, outlets, stopends and brackets.
100 x 75 mm and 125 x 100 mm ranges are left hand systems; 150 x 100 mm range is a right hand system. True and faceted radius gutters are also available.
Cast aluminium gutters have become the widely accepted alternative to Cast Iron and are now a first choice owing to their lightweight, corrosion resistant, low maintenance and aesthetically pleasing characteristics.
Features and benefits:
- Made from aluminium alloy LM6 to BS 5750:2008.
- Radius gutters - True or faceted radius available.
- Other profiles available.
- Supplied mill finished (uncoated) or polyester powder-coated in RAL or BS standard colours.
General information
Color | Black Other |
Finish | Mill Powder-coated |
Material | Aluminium |
Shape | Other |
Length | 1830 mm |
Width | 100 mm 125 mm 150 mm |
Height | 75 mm 100 mm |
Uniclass | |
CAWS | R10/11 Aluminium gutters R10/311 Aluminium gutters |
Specification data - Aluminium eaves gutters
Form | Cast. |
Profile | Ogee. |
Size (nominal width) | 100 mm. |
Finish | Mill.Powder coating. |
Colour | Manufacturer guidancePolyester powder-coating is available in RAL or BS standard colours. Consult manufacturer and insert requirements. |
Integral accessories | 43CMOAX90 - 90° External Angle.43CMOAI90 - 90° Internal Angle.43CMOAX135 - 135° External Angle.43CMOAI135 - 135° Internal Angle.43CMOO2R - Running Outlet (Ø63 mm).43CMOO3R - Running Outlet (Ø76 mm).43CMOO3S - Running Outlet (76 x 76 mm).43CMOO43 - Running Outlet (101 x 76 mm).43CMOSEI - Internal Stopend.43CMOSEX - External Stopend.4CVOUC - Union Connector.43CMOBDF - Direct Fix Wedge.43CMOBF - Fascia Bracket.43CMOBRT - Top Fix Rafter Bracket.43CMOBRS - Side Fix Rafter Bracket.43CMOBRF - Rise and Fall Bracket. |
Length | 43CMOG1.8 - 1830 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 100% recyclable |
Expected Life | 30 year |
Literature

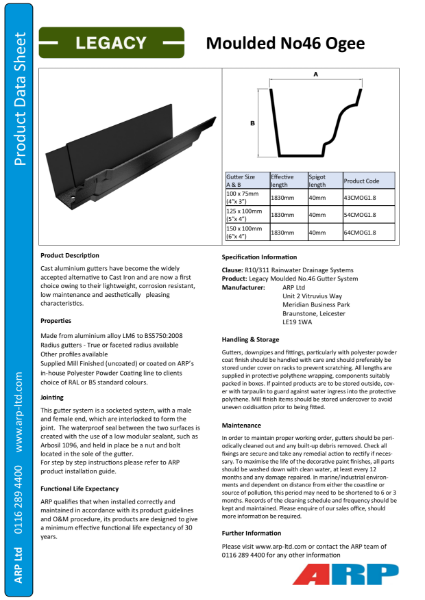

Legacy Moulded No46 Ogee Data Sheet

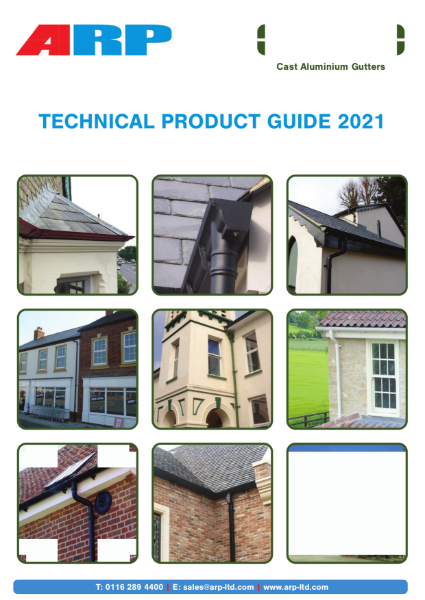

Technical Product Guide - Legacy
