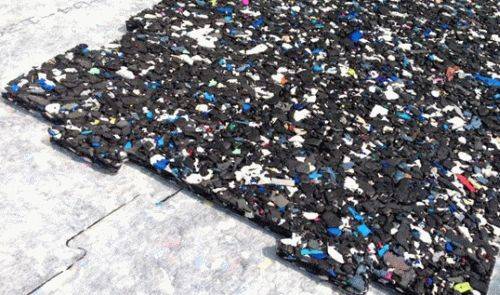

Lazy Pad 25mm Shockpad
Verified by manufacturer 14 days ago
LazyPad foam is a high quality underlay shockpad that is used beneath an artificial grass surface on a children's play area or it can be used as protective underlay for roof gardens or patios.
Application
Suitable for play area projects to provide the required critical fall heights required when installing around play equipment. Suitable for vertical drainage.
Description
LazyPad foam is a high quality underlay shockpad that is used beneath an artificial grass surface on a ground floor children's play area.
If a CFH is needed then a double layer of the product can be used. For example when used in conjunction with Wonder Yarn groundwork specification, two layers equal 2.5 m CFH.
Features and benefits:
- On a play area as a safety surface the standard 25 mm foam offers a critical fall height (CFH) of 1.5 m (tested to BS EN 1177) when used with an artificial grass surface such as the Wonder Yarn product.
- The foam offers excellent drainage properties as it will not absorb liquids and is long lasting. The elasticity and shock absorption make it safe for playgrounds offering optimum fall protection and fantastic performance.
- Permeability to BS EN ISO 11058: 0.017 m/s (± 0.005 m/s).
- Static puncture resistance (CBR) to BS EN 12236: 1848 N.
- Resistant to weathering, acids (H2S04) and alkalines (CA(OH)2).
General information
Color | Other Guidance for specification option: Range of colours available please contact Evergreens UK Ltd - LazyLawn®. |
Material | Polyethylene Guidance for specification option: Cross-linked polyethylene (PEX). Foam Guidance for specification option: 100% closed-celled foam. Polystyrene Guidance for specification option: Polyester geotextile. |
Shape | Rectangle |
Length | 2250 mm |
Width | 900 mm |
Height | 25 mm |
Uniclass | |
CAWS | Q26/350 Synthetic grass surfacing |
Specification data - Interlocking shock absorption panels
Material | Cross-linked polyethylene (PEX), 100% closed-celled foam with polyester geotextile. |
Dimensions | |
Plan size | 900 x 2250 mm.Guidance for specification option: Roll width: 0.90 m (± 3%). Roll length: 2.25 m (± 3%). |
Thickness | 25 mm. |
Permeability | To BS EN ISO 11058, 0.017 m/s (± 0.005 m/s). |
Puncture resistance | To BS EN 12236, 1848 N. Manufacturer guidanceStatic puncture resistance (CBR). |
Weathering resistance | Resistant to weathering, acids (H2S04) and alkalines (CA(OH)2). |
Water flow through geotextile | 50 mm head: 0.017 m/s; 2 kPa permeability: 0.07 L/m². |
Weight | 3600 g/m². |
Sustainability data
Contains Red List materials | No |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
Material | Polyethylene Guidance for specification option: Cross-linked polyethylene (PEX). Foam Guidance for specification option: 100% closed-celled foam. Polystyrene Guidance for specification option: Polyester geotextile. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 3 |
 IFC | IFC2X3 | 2 |
