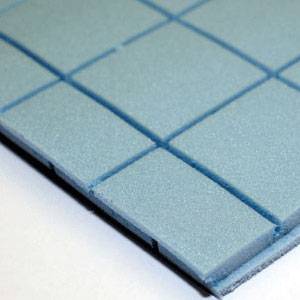

Lazy Foam Underlay
Verified by manufacturer 14 days ago
Lazyfoam is suited for shockpad use also suitable for vertical drainage on tarmac/concrete sub-bases.
Application
Suitable for shockpad use also suitable for vertical drainage ontarmac/concrete sub-bases.
Description
Foam underlay for use with LazyLawn products.
Features and benefits:
- Resistant against attack of fungi and mildew.
- Vertical water permeability (BS EN 12616): 36000 mm/ h.
- Horizontal water permeability (BS EN 12958): 2000 mm/ h.
- Shock absorption (BS EN 14808): 43%.
General information
Color | Blue |
Material | Foam |
Length | Bespoke |
Width | 1950 mm |
Height | 16 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | Q26/350 Synthetic grass surfacing |
Specification data - Interlocking shock absorption panels
Material | Foam. |
Dimensions | |
Thickness | 12 mm.Manufacturer guidanceTo ISO 1923. |
Shock absorption | To BS EN 14808, 43%. |
TensileStrength | To ISO 1926, 0.3 MPa. |
ThermalConductivity | To ISO 8301, 0.046 W/mK. |
Water permeability | To BS EN 12616, 36000 mm (vertical water permeability); to BS EN 12958, 2000 mm/ h (horizontal water permeability). |
Deformation capability | 8 mm. Manufacturer guidanceVertical deformation. |
Weight | 500 g/m². |
Sustainability data
Contains Red List materials | No |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
Material | Foam |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 3 |
 IFC | IFC2X3 | 2 |
