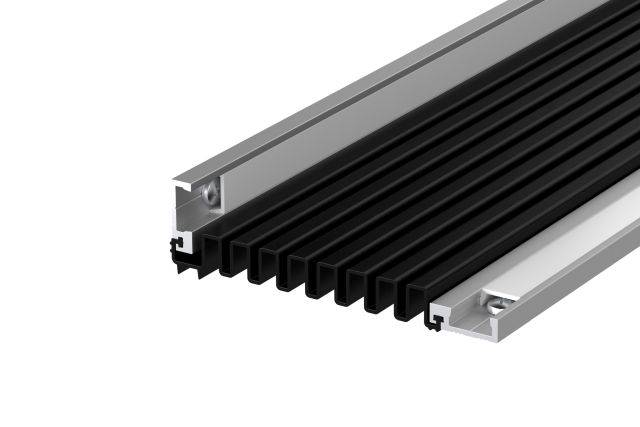

LAS9070 Finger Guard Seal
Verified by manufacturer 5 months ago
Aluminium finger guard seal.
Application
Suitable use for:
- Jambs of hinged doors. LAS9070 si can be used on doors with an opening of 180°.
Description
Aluminium finger guard seal, designed to reduce the risk of trapping fingers in hinged doors and causing injuries. The risk is especially high in locations where young children are present.
Features and benefits
- The finger guard seals provide the shield. Protect both sides of the door by using the LAS9050 on the hinge knuckle side and the LAS9070 on the hinge cavity side.
- Includes a unique, integral smoke and acoustic seal.
- Can be used in conjunction with the LAS7001 acoustic and smoke seal around the remainder of the door perimeter for a comprehensive sealing and finger protection system.
General information
Color | Bronze Silver |
Finish | Anodized |
Material | Aluminium Silicone |
Shape | Other |
Length | 2100 mm |
Width | 88 mm |
Height | 18 mm |
Uniclass | |
CAWS | L20/20 Wood flush doors L20/230 Wood flush doors L20/25 Wood panelled doors L20/250 Wood panelled doors L20/270 Wood doors L20/280 Doors L20/30 Wood doors L20/310 Wood door frames L20/330 Wood door frames L20/370 Door frames L20/410 Wood doorsets L20/420 Wood doorsets L20/430 Wood doorsets L20/480 Doorsets L20/50 Wood door frames L20/52 Wood door frames L20/55 Doorsets P21/860 Door seals |
Specification data - Anti-finger trap stiles
Material | Aluminium. |
Finish | Anodized. |
Colour | Bronze.Silver. |
Length | 2100 mm. Single doorset pack. Guidance for specification option: Contains 1 x 2.1 m LAS9050 si Finger Guard Seal and 1 x 2.1 m LAS9070 si Finger Guard Seal. Special order. Guidance for specification option: Insert requirements. |
Finish | Anodized |
Gasket | Black. Guidance for specification option: Standard. Brown. |
Dimensions | 11 x 88 x 2100 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
Literature
Lorient Architectural Seals
LAS9070 finger guard seal datasheet
