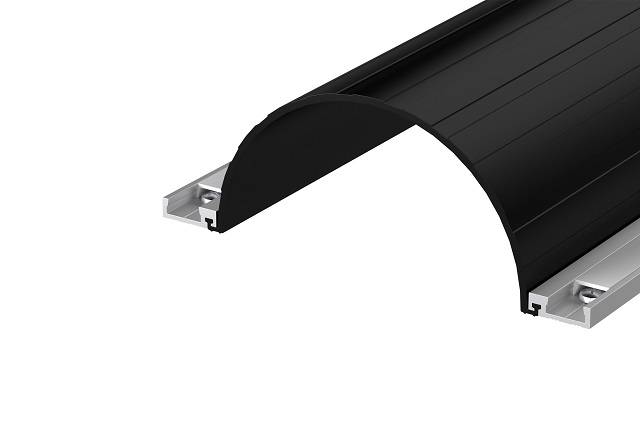

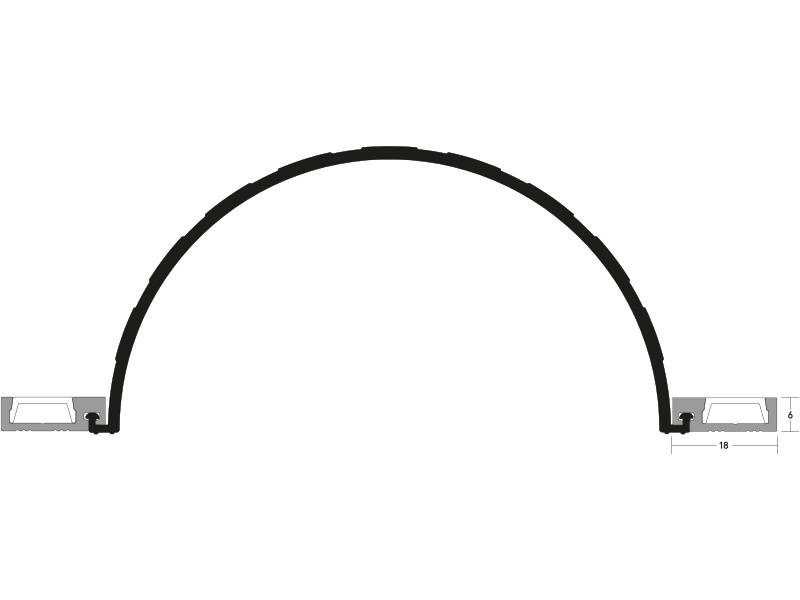

LAS9030 Finger Guard Seal

Verified by manufacturer 1 month ago

Lorient

Door safety finger guard seal.

Jump to:
+44 (0)1626 834252 Website

Application

Suitable use for on jambs of hinged doors with an opening up to 180°, or 170° when used with LAS9050 si.

Description

A durable safety finger guard seal, which provides a deterrent to fingers becoming jammed on the hinge cavity side of a door.


Features and benefits:

  • The product is fixed to the door and the jamb on the hinge cavity side.
  • To be used in conjunction with LAS9050 si finger guard seal for the hinge knuckle side.
  • Tested to BS 8613 Type A, Class 2.
  • It also protects against draught and light and can be used with LAS7001 si perimeter seal and LAS8001 si drop seal (fully mortised).
  • Fixing: Fixing holes are pre-drilled and slotted to allow the seals to be adjusted and positioned accurately. PVC cover strips are supplied to conceal fixings.
  • Durability: 300 000 cycles.


General information

Color

Silver

Finish

Anodized

Material

Aluminium

Guidance for specification option:

Fixing component with black ethylene propylene diene rubber (EPDM) rubber gasket.

EPDM

Shape

Other

Length

2100 mm

Uniclass

Pr_30_36_36_04 Anti-finger trap stilesPrimary

CAWS

L20/20 Wood flush doors

L20/230 Wood flush doors

L20/25 Wood panelled doors

L20/250 Wood panelled doors

L20/270 Wood doors

L20/280 Doors

L20/30 Wood doors

L20/310 Wood door frames

L20/330 Wood door frames

L20/370 Door frames

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/52 Wood door frames

L20/55 Doorsets

Specification data - Anti-finger trap stiles

Material

Aluminium.

Finish

Anodized.

Colour

Bronze.

Silver.

Length

2100 mm.

Guidance for specification option:

Standard.

Special order.

Guidance for specification option:

Insert requirement.

Colour/ Finish

Bronze anodized aluminium with black cover strip and black gasket.

Silver anodized aluminium with grey cover strip and black gasket.

Fixings

Self-drilling and self-tapping screws.

Guidance for specification option:

For metal substrates.

Self-tapping wood screws.

Guidance for specification option:

Standard.

Sustainability data

Country of product manufacture

United Kingdom
