Application

Suitable for use in staircases and internal and external applications, with resilient floorcoverings.

Description

Corduroy hazard warning surface for staircase approaches, providing ‘good practice’ solutions to the Department of Transport’s “Guidance on the use of Tactile Paving Surfaces” and the recommendations provided by the Joint Mobility Unit and the Centre for the Accessible Environment.


Features and benefits:

  • Manufactured from a mineral-filled rubber elastomer to give high durability, abrasion and skid resistance.
  • Tiles have a ribbed pattern to Equality Act (2010) specifications to warn of a hazard requiring caution such as steps or ramps.
  • Ten year project warranty available.


Installation:

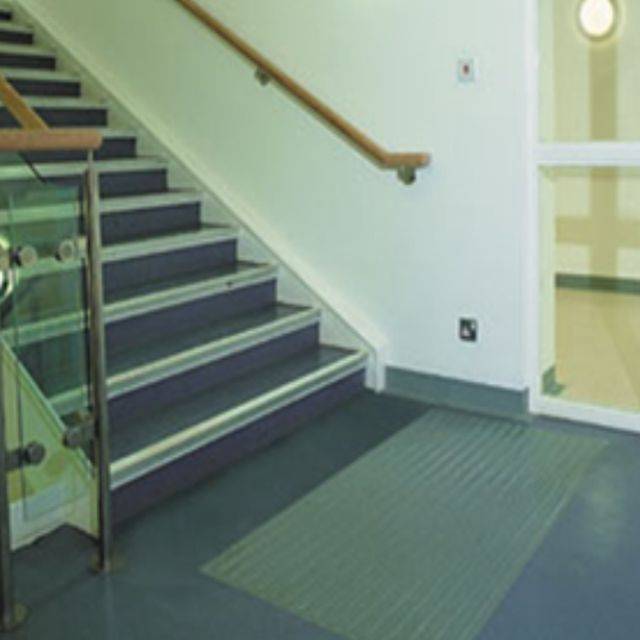

  • Should be installed as a hazard warning surface on the top and bottom approaches of a staircase to warn pedestrians that they are approaching a staircase.
  • The surface should be laid so that the bars run transversely across the direction of pedestrian travel and should be a contrasting colour to the surrounding area.
  • Fixing: Q-Fix adhesive (specified separately).

General information

Color

Black

Grey

Material

Rubber

Guidance for specification option:

Mineral-filled rubber elastomer (moulded).

Length

400 mm

Width

400 mm

Height

2 mm

Warranty description

Ten year

Guidance for specification option:

On project application.

Uniclass

Pr_35_57_71_68 Polyvinyl chloride (PVC) tilesPrimary

CAWS

M50/10 Resilient floor tiling

M50/110 Resilient floor tiling

Specification data - Polyvinyl chloride (PVC) tiles

Standard

To ISO 9001, ISO 14001.

Size

400 x 400 mm.

Guidance for specification option:

Width x Depth.

Colour and pattern

Black.

Buff.

Grey.

Regency.

Third-party certification

Groundworks Green Business Certificate.

Gauge

2 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%
