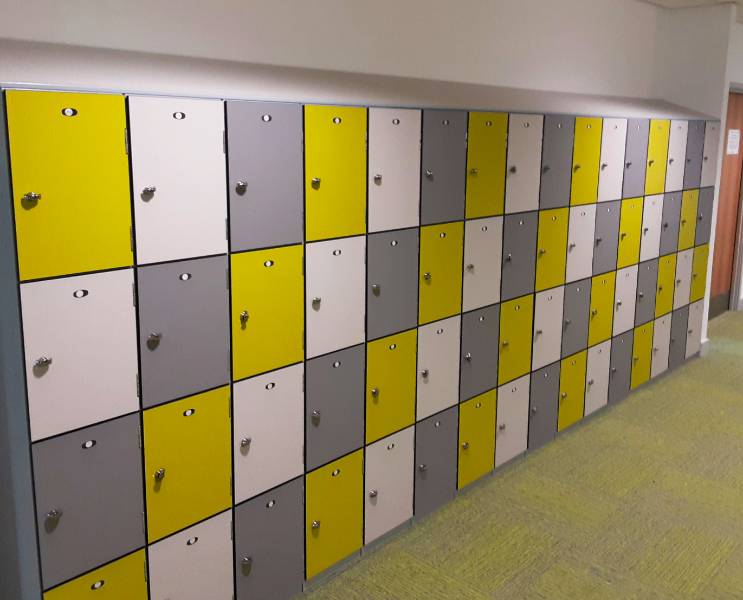

Laminate Lockers - Wet Area

Verified by manufacturer 4 months ago

One compartment

Helmsman Variant:

Heavy-duty lockers suitable for wet environment.

Jump to:
BOS
+44 (0)1284 530427 Website

Application

Suitable for shower and changing rooms where humidity and chlorine levels are high.

Description

Heavy-duty lockers that can withstand high usage. Manufactured from aluminium and stainless steel with a solid grade laminate door makes this locker ideal for wet environments.


Features and benefits:

  • Can withstand heavy usage.
  • Bespoke sizes available.
  • Durable and robust storage solution.
  • Suitable for leisure centres, spas and commercial facilities.
  • Resistant to casual vandalism.
  • Supplied fully assembled; installation service available.
  • Door frame constructed from stainless steel of press formed channel section.

General information

Color

Black

Blue

Grey

Green

Red

Show more

Finish

Powder-coated

Guidance for specification option:

Frame.

Smooth

Material

Steel

Guidance for specification option:

Frame: Press formed channel section.

Aluminium

Guidance for specification option:

Body.

Laminate

Guidance for specification option:

Door: Solid grade.

Shape

Rectangle

Length

300 mm

450 mm

Width

300 mm

380 mm

Height

1800 mm

1775 mm

Warranty description

One year

Guidance for specification option:

Other options available, consult with the manufacturer.

Uniclass

Pr_40_30_87_48 LockersPrimary

CAWS

N10/10 Purpose-made

N10/220 Lockers

Specification data - Lockers

Locker type

Heavy duty laminate locker for wet environments.

Dimensions

1775 x 300 x 300 mm.

Material

Solid grade laminate (SGL) door and stainless steel frame.

Finish

Powder coated, smooth.

Guidance for specification option:

Frame.

Colour

Apple.

Black.

Cherry.

Forest.

Ice.

Orange.

Pink.

Purple.

Rockpool.

Royale.

Skye.

Smoke.

White.

Yellow.

RAL.

Guidance for specification option:

Insert requirements.

FireRating

Euroclass C/BS Class 1.

Guidance for specification option:

Standard for SGL; not available for CDF or steel carcass.

Locking

Combination lock.

Latch lock.

Guidance for specification option:

Standard.

Refund/ collect lock.

Ten-disc tumbler cam lock.

Guidance for specification option:

Standard.

Hinges

Sprung.

Unsprung.

Guidance for specification option:

Standard.

Numbering

Not required.

Engraving.

Recessed.

Guidance for specification option:

Oval laminated number plate

Shelves

Not required.

Required.

Stands/ seats

Not required.

Stands plain bung.

Stands with adjustable feet.

Stands with seats.

Guidance for specification option:

Adjustable feet.

Sloping top

Not required.

Required.

Guidance for specification option:

1:3 gradient; recommended where user may leave items on top of lockers.

End panels

Not required.

Required.

Guidance for specification option:

For aesthetic appearance and to protect row ends.

Hooks

Nylon.

Guidance for specification option:

Supplied with nylon hooks on each side of the compartment (only for one and two compartment lockers).

Accessories

Not required.

Numbering.

Guidance for specification option:

Each door is complete with a aluminium plate with engraved numbers. Plate numbered to suit number on patron key number disc or wrist strap. Optional to have Braille numbering available.

Stands / seats.

Guidance for specification option:

Stand frames are manufactured from 40 mm electric resistance welded (ERW) steel tube, zinc plated and coloured. Seats are manufactured from ash hardwood, finished with two coats catalysed lacquer, or solid grade laminate (SGL).

Wrist bands.

Guidance for specification option:

Available in a variety of colours. Consult manufacturer for information.

Plinth.

Guidance for specification option:

Whilst the locker can be mounted straight to the floor, the manufacturer recommends they be raised slightly above floor level.

Show more

Opening size

Full length.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Steel, Aluminium

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Literature

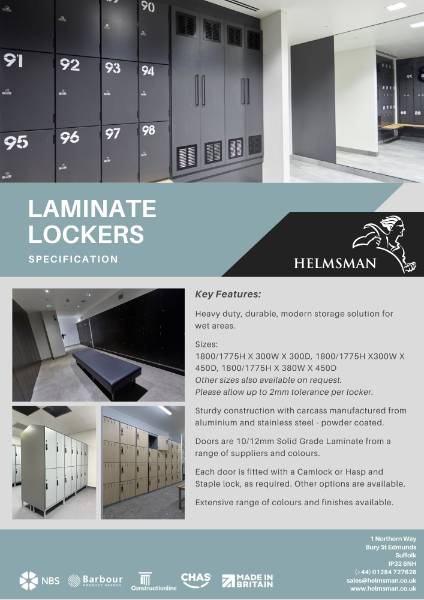

Laminate Lockers - Wet Area

Laminate Lockers - Wet Area

Helmsman Education Brochure

Helmsman Education Brochure

Helmsman Leisure Brochure

Helmsman Leisure Brochure

Helmsman Workplace Brochure

Helmsman Workplace Brochure

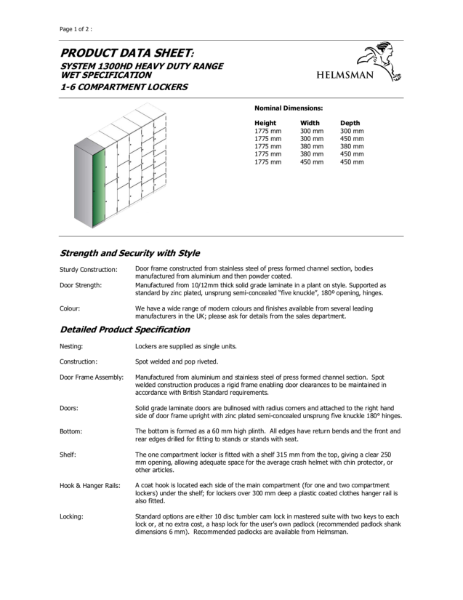

Product Data Sheet - Wet Specification Laminate Lockers

Product Data Sheet - Wet Specification Laminate Lockers

Case studies

Ipswich Town Football Club Project

Ipswich Town Football Club Project

The Warwick School Makeover Project

The Warwick School Makeover Project

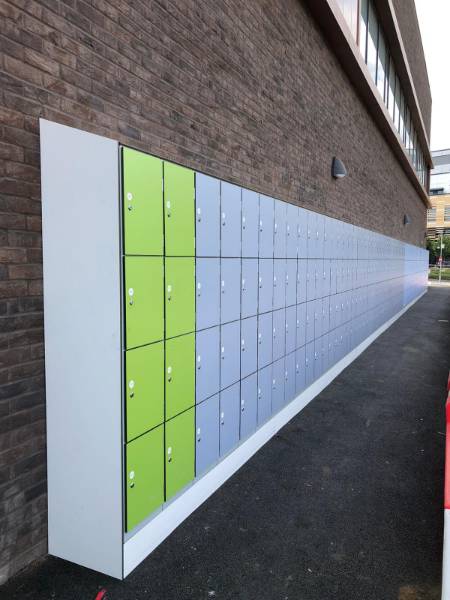

Outdoor Lockers at Wren Community Hub, Enfield
