Lago Washtrough - Washtrough
Verified by manufacturer 8 days ago

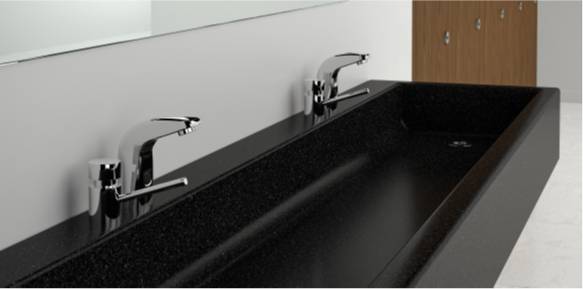

Lago Washtrough with Cantilever Brackets
Lago Washtrough with Cantilever Brackets
Thermoformed solid surface washtrough available in a range of trough and underpanel finish options. Complete with a flat bed design, giving a sleek and modern look while facilitating easy cleaning.
Application
Particularly suitable for busy washroom environments such as:
- Offices.
- Hotels.
- Airports.
- Leisure facilities.
Description
Lago solid surface thermoformed washtrough ensuring resilience against everyday use while adding a touch of sophistication. The flat bed design enhances the washtrough’s sleek and modern look, while facilitating easy cleaning and maintenance.
Meticulously crafted through the thermoforming process, the material is heated and shaped to produce a trough with minimal internal joints.
Features and benefits:
- Minimal internal joints for easy maintenance.
- Depths for deck mounted and wall mounted taps including slim designs.
- 12 standard and 10 premium solid surface finish options.
- Range of underpanel options in 34 colour options or cantilever brackets.
- Available wall hung with cantilever brackets or with PDQ vanity underframe which arrives on site with factory assembled galvanised steel frame.
- Options for vanity ends.
- Height options available for different users including for adults, juniors, infants and nurseries.
General information
Color | Other Manufacturer guidanceConsult Sylan's standard colour range. |
Finish | Smooth |
Material | Solid surface High pressure laminate (HPL) Solid grade laminate (SGL) Melamine Wood |
Shape | Rectangle |
Length | Bespoke Guidance for specification option: Maximum length in one section: 3000mm |
Width | 525 mm Guidance for specification option: Standard depth with deck mounted taps. 400 mm Guidance for specification option: Slim depth with deck mounted taps. 475 mm Guidance for specification option: Standard depth with wall mounted taps. 350 mm Guidance for specification option: Slim depth with wall mounted taps. Manufacturer guidanceDepth |
Height | 500 mm Guidance for specification option: Nursery standard vanity height. 700 mm Guidance for specification option: Infant standard vanity height. 750 mm Guidance for specification option: Junior standard vanity height. 800 mm Guidance for specification option: Adult standard vanity height. |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins N10/145 Vanity and washroom furniture |
Specification data - Wash troughs
Classification data | |
Form | Wall-mounted. |
Stations | Manufacturer guidanceConsult manufacturer and insert requirements. |
Materials | |
Body | Solid surface. |
Finish and colour | Manufacturer guidance12 standard solid surface finishes or ten premium solid surface finishes. Consult manufacturer for more details and insert requirements. |
Size | Manufacturer guidanceStandard:
Slim design.
Insert requirements. |
Water supply, overflow and waste holes | |
Water supply | One tap hole in backplate at each user position. |
Overflow | None. |
Waste | Manufacturer guidanceConsult manufacturer and insert requirements. |
Integral accessories | Downstand. Guidance for specification option: 200 mm. |
Flashgap | Not applicable. |
Flashgap | Not applicable. |
Underpanel | Not applicable. |
Underpanel finish | Not applicable. |
Support | Manufacturer's standard. Guidance for specification option: Consult manufacturer for more details. |
Stop ends | Not required. Required. Manufacturer guidanceVanity ends for trough and underpanels. |
Height | 800 mm. Guidance for specification option: Adult. 750 mm. Guidance for specification option: Junior. 700 mm. Guidance for specification option: Infant. 500 mm. Guidance for specification option: Nursery. |
Sustainability data
Manufacturing plant location | Guidance for specification option: Trough Guidance for specification option: Underframe |
Material | Solid surface High pressure laminate (HPL) Solid grade laminate (SGL) Melamine Wood |
Literature
Sylan Brochure
CPD materials
Luxury Washroom Design
