Cascata Washtrough - Washtrough
Verified by manufacturer 5 days ago

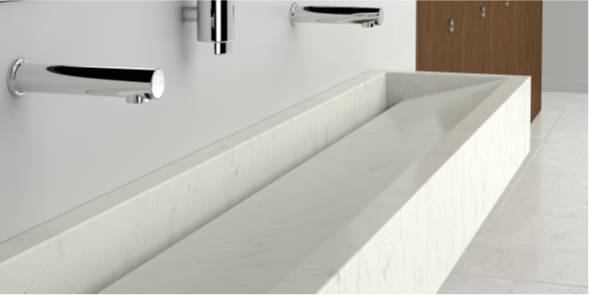

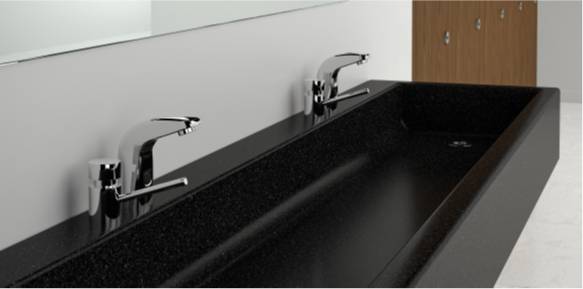

Cascata Washtrough with Cantilever Brackets
Cascata Washtrough with Cantilever Brackets
Solid surface washtrough available in a wide range of trough and underpanel finish options complete with concealed waste design for enhanced aesthetics while ensuring hygiene standards.
Application
Suitable for applications in a range of environments including:
- Spas.
- Exclusive leisure centres.
- Hotels.
- High-end business establishments.
Description
Cascata solid surface washtrough, crafted with meticulous attention to detail seamlessly integrating a concealed waste design for enhanced aesthetics while ensuring hygiene standards are upheld in the washroom environments.
Features and benefits:
- 22 trough finish options.
- Range of underpanel options in 34 colour options.
- Options for vanity ends.
- Depths for deck mounted and wall mounted taps.
- Available wall hung with cantilever brackets or with PDQ vanity underframe which arrives on site with factory assembled galvanised steel frame.
- Height options available for different users including for adults, juniors, infants and nurseries.
General information
Color | Other Guidance for specification option: Consult Sylan's standard colour range. |
Finish | Smooth |
Material | Solid surface High pressure laminate (HPL) Solid grade laminate (SGL) Melamine Wood |
Shape | Rectangle |
Length | Bespoke Guidance for specification option: Maximum length: 3000mm. |
Width | 475 mm Guidance for specification option: With wall mounted taps 525 mm Guidance for specification option: With deck mounted taps Manufacturer guidanceDepth |
Height | 500 mm Guidance for specification option: Nursery standard vanity height. 700 mm Guidance for specification option: Infant standard vanity height. 750 mm Guidance for specification option: Junior standard vanity height. 800 mm Guidance for specification option: Adult standard vanity height. |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins N10/145 Vanity and washroom furniture |
Specification data - Wash troughs
Classification data | |
Form | Wall-mounted. |
Stations | Manufacturer guidanceConsult manufacturer and insert requirements. |
Materials | |
Body | Solid surface. |
Finish and colour | Manufacturer guidance12 standard solid surface finishes or ten premium solid surface finishes. Consult manufacturer for more details and insert requirements. |
Size | Manufacturer guidanceDepth: 475 mm (with deck mounted taps) or 425 mm (with wall mounted taps). Max length (in one section): 3000 mm. Insert requirements. |
Water supply, overflow and waste holes | |
Water supply | One tap hole in backplate at each user position. |
Overflow | None. |
Waste | Concealed waste. |
Integral accessories | Downstand. Guidance for specification option: 200 mm. |
Flashgap | Not applicable. |
Flashgap | Not applicable. |
Underpanel | Not applicable. |
Underpanel finish | Not applicable. |
Support | Manufacturer's standard. Guidance for specification option: Consult manufacturer for more details. |
Stop ends | Not required. Required. Manufacturer guidanceVanity ends for trough and underpanels. |
Height | 800 mm. Guidance for specification option: Adult. 750 mm. Guidance for specification option: Junior. 700 mm. Guidance for specification option: Infant. 500 mm. Guidance for specification option: Nursery. |
Sustainability data
Manufacturing plant location | |
Material | Solid surface High pressure laminate (HPL) Solid grade laminate (SGL) Melamine Wood |
