Kvadrat Soft Cell - Acoustic Ceiling/ Wall Panels

Name: Kvadrat Soft Cell - Acoustic Ceiling/ Wall Panels
Brand: Kvadrat Ltd
SKU: uQ56FxpGDizWKgJUYG5SV1

Verified by manufacturer 1 month ago

Broadline - Chamfered Edge

Kvadrat Ltd

Third party certifications:

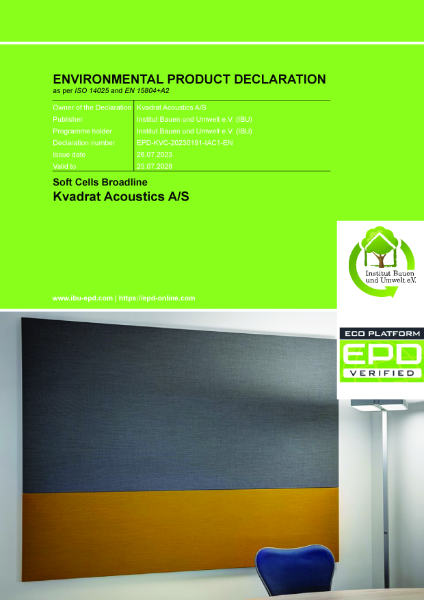

EPD
Certificate type

Acoustic ceiling and wall panel system.

Jump to:

BOS

+44 (0)330 838 0000 Website

Application

For interior wall and ceiling applications.

Description

Soft Cells pre-fabricated panels incorporate an acoustic behind a textile layer. Customizable acoustic absorption from Class E to class A sound absorption as per ISO 1165.

Soft Cells acoustic panels bring acoustic comfort, aesthetic excellence and tactile surfaces into a space. In doing so, they provide a solution to the acoustic challenges of modern architecture and promote productivity.

Made from premium materials, the components of Soft Cells panels are designed to combine exceptional durability and aesthetic excellence. The patented tensioning mechanism inside Soft Cells panels ensures they are unaffected by temperature or humidity.

Features and benefits:

Class A to Class E broadband sound absorption as per ISO 1165.
Patented tensioning mechanism prevents sagging.
Folds and creases around corners are eliminated by a special insert, which secures the excess fabric.
Standard set of textiles have been tested for sound absorption according to ISO 11654/EN ISO 354.

General information

Color	Beige Black Blue Brown Cream Green Grey Ivory Orange Pink Purple Red White Yellow Other Show more
Finish	Other
Material	Fabric Aluminium
Shape	Rectangle Square Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Ss_25_25_75_05 Acoustic panel lining systemsPrimary
CAWS	K13/160 Proprietary K13/160 Proprietary K13/170 Acoustic panel lining K13/170 Acoustic panel lining

Specification data - Acoustic panel lining systems

System performance	Acoustic performance.
Battens	Not required.
Acoustic insulation	38 mm mineral-based absorber.
Panelling	-

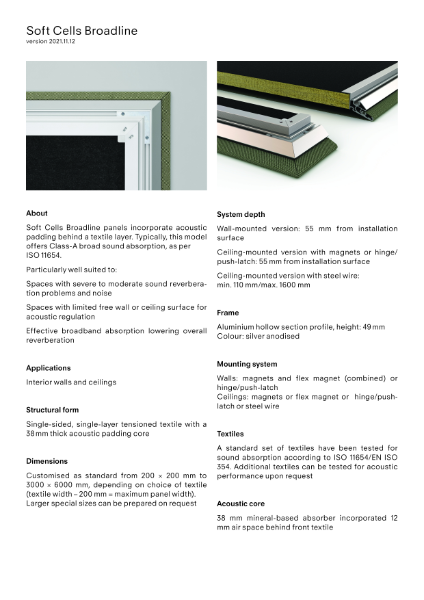

Type	Broadline panels.
Surface material	Fabric facings.
Surface finish	Kvadrat Casa. Kvadrat Casa Time. Kvadrat Mi Casa. Kvadrat Airfield. Kvadrat Tacti Tech. Kvadrat Tacti Duo. Kvadrat Tacti Uni. Kvadrat Kuria. Kvadrat Retwins. Kvadrat Primus. Kvadrat Fiord CS Shiny. Kvadrat Steelcut CS shiny. Kvadrat Toto. Kvadrat Other. Guidance for specification option: Consult manufacturer and insert requirements.
Fasteners	Ceiling - Hinge and Pushlatch on Unistrut grid. Ceiling - Magnets on Unistrut grid. Ceiling - Suspension Wires. Wall - Flex Magnets. Wall - Hinge and Pushlatch.
System accessories	- Manufacturer guidance Consult manufacturer and insert requirements or omit.

Profile	49 mm hollow section profile.
Frame	Silver anodized aluminium.
Edge detail	Chamfered edge.
Dimensions	- Manufacturer guidance Consult manufacturer and insert requirements. Customized as standard from 200 × 200 mm to 3000 × 6000 mm, depending on choice of textile (textile width – 200 mm = maximum panel width). Larger special sizes can be prepared on request.
Cavity	12 mm air cavity between the textile and absorbent.
Acoustic performance	To ISO 11654, Class A.
