Kvadrat Tracks - Acoustic Wall System
Verified by manufacturer 2 months ago
Frame Profile: 12 mm PVC Free Polymer Extrusion
Frame Profile: 12 mm PVC Free Polymer Extrusion
EPD
Certificate type
Acoustic solution to wall finishes and flexibility with on-site fabricated installation.
Application
For interior wall applications. Particularly well suited to:
- Spaces with severe to moderate need for sound absorption.
- Spaces with large free wall surfaces.
- Complex visual design layout and late changes as the tracks are built on-site.
Description
Kvadrat Acoustics PVC free tracks is a site–fabricated acoustic wall system, that stretches textile over semi-rigid acoustic padding to control sound. The design allows for free-form curves, decorative reveals or three dimensional surfaces.
Features and benefits:
- Depending on configuration, typically this version offers Class-A to Class C sound absorption, as per ISO 11654.
- Low VOC rated.
- 100% recyclable.
- Flexible and easily adjustable during installation.
- Excellent noise reduction.
- Structurally rigid.
- Bespoke shape and sizes, max. width dependent on the width of textile.
- Site built for maximum flexibility.
- Cost effective.
General information
Color | Other |
Finish | Other |
Material | Fabric Wool Nylon Polymer |
Shape | Rectangle Square Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | K13/160 Proprietary K13/160 Proprietary K13/170 Acoustic panel lining K13/170 Acoustic panel lining |
Specification data - Acoustic panel lining systems
System performance | Acoustic performance. |
Battens | Not required. |
Acoustic insulation | Mineral based acoustic absorber.Guidance for specification option: 50 mm – density 96 kg/m³. |
Panelling | |
Type | Tensioned fabric faced wall panels. |
Surface material | Fabric facings. |
Surface finish | Manufacturer guidanceConsult manufacturer and insert requirements.
|
Fasteners | Non-demountable mechanical fixing. |
System accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Profiles | 12 mm PVC free polymer extrusion. |
System depth | 12 mm. Guidance for specification option: 12 mm from installation surface including fixing components dependent of face textile. |
Edge detail | Square edge. |
Dimensions | Manufacturer guidanceConsult manufacturer and insert requirements. Bespoke shape and sizes, max. width dependent on the width of textile. |
Cavity | 2 mm air cavity between the textile and absorbent. |
Fire performance | To EN 13 501–1, B-s2-d0. Guidance for specification option: Textile to be treated to meet Class B to EN 13501 or to 1 or class 0 as per BS 476 Part 6/7 if not inherently flame retardant. |
Acoustic performance | To ISO 354, class C (0.55 αw / 0.6 NRC). |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Netherlands |
Material | Fabric Wool Nylon Polymer |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 6.6 kg CO₂ eq/m² |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 42 % Guidance for specification option: Minimum 42% recycled material core. |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
EPD

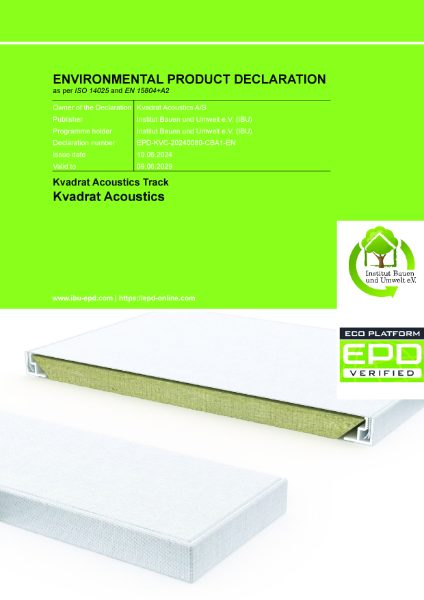

Kvadrat Acoustics Track - Environmental Product Declaration
Literature

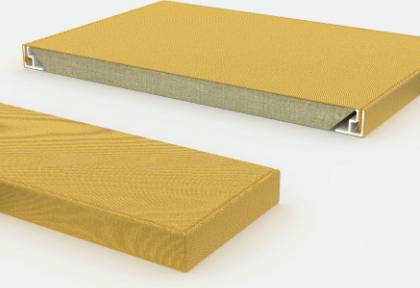

Kvadrat Acoustics - PVC Free Tracks
